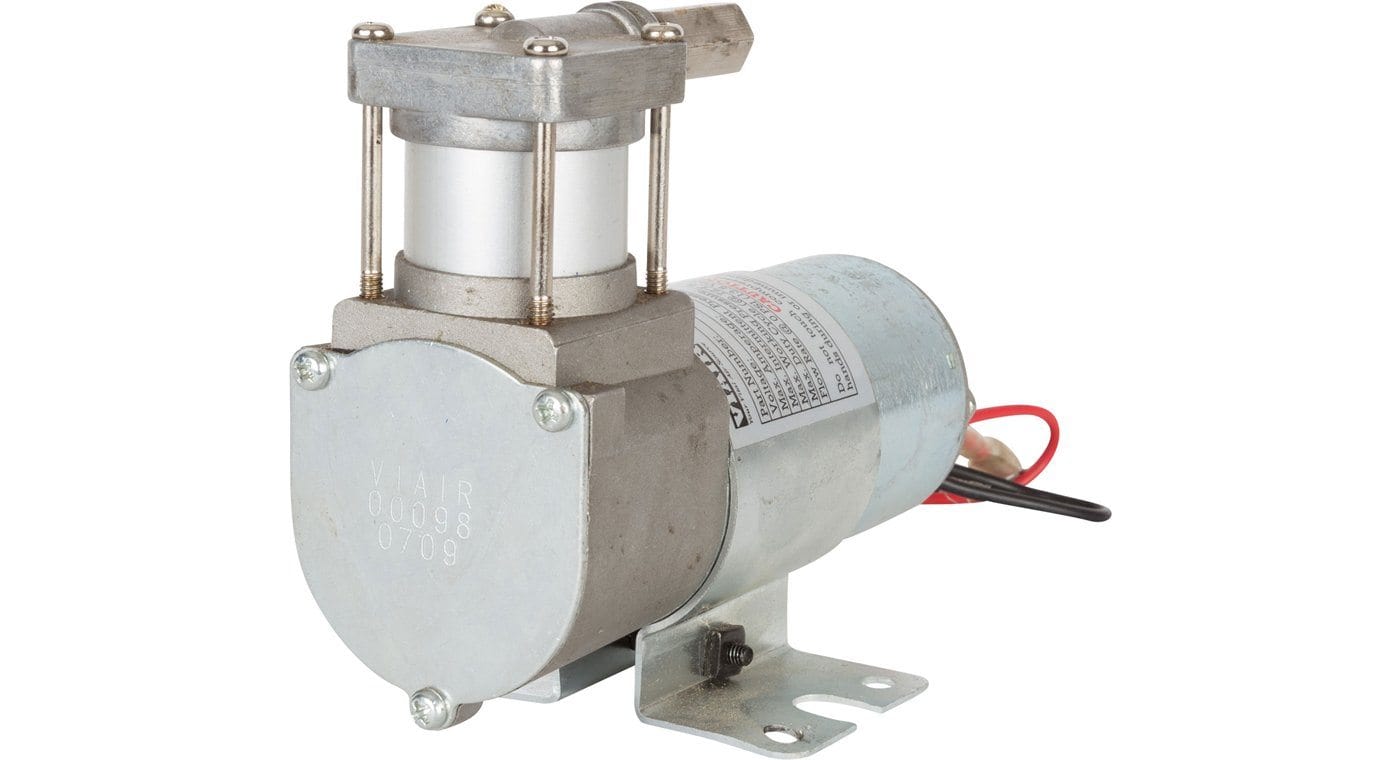

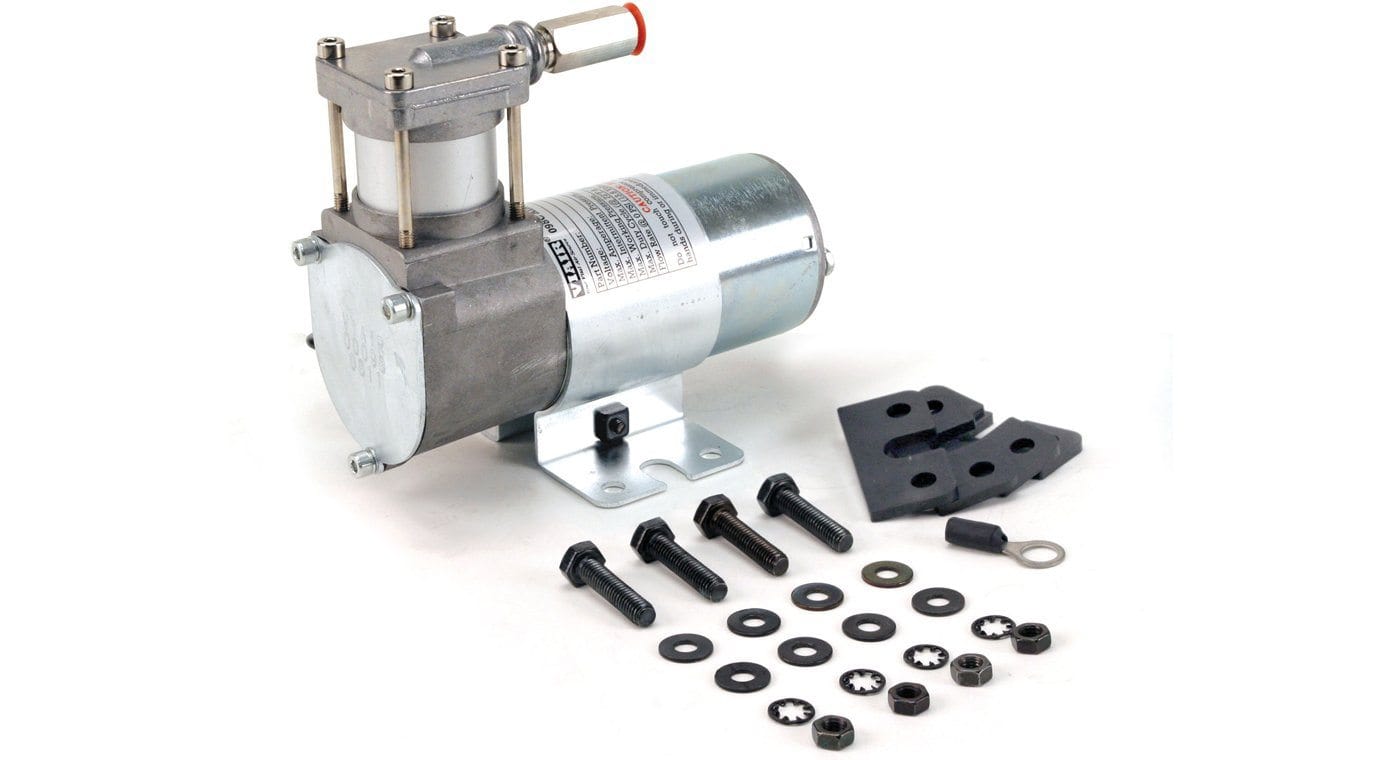

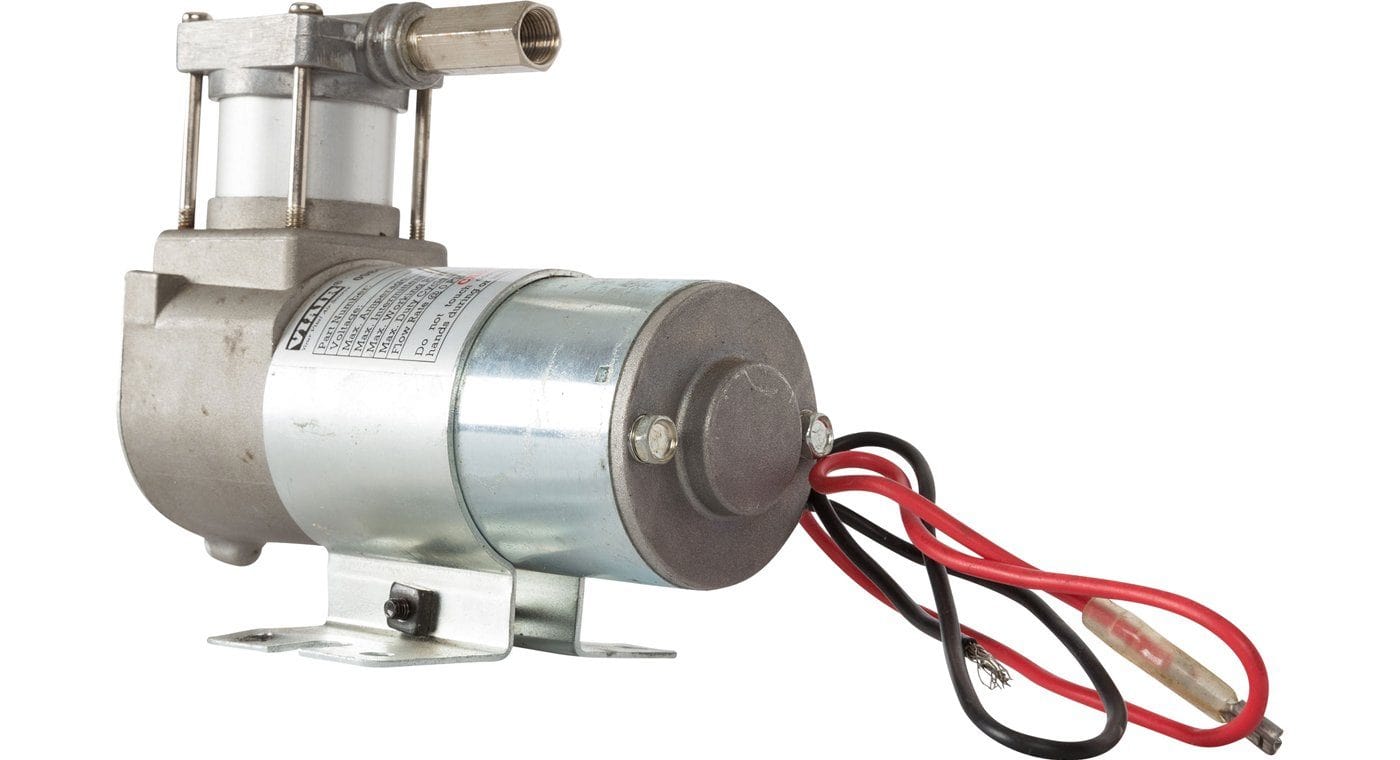

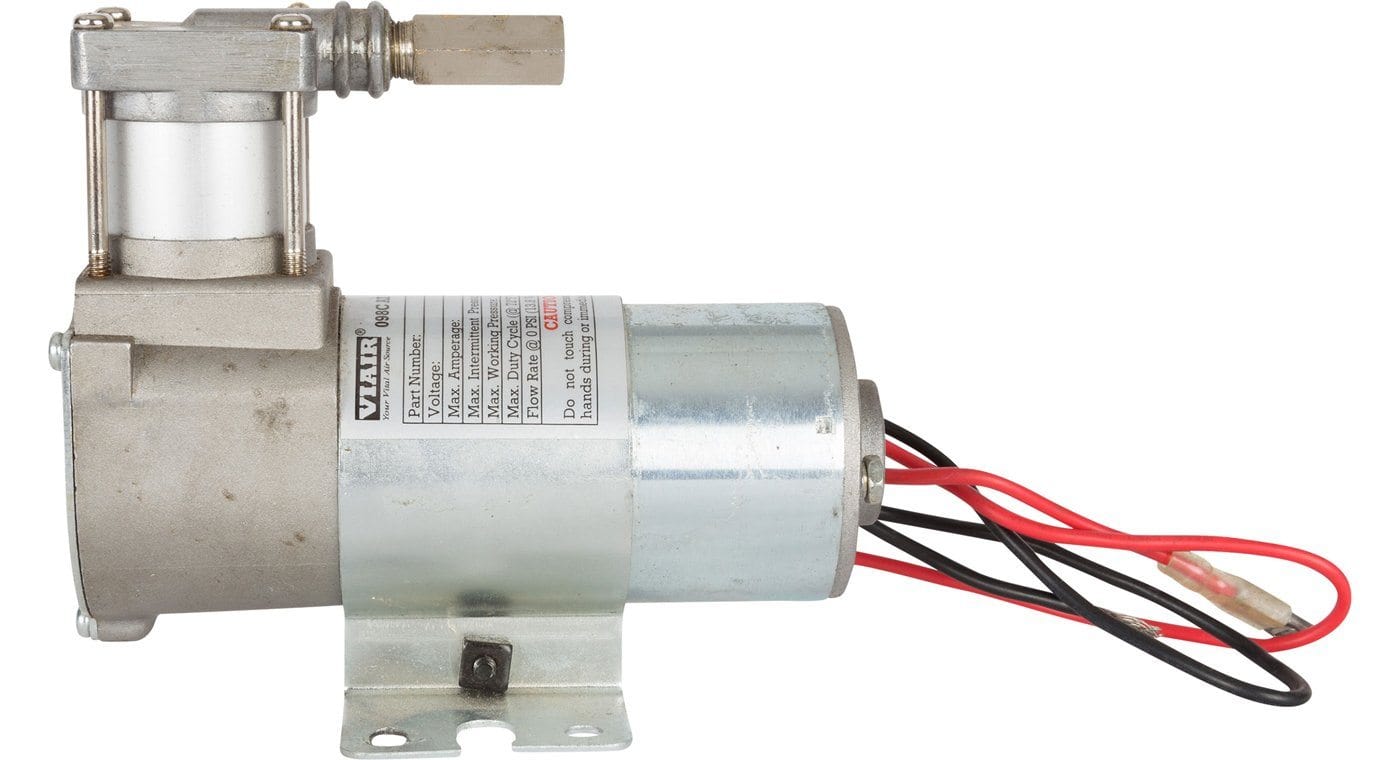

Meet the Viair 98 Silver Air Compressor—a lightweight, compact powerhouse perfect for all your light-duty pneumatic needs. Its small size makes it ideal for applications needing a minimal install footprint, like motorcycle suspension and air lockers. The Viair 98C dishes out 1.53 CFM and can recharge a 1-gallon tank from 90-120 PSI in a blazing-fast 45 seconds, all while drawing just 12 amps. Plus, it comes with an Omega Bracket for even easier installation!
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.53 | 7 | 0 | 43.5 | 7 |
| 10 | 1.00 | 9 | 1.0 | 28.0 | 9 |
| 20 | 0.95 | 10 | 2.0 | 25.5 | 11 |
| 30 | 0.90 | 11 | 3.0 | 22.7 | 11 |
| 40 | 0.85 | 11 | 4.0 | 20.7 | 12 |
| 50 | 0.77 | 12 | 5.0 | 18.3 | 12 |
| 60 | 0.72 | 12 | 6.0 | 16.3 | 12 |
| 70 | 0.65 | 12 | 7.0 | 13.7 | 12 |
| 80 | 0.60 | 12 | 8.0 | 11.7 | 12 |
| 90 | 0.54 | 12 | 9.0 | 10.0 | 11 |
| 100 | 0.48 | 12 | |||
| 110 | 0.44 | 12 | |||
| 120 | 0.39 | 12 | |||
| 130 | 0.35 | 11 |
* Supply Voltage: 13.8 Volts
| 0.5 GALLON TANK | FILL RATE |
|---|---|
| 0 to 105 PSI | 50 sec. (± 05 sec.) |
| 85 to 105 PSI | 15 sec. (± 03 sec.) |
| 0 to 120 PSI | 1 min. 05 sec. (± 05 sec.) |
| 90 to 120 PSI | 21 sec. (± 03 sec.) |
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 40 sec. (± 10 sec.) |
| 85 to 105 PSI | 30 sec. (± 05 sec.) |
| 0 to 120 PSI | 2 min. 10 sec. (± 10 sec.) |
| 90 to 120 PSI | 45 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
