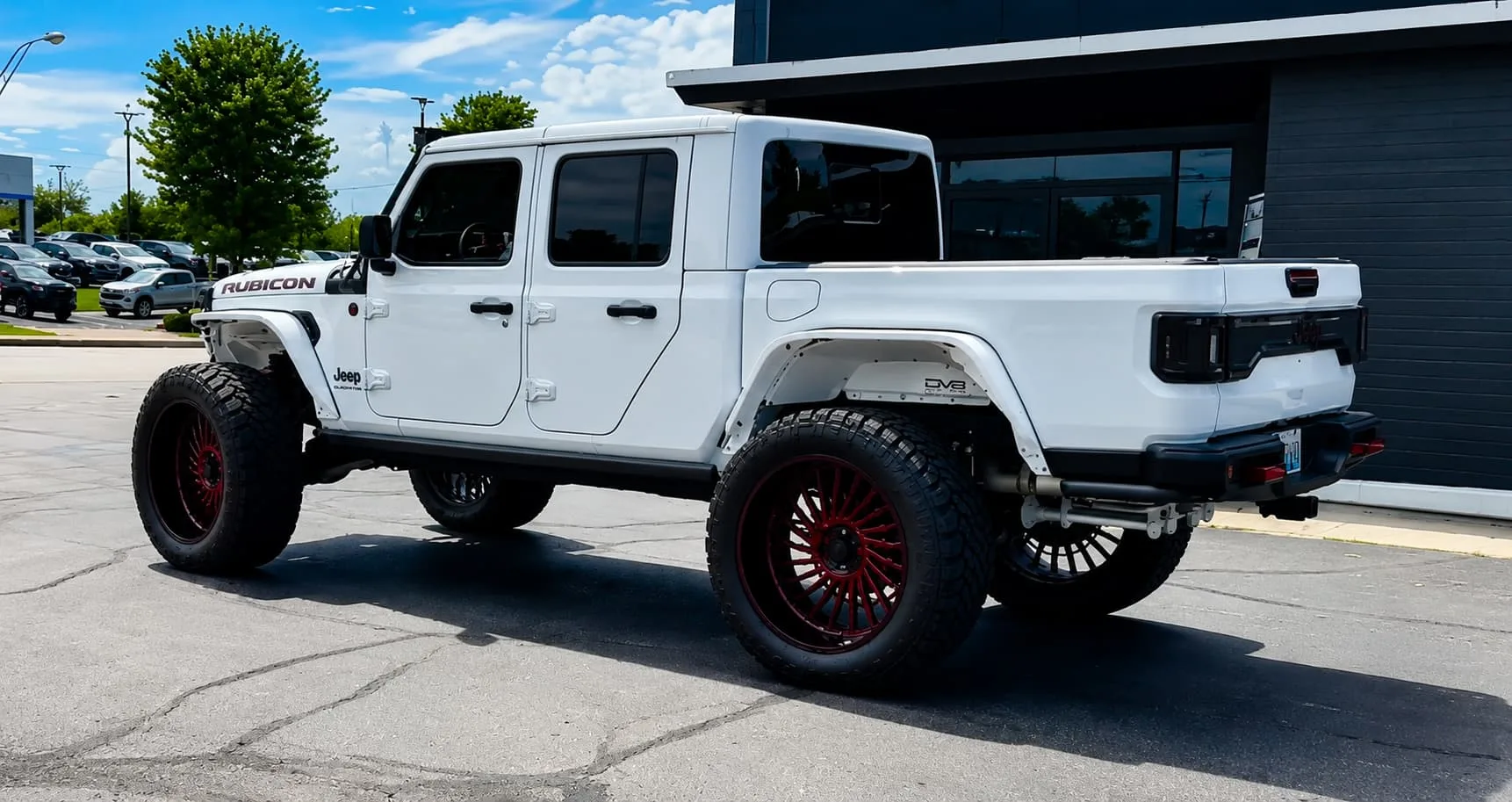

Patrick's 2024 Jeep Gladiator with Spare Tire Delete Kit train horn install exterior photo 1

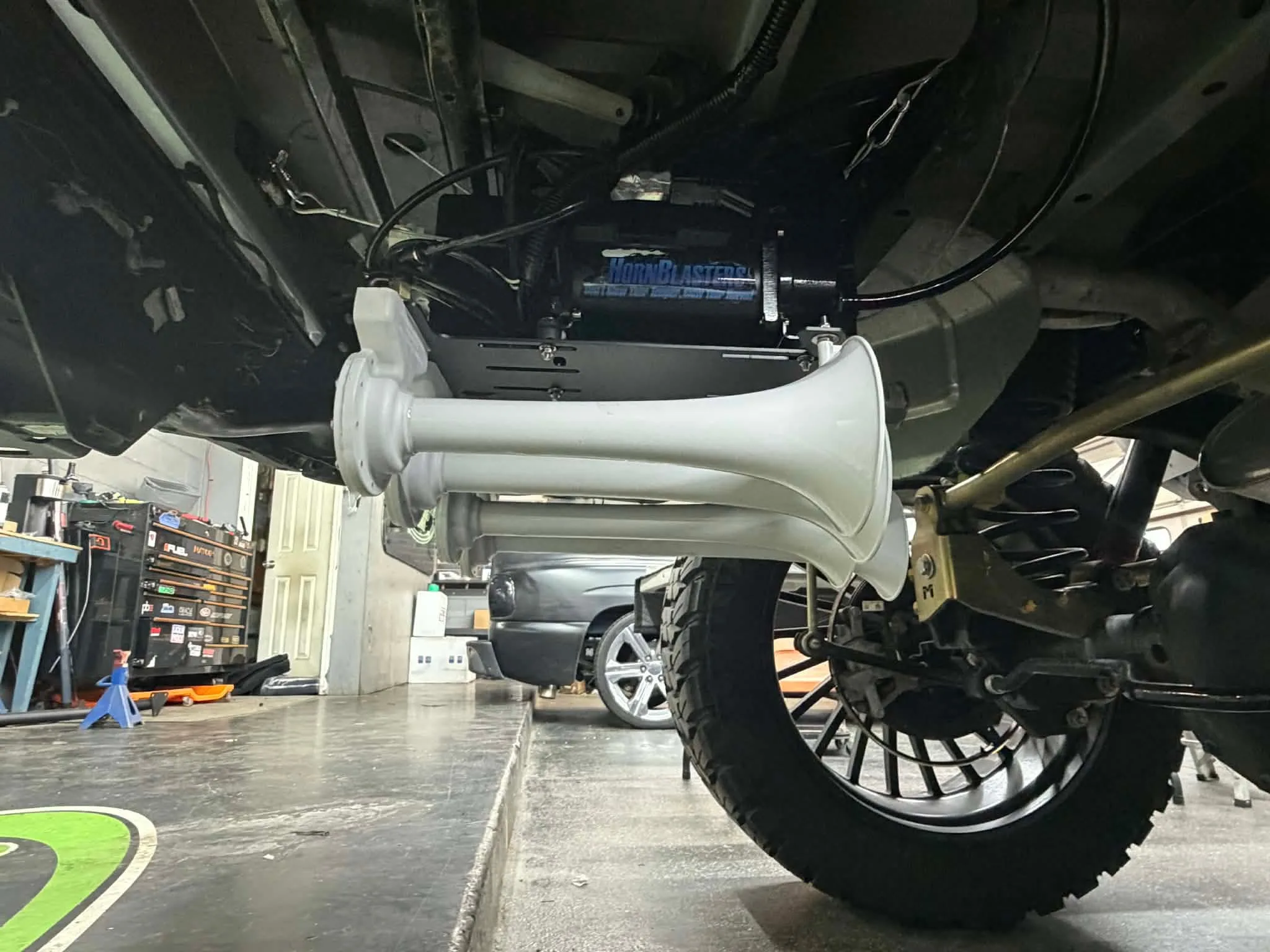

Patrick's 2024 Jeep Gladiator Spare Tire Delete Kit install gallery photo 2

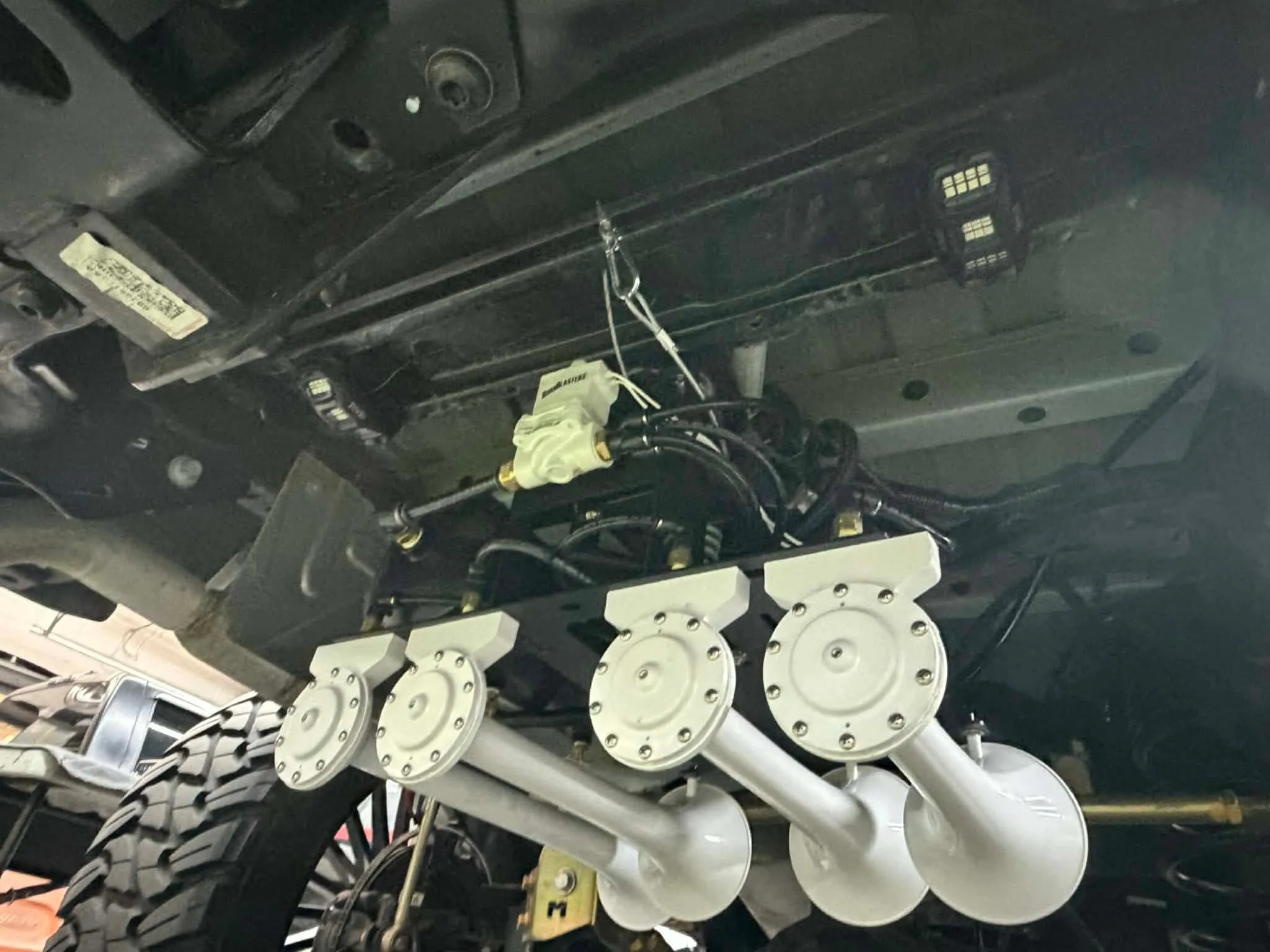

Patrick's 2024 Jeep Gladiator train horn installation detail with Spare Tire Delete Kit photo 3

01 / 04

Video

Progress

Featured Install

Spare Tire Delete® Kit

Patrick's 2024 Jeep Gladiator

Sound Sample

0:00 0:00

Owner Patrick

Year 2024

Vehicle 2024 Jeep Gladiator

Patrick H. transformed his 2024 Jeep Gladiator with the HornBlasters Spare Tire Delete® Kit 232 Medium Duty, creating a clean, factory-looking installation while adding the unmistakable sound of real train horns. Mounted in the spare tire location, the kit keeps everything tucked neatly out of sight without sacrificing cargo space—a practical layout for a midsize pickup that still needs the bed for daily driving and off-road gear.

Patrick chose white Shocker XL train horns to match the white finish on his Gladiator, giving the setup a custom look that is as impressive as it is functional. On the product page that combination is Medium-Duty (Quiet & Light Pneumatic Use) / White—part HK-S4-232-STDK. The package pairs HornBlasters’ 14-gauge powdercoated spare-delete bracket with one four-bell Shocker XL, a 2-gallon six-port tank, and the 3Q compressor. HornBlasters lists 150 PSI operation with 110 PSI restart, roughly 3–5 seconds of honk time, recovery in under two minutes, and about 20 amps max draw.

Whether it is daily driving, off-road, or turning heads at events, the 232 Medium Duty Spare Tire Delete Kit delivers powerful performance with a clean, OEM-style spare-location install on this Gladiator. HornBlasters designs the bracket for most full-size and mid-size trucks; confirm spare hardware and ground clearance on a 2024 Gladiator before you order, then follow the instructions so warranty coverage stays intact.

Feature Highlights

Spare Tire Delete® Kit 232 Medium Duty (HK-S4-232-STDK): Shocker XL, 2-gallon tank, 3Q compressor, and 14-gauge spare-delete bracket in one box
This 2024 Jeep Gladiator install: spare-location mounting that stays out of sight and preserves bed/cargo space
White Shocker XL bells chosen to match Patrick’s white Gladiator—select White on the configurator (stealth black is the other color)
HornBlasters lists 150 PSI / 110 PSI restart, ~3–5 seconds of honk, recovery in under two minutes, and ~20 amps max draw
Need faster recovery for tires or tools? Step up to Heavy-Duty HK-S4-244K-STDK (1NM compressor) on the same product page

HornBlasters Shocker S6 544K Nightmare Edition Train Horn Kit

PRODUCT

PRICE

Sold out

UP TO 1500% LOUDER

UNLIMITED HONKING

ZERO
DELAY

CAPABLE ONBOARD AIR SYSTEM

232 MEDIUM DUTY SPARE TIRE DELETE FOR YOUR GLADIATOR

The Spare Tire Delete® Kit 232 Medium Duty delivers the same clean spare-location install and authentic locomotive blast Patrick H. showcased on his 2024 Jeep Gladiator. Choose Medium-Duty and White on the product page, confirm spare-tire hardware and clearance, then follow HornBlasters’ instructions so warranty coverage stays intact.

SPECIFICATIONS

Part Number	HK-S4-232-STDK
Honk Time	3-5 Seconds
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Voltage	12-Volt DC
Horn	Shocker 4 Train Horn Kit
Horn Material	High-Impact ABS
Horn Measurements	№ 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm) № 3 14.75″ (374.65 mm) № 4 12.75″ (323.85 mm)
Horn Flare	5″ (127 mm)
Air Tank	HornAir 2-gallon 6 port air tank
Tank Length	17" (431.8 mm)
Tank Diameter	6" (152.4 mm)
Tank Height	7" (177.8 mm) (With Legs)
Tank Weight	10 lb (4.54 Kg)

Air Compressor	HornBlasters 3Q air compressor
Max amperage	20 Amps
Maximum duty cycle	100% @ 100 PSI
Flow Rate @ 0 PSI	1.41 CFM
Compressor length	10.1″ (256.54 mm)
Compressor width	4.5″ (114.3 mm)
Compressor height	7″ (177.8 mm)
Bracket Length	19"
Bracket Width	19"
Bracket Height	7.5"
Bracket Weight	6 lbs
Assembled Length	21"
Assembled Width	23"
Assembled Height	13"
Assembled Weight	40 lbs

FILL RATES

12-VOLT COMPRESSOR
2.0 GALLON TANK	FILL RATE
0 to 150 PSI	3 min. 59 sec. (± 10 sec.)
110 to 150 PSI	1 min. 33 sec. (± 05 sec.)

Frequently Asked Questions

It is the Medium-Duty configuration on the Spare Tire Delete® Kit page: part HK-S4-232-STDK. You get the 14-gauge spare-delete bracket, a white or stealth black Shocker XL train horn (one four-bell horn), a 2-gallon six-port tank, the HornBlasters 3Q compressor, valve, gauge, air line, wiring, and hardware. Patrick H.’s 2024 Gladiator uses that recipe with white bells to match the Jeep.

Patrick’s build shows a clean, factory-looking spare-location install that does not eat cargo space. HornBlasters lists the bracket for most full-size and mid-size trucks—it is not a Gladiator-only SKU, and it is not 100% plug-and-play on every vehicle. Many Gladiators carry the spare on the tailgate rather than an under-bed winch, so measure spare hardware, exhaust, fuel tank, and ground clearance against the assembled package (~21″ × 23″, about 40 lb) before you order. Contact HornBlasters if you are unsure.

On the Spare Tire Delete® Kit configurator, choose Medium-Duty (Quiet & Light Pneumatic Use) and White. That is the same 232 Medium Duty white combination Patrick used to match his Gladiator. Stealth black is the other horn color if you want the hardware to disappear.

HornBlasters lists 150 PSI operating pressure, 110 PSI restart, a 2-gallon six-port tank, the 3Q compressor at up to 20 amps, roughly 3–5 seconds of honk time, and recovery in under two minutes on the Spare Tire Delete® Kit product page. Always re-read the live spec tables before ordering.

Patrick’s Gladiator is the 232 Medium Duty kit—quieter 3Q compressor and light pneumatic use, still with Shocker XL tone and a 2-gallon tank. Choose Heavy-Duty HK-S4-244K-STDK on the same page when you want the constant-duty 1NM compressor for quicker recovery and more moderate tool/tire work. Both use the same spare-delete bracket.
