Admiral 544 Train Horn Kit

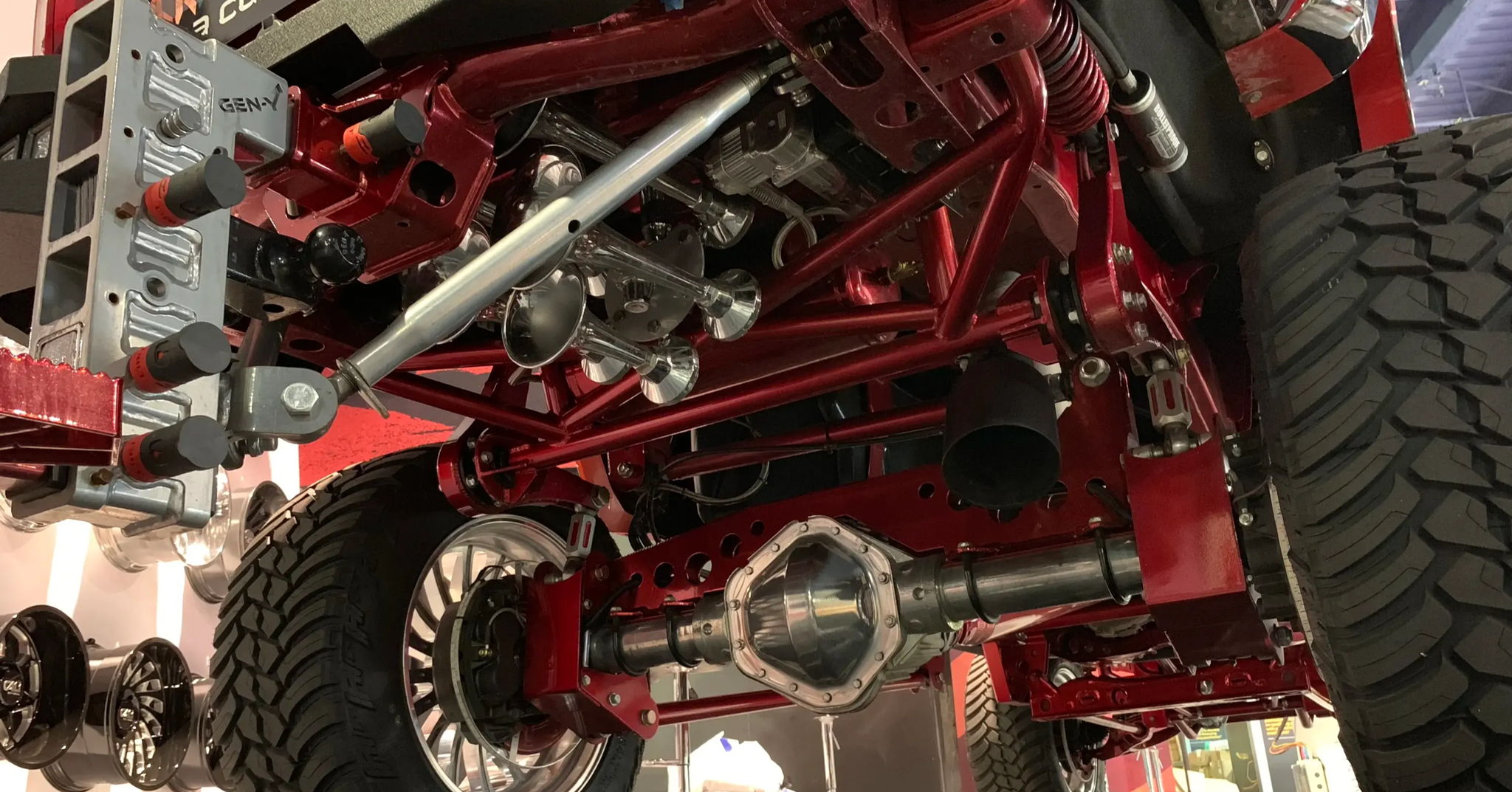

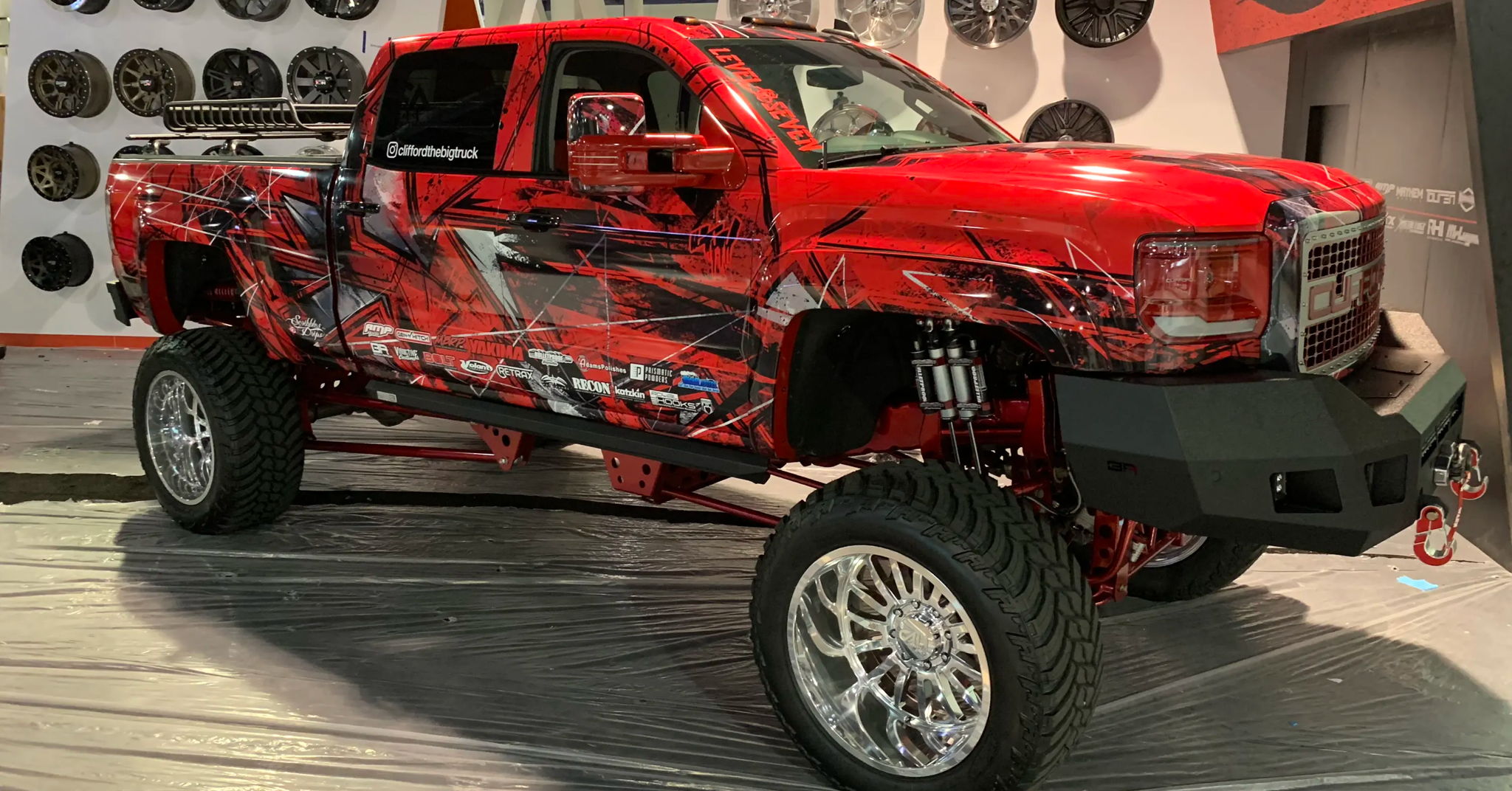

Yes, the Admiral 544 Train Horn Kit is a complete train horn system. It includes the Admiral 5-chime train horn with chrome-plated marine-grade solid brass construction, HornAir 5-gallon 8-port air tank, 1NM Stealth Black compressor, pressure switch, air valve, hoses and fittings, wiring, and all mounting hardware needed for installation. Everything you need is included to get your train horn system up and running right out of the box, making it perfect for show-quality builds like Eddie's SEMA-featured Sierra 2500HD.

The Admiral train horn features a five-chime configuration with chrome-plated marine-grade solid brass construction, delivering an authentic, deep-toned blast that commands attention. The polished chrome finish stands out even in the most elite builds, while the marine-grade durability makes it a versatile choice for land or sea. The horn measures 17" by 16" by 15.5" and weighs 19.8 pounds, providing a compact design with powerful train horn sound that's as visually striking as it is loud.

The Admiral 544 features a 5-gallon 8-port air tank measuring 20.5" by 9.5" by 11.5" and weighing 20 pounds. This tank provides approximately 10-12 seconds of honk time, making it perfect for extended blasts. The system operates at 150 PSI maximum working pressure with automatic restart at 110 PSI. The 1NM Stealth Black compressor fills the tank from 0 to 150 PSI in approximately 6 minutes 45 seconds, with recovery from 110 to 150 PSI taking about 2 minutes, ensuring quick readiness for frequent use.

The Admiral 544 includes a 1NM Stealth Black compressor that operates on 12-Volt DC with a maximum amp draw of 25 amps and provides 1.75 CFM flow rate at 0 PSI with 100% duty cycle at 100 PSI. The compressor measures 10.75" by 4" by 6.75", making it perfect for installations where space is at a premium. This heavy-duty compressor ensures reliable performance for both horn operation and utility functions, delivering thunderous sound with show-quality appearance.

Yes, the onboard air system in the Admiral 544 Train Horn Kit is versatile and can be used for more than just train horns. You can use it to inflate tires and run air tools, adding practical utility to your build. The 5-gallon tank and 1NM Stealth Black compressor provide reliable compressed air for both horn operation and utility functions, making it a dual-purpose system that maximizes the value of your installation while maintaining that premium chrome appearance.
