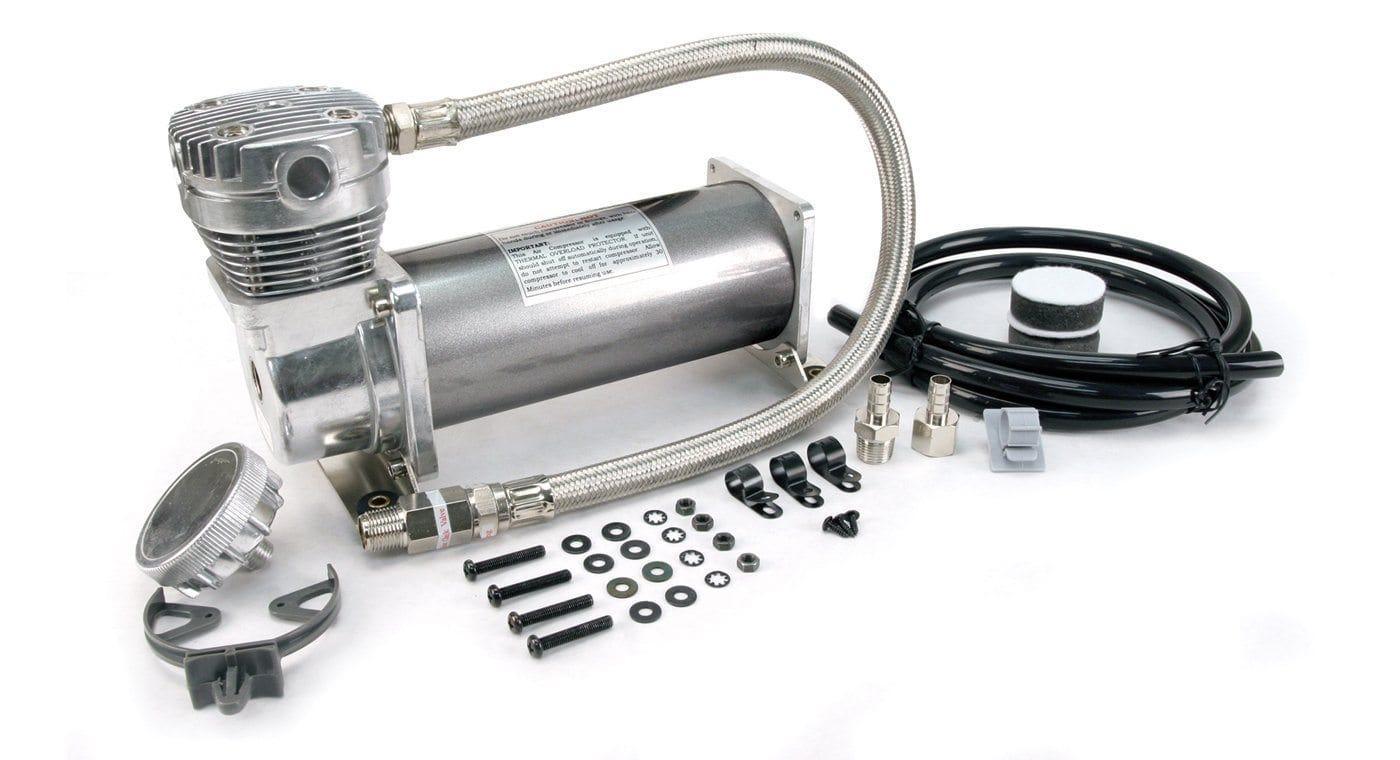

Introducing the Viair 460C Chrome Air Compressor – a powerful and reliable pneumatic tool for all your inflation and air tool needs. With a 150 PSI delivery and the ability to power a 5-gallon tank, it's perfect for any project. The fast recharge time and easy installation make it a cinch to use.
This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.80 | 13 | 0 | 51.0 | 12 |
10 | 1.75 | 14 | 1.0 | 47.6 | 15 |
20 | 1.60 | 16 | 2.0 | 43.3 | 17 |
30 | 1.52 | 17 | 3.0 | 38.2 | 19 |
40 | 1.39 | 19 | 4.0 | 34.0 | 21 |
50 | 1.27 | 20 | 5.0 | 30.5 | 21 |
60 | 1.18 | 21 | 6.0 | 28.1 | 22 |
70 | 1.09 | 21 | 7.0 | 26.4 | 23 |
80 | 1.04 | 22 | 8.0 | 25.0 | 24 |
90 | 0.97 | 22 | 9.0 | 23.0 | 23 |
100 | 0.94 | 23 | 10.0 | 21.0 | 22 |
110 | 0.90 | 24 | |||
120 | 0.86 | 24 | |||
130 | 0.81 | 23 | |||
140 | 0.76 | 22 | |||
150 | 0.72 | 22 |
* Supply Voltage: 13.8 Volts
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 105 PSI | 1 min. 55 sec. (± 10 sec.) |
85 to 105 PSI | 28 sec. (± 05 sec.) |
0 to 145 PSI | 3 min. 02 sec. (± 10 sec.) |
110 to 145 PSI | 59 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 105 PSI | 4 min. 00 sec. (± 10 sec.) |
85 to 105 PSI | 58 sec. (± 05 sec.) |
0 to 145 PSI | 6 min. 25 sec. (± 15 sec.) |
110 to 145 PSI | 2 min. 11 sec.(± 10 sec.) |
* Supply Voltage: 13.8 Volts
