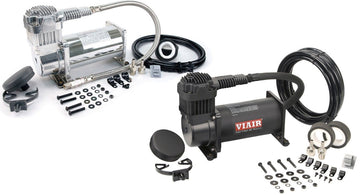

Get the best of both value and performance with the Viair 380C air compressor. This budget-friendly compressor can fill a 5-gallon tank to 200 PSI with ease, thanks to its constant duty cycle of 100% at 100 PSI. Ideal for pneumatic applications such as tire inflation, powering an air locker, and air suspension, the Viair 380C is both durable and fast. It can recharge a 2.5-gallon tank from 110-150 PSI in just 1 minute and 10 seconds, and refill a 5-gallon tank from 110-150 PSI in under 2 minutes and 25 seconds.
This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
PSI | CFM | A | BAR | LPM | A |
---|---|---|---|---|---|
0 | 1.58 | 12 | 0 | 44.7 | 12 |
10 | 1.45 | 13 | 1.0 | 38.1 | 13 |
20 | 1.22 | 14 | 2.0 | 33.3 | 15 |
30 | 1.17 | 15 | 3.0 | 30.6 | 16 |
40 | 1.09 | 16 | 4.0 | 29.1 | 17 |
50 | 1.06 | 17 | 5.0 | 27.1 | 18 |
60 | 1.02 | 17 | 6.0 | 25.3 | 19 |
70 | 0.97 | 18 | 7.0 | 24.0 | 20 |
80 | 0.92 | 18 | 8.0 | 22.4 | 21 |
90 | 0.88 | 19 | 9.0 | 21.0 | 23 |
100 | 0.85 | 20 | 10.0 | 19.5 | 21 |
110 | 0.81 | 21 | 11.0 | 18.2 | 20 |
120 | 0.78 | 22 | 12.0 | 16.7 | 19 |
130 | 0.74 | 23 | 13.0 | 15.2 | 19 |
140 | 0.71 | 21 | 14.0 | 13.5 | 18 |
150 | 0.67 | 20 | |||
160 | 0.64 | 20 | |||
170 | 0.60 | 19 | |||
180 | 0.57 | 19 | |||
190 | 0.53 | 19 | |||
200 | 0.49 | 18 |
* Supply Voltage: 13.8 Volts
2.5 GALLON TANK | FILL RATE |
---|---|
0 to 145 PSI | 3 min. 30 sec. (± 10 sec.) |
110 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
0 to 200 PSI | 6 min. 05 sec. (± 10 sec.) |
165 to 200 PSI | 1 min. 40 sec. (± 05 sec.) |
5.0 GALLON TANK | FILL RATE |
0 to 145 PSI | 7 min. 20 sec. (± 10 sec.) |
110 to 145 PSI | 2 min. 25 sec. (± 05 sec.) |
0 to 200 PSI | 13 min. 25 sec. (± 15 sec.) |
165 to 200 PSI | 3 min. 39 sec. (± 10 sec.) |
* Supply Voltage: 13.8 Volts
