Jason's 2005 Triton Pontoon Boat Train Horn Install with Outlaw Train Horn Kit

2005 Triton Pontoon Boat

Outlaw 228H Train Horn Kit

SOUND SAMPLE:

EXPAND GALLERY

CONTINUE TO INSTALLATION →

Jason M. just took his 2005 Triton Pontoon Boat to the next level with our Outlaw Train Horn Kit. From the water to the dock, this setup delivers an attention-grabbing, powerful blast that turns heads and makes waves.

The Outlaw Train Horn Kit combines an Outlaw black train horn with a 2-gallon 6-port air tank and a powerful 12-volt compressor, all tuned to run at 150 PSI for maximum output. The compact design fits well on pontoon boats, and the system delivers serious sound that carries across the water, making Jason's Triton impossible to ignore.

The system operates at 150 PSI with automatic restart at 110 PSI, delivering 4–6 seconds of honk time and a refill from 110 to 150 PSI in about 1 minute 30 seconds. The 2-gallon tank and compressor provide enough capacity for multiple strong blasts, making the boat ready to command attention on the lake, at the dock, or during events.

Big congrats to Jason for making his boat both stylish and impossible to ignore. His 2005 Triton Pontoon Boat now runs an Outlaw setup that brings HornBlasters loud energy to the water, proving train horns aren't just for trucks—they're perfect for boats that need to make a statement.

Feature Highlights

Outlaw Train Horn Kit pairs an Outlaw black train horn with a 2-gallon 150 PSI air system designed for marine and vehicle use
2-gallon 6-port air tank and 12-volt compressor deliver 4–6 seconds of honk time with strong, punchy output that carries across water
System operates at 150 PSI with 110 PSI restart for consistent performance and repeat blasts on the lake

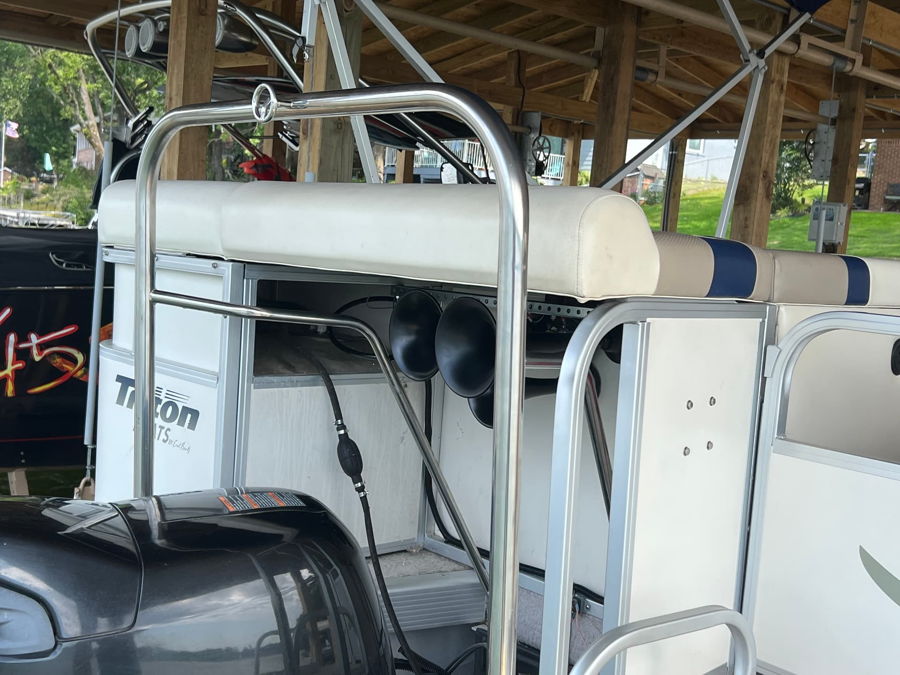

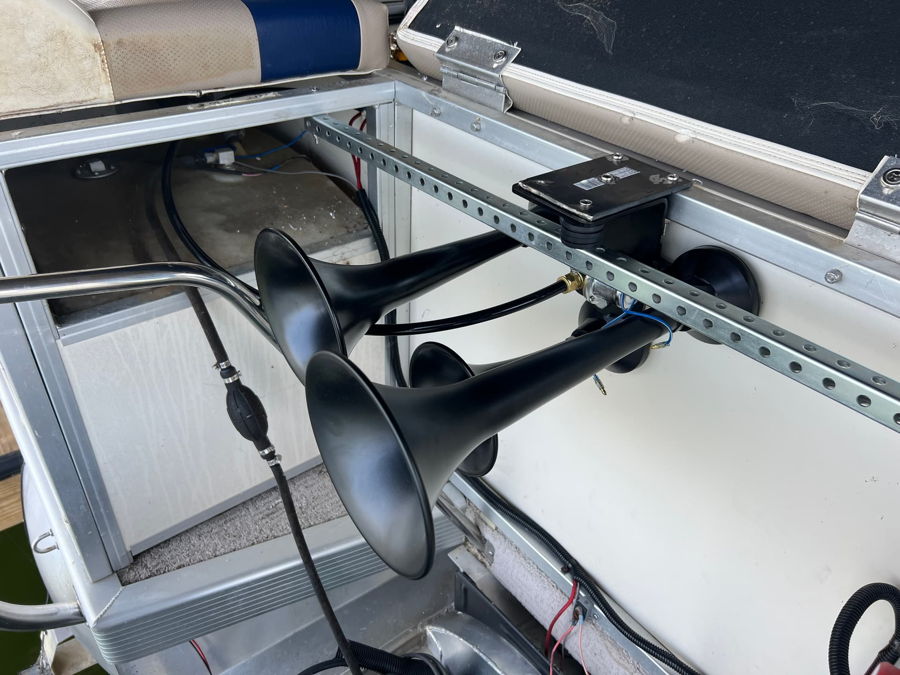

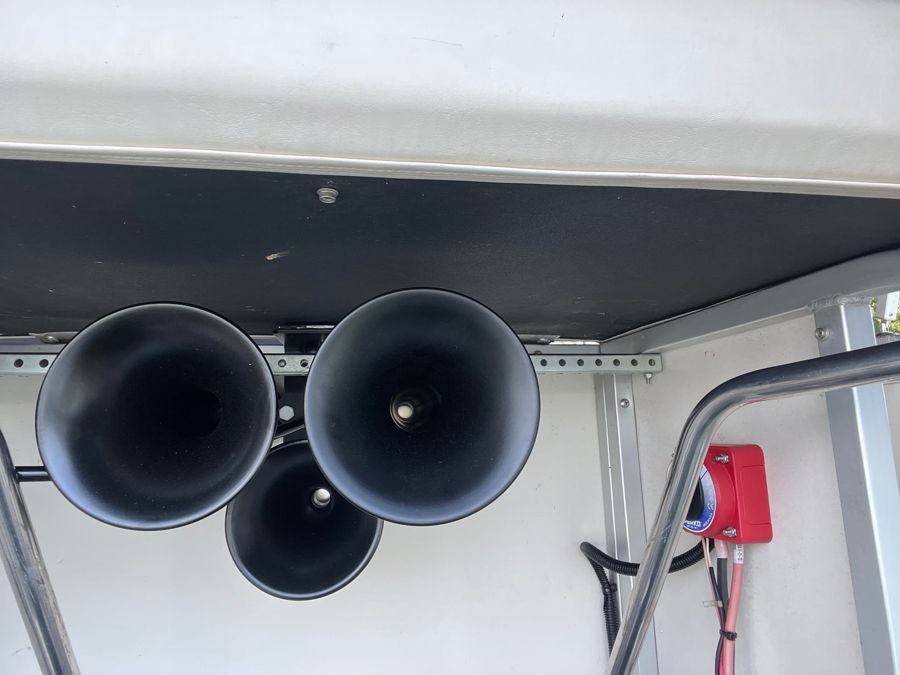

Compact horn and tank package fits well on pontoon boats and other marine vessels with proper mounting
Complete kit includes horn, tank, compressor, valve, gauge, wiring, fittings, and mounting hardware for a professional-grade marine installation

OUTLAW TRAIN HORN POWER FOR YOUR PONTOON BOAT

The Outlaw Train Horn Kit gives your pontoon boat the same attention-grabbing sound and powerful performance that Jason unlocked on his 2005 Triton. Built around the Outlaw horn and a 2-gallon 150 PSI air system, this kit delivers serious train horn presence in a package that fits marine applications. Add an Outlaw kit to your boat and give it a voice that makes waves on the water.

UP TO 1500% LOUDER

UNLIMITED HONKING

ZERO
DELAY

CAPABLE ONBOARD AIR SYSTEM

HornBlasters Shocker S6 544K Nightmare Edition Train Horn Kit

PRODUCT

PRICE

Sold out

SPECIFICATIONS

Part Number	HK-C3B-228H / HK-C3-228H
Operating Pressure	150 PSI
Restart Pressure	110 PSI
Voltage	12-Volt DC
Horn	Outlaw train horn
Horn Length	18.5″ (469.9 mm)
Horn Width	15.5″ (393.7 mm)
Horn Height	12.5″ (317.5 mm)

Horn Weight	15 lb (6.8 Kg)
Horn Air Inlet	1/2" Air Line
Air Source Tank Size	2-Gallons
Air Source Length	19" (482.6 mm)
Air Source Width	6.25" (158.75 mm)
Air Source Height	14.5" (368.3 mm)
System Max Amp Draw	22 Amps

FILL RATES

1.5 GALLON TANK	FILL RATE
0 to 120 PSI	2 min. 10 sec. (±10 Sec.)
90 to 120 PSI	35 sec. (± 5 Sec.)

Frequently Asked Questions

The Outlaw Train Horn Kit includes an Outlaw black train horn, 2-gallon 6-port air tank, 12-volt compressor, pre-installed electric air valve, air line, complete wiring kit with relay and fuses, fittings, mounting hardware, and detailed instructions. It is a full horn-and-air system designed to deliver serious sound from a single kit, suitable for both marine and vehicle applications.

With a 2-gallon tank at 150 PSI, the Outlaw kit typically delivers about 4–6 seconds of continuous honk time per full tank. The compressor refills the system from 110 to 150 PSI in around 1 minute 30 seconds on average, giving Jason enough time between blasts for regular use on the water, at the dock, or during events.

Yes, the Outlaw Train Horn Kit can be installed on pontoon boats and other marine vessels with proper mounting and weather protection. The components are designed for durability, but it's important to mount them in areas protected from direct water exposure and to ensure all electrical connections are properly sealed for marine environments. Many boat owners successfully use HornBlasters kits on their vessels.

The Outlaw Train Horn Kit uses a 2-gallon 6-port tank paired with a 12-volt compressor rated up to 200 PSI working pressure. The system runs at 150 PSI with a 110 PSI restart, has a maximum duty cycle of 100% at 100 PSI (50% at 200 PSI), and is built to support repeated horn use on boats and vehicles without overheating when installed correctly.

The Outlaw Train Horn Kit is a 12-volt DC system with a maximum current draw around 20 amps when the compressor is running. The kit includes the wiring, relay, and fuses needed, but Jason's boat electrical system needs to be in good working order to support the compressor. Most pontoon boats with healthy 12-volt battery systems and proper wiring can handle this draw without issue, especially when the engine is running and the alternator is charging.
