HOW TO WIRE A TOGGLE SWITCH BETWEEN TWO HORNS

Overview

Setting the horns up on the steering is a challenge in itself. Setting it up so that both horns are separate can be a challenge and we would not recommend following this article if the steps below are intimidating to you. Our authorized installers can help you out with setting this up if needed. Our installer locator can be found here.


Getting Started

This article assumes that the rest of your kit has been installed and you are just wiring the horn up. If you are not at this step yet, please view the previous installation articles here.

Items Required:

SPDT Relay (must be a 5-pin relay, 10A minimum) *HornBlasters does not supply this part. This relay must be sourced.*



Getting Started

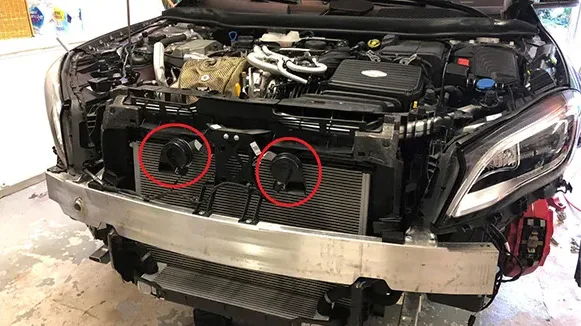

Start by locating the OEM horn. On most modern vehicles, the horn is located behind the front grille area, directly ahead or to the side of the radiator. Check out the image below.



You don't have to remove the bumper in most cases to access the OEM horns, but it does in some cases make your life easier.

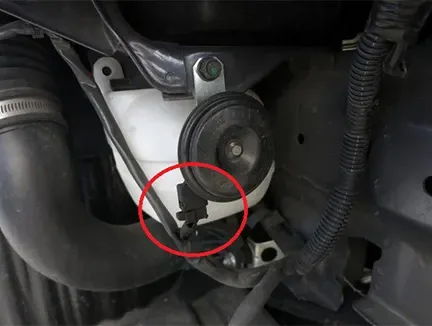

Once you have located your stock horn, take a look around for a small connector going into the horn itself. These connectors almost always have two wires coming out of them. The image below gives you an idea as to what to look for.


This is where the install gets a bit tricky. To make this work, the positive wire to the OEM horn must be cut. If you are unsure as to which is the positive wire, do not cut anything. We recommend starting at the connector and going back ~6-8" so you have plenty of wire to work with. Cut the wire in half, and strip each end. If you're unable to tell which wire is the positive wire, you can use a voltage meter to test both wires.


The Relay

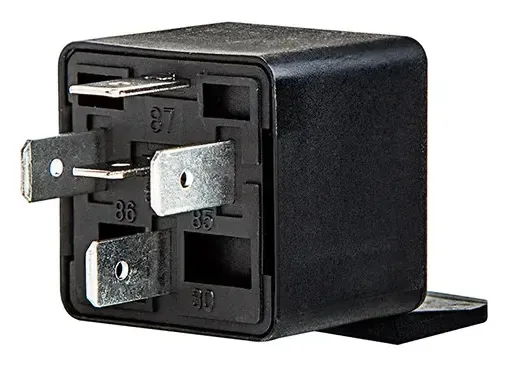

The Single-Pole Double Throw relay you are working with has five posts on the bottom.

This relay is very similar to the 4-pin relays we use with some of our kits. The added post '87A' is used for a second accessory. These relays are designed to switch between two circuits, when on or off. You will set this up so that one circuit is for the regular stock horn and the other is for the train horns. Both can be honked with the steering wheel, but only one at a time will honk.

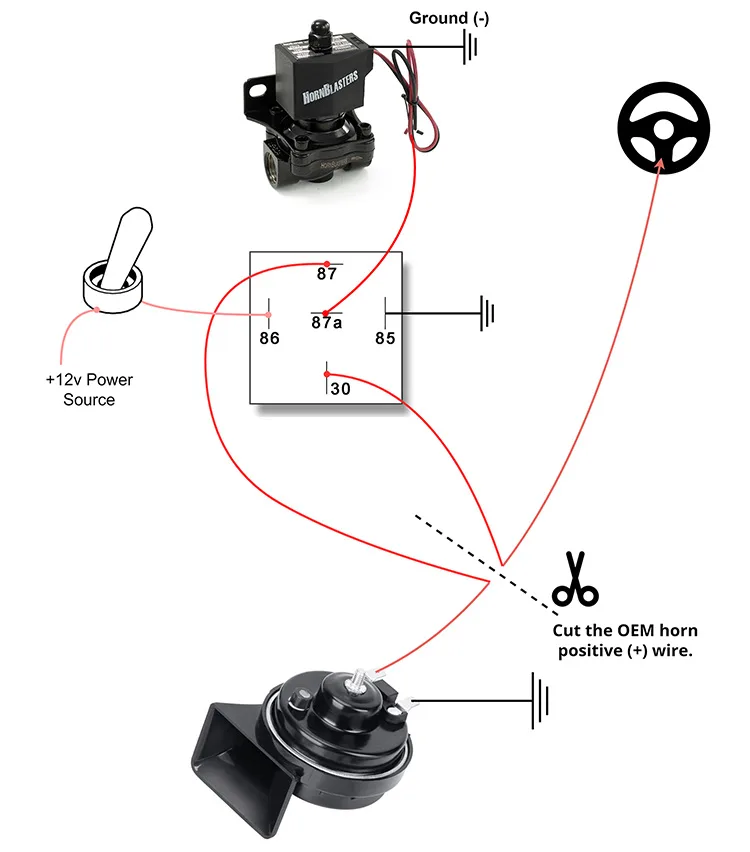

  • 87: Connect the wire from OEM horn (the short wire lead we cut earlier FROM the horn itself. Route this to pin 87)
  • 87A: Connect the red wire from our solenoid valve to this terminal.
  • 30: Connect this terminal to the side of the OEM horn wire that comes from the steering wheel. (the wire that is NOT coming off the horn itself)
  • 86: Connect this post to the toggle switch you plan to use to switch between the two horns.
  • 85: Route this post to the frame of the vehicle as a ground.
The steering wheel will be used to honk each horn, and the toggle switch allows you to switch between the two. When the vehicle is off, the horns will still honk but the compressor will not run.
