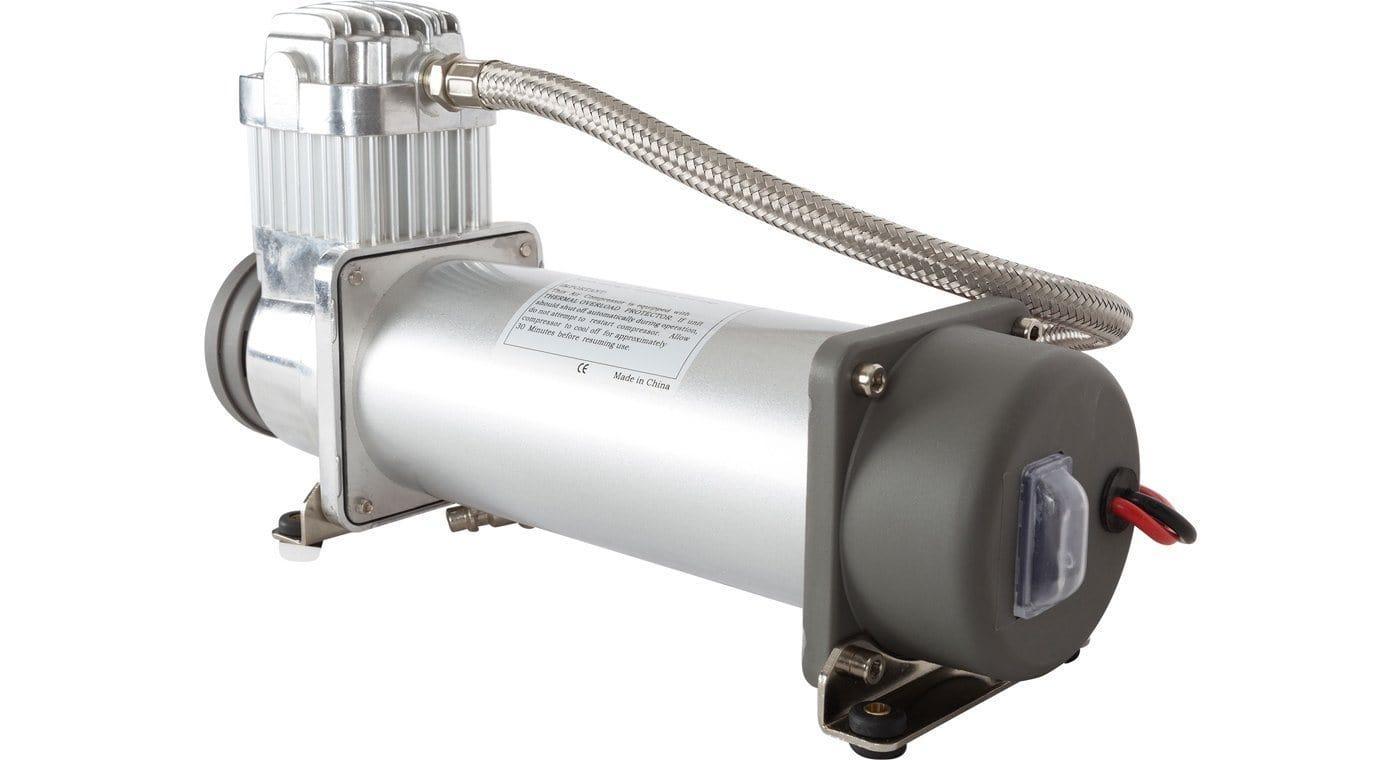

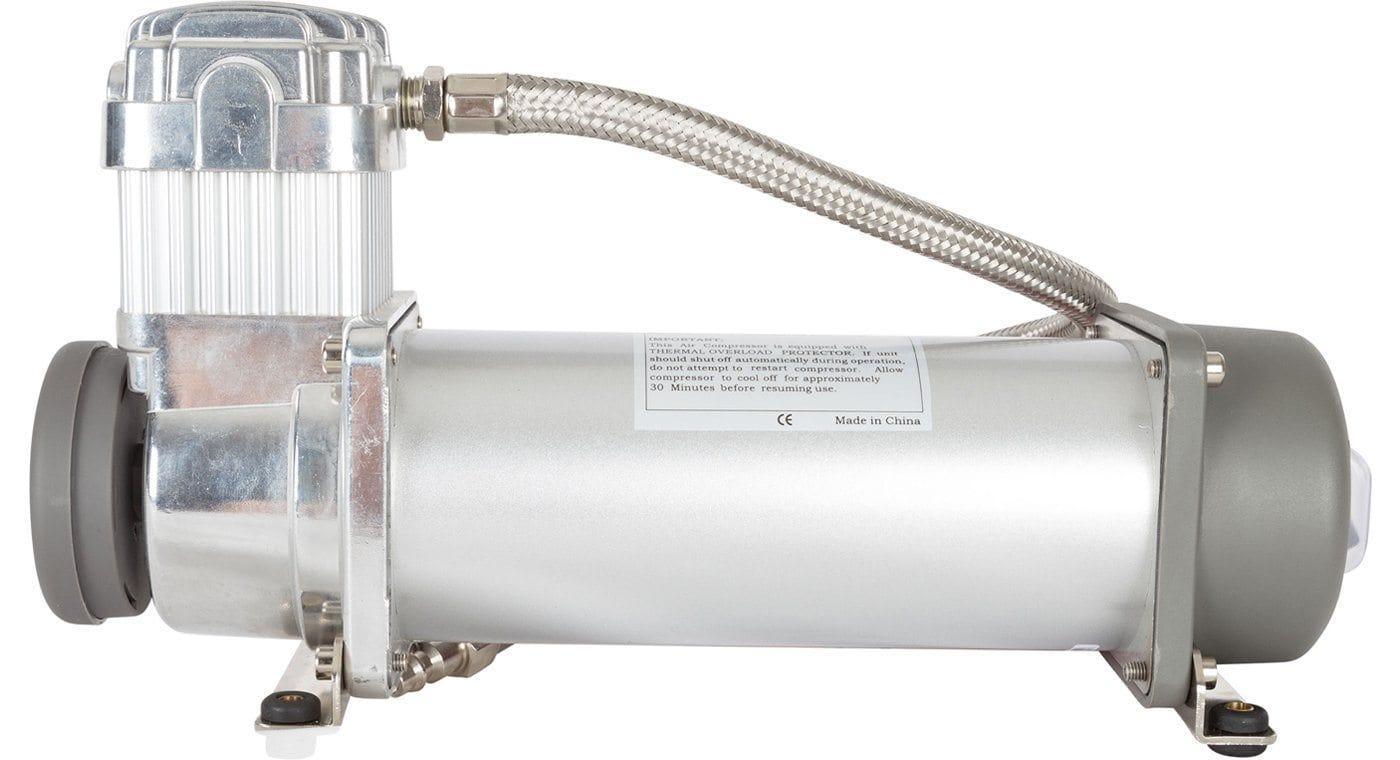

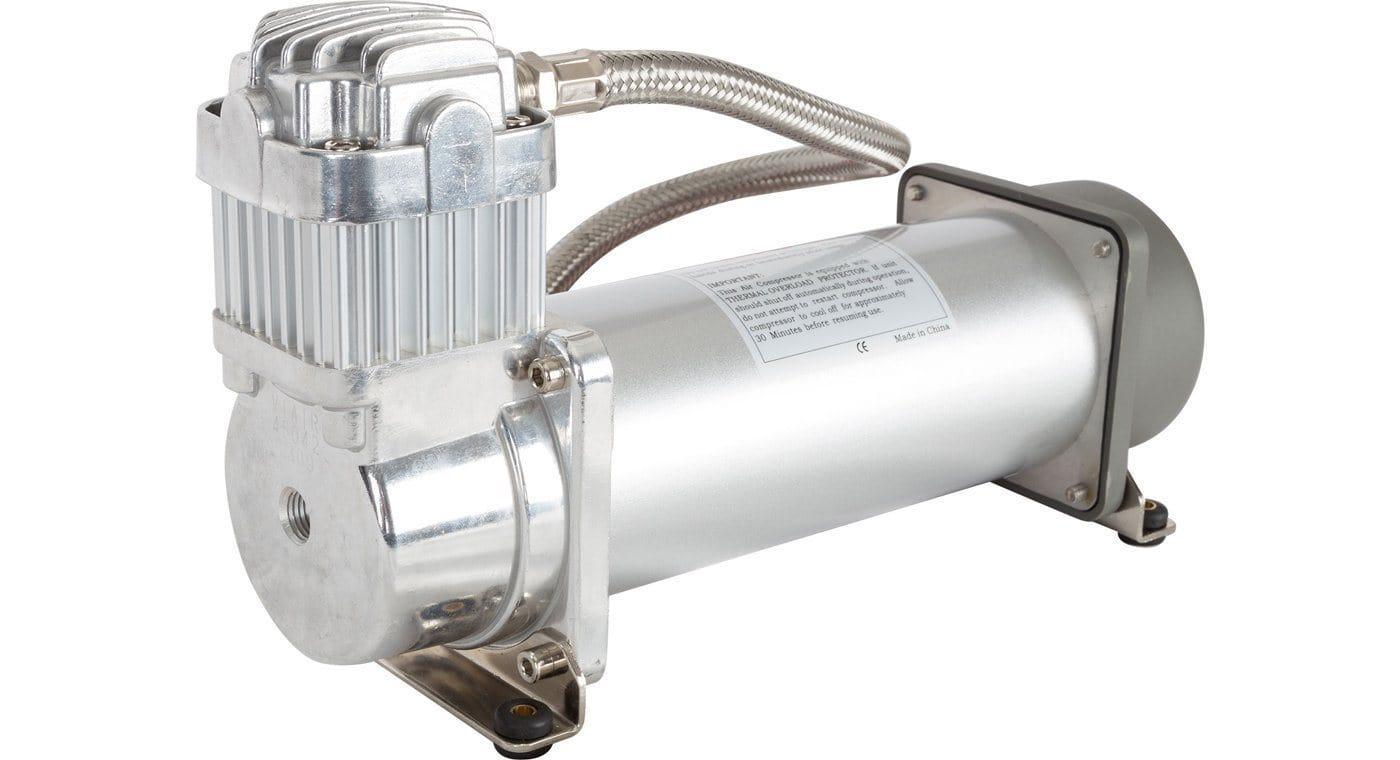

Viair 450H Hardmount Air Compressor

AC-450H


Looking for a simple solution to air up your tires? Having onboard air is great, but if you are just looking to be able to fill or top off tires and don’t want to bother with an onboard air system, the Viair 450H Hardmount Air Compressor is the solution you have been looking for! Why bother with an air tank when you can just fill up straight from the compressor with an air chuck attached to the included 1/4" Quick Connect Stud? The Viair 450H Hardmount Air Compressor is the most powerful hard-mount air compressor we carry, with a 100% duty cycle at 100 PSI and producing 1.8 CFM flow at zero PSI head pressure. With the Viair 450H Hardmount Air Compressor, you can fill up a 37” X 12.5” tire from empty to full in just under eight minutes.

The  Viair 450H Hardmount Air Compressor comes with a built-in, moisture resistant ON/OFF power switch, remote mount air filter assembly, heavy-duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI CFM A BAR LPM A
0 2.30 17 0 65.1 17
10 2.13 19 1.0 58.4 20
20 1.98 21 2.0 53.0 23
30 1.86 23 3.0 48.5 24
40 1.75 24 4.0 44.2 26
50 1.64 25 5.0 40.2 27
60 1.54 26 6.0 37.0 28
70 1.44 27 7.0 33.3 29
80 1.37 27 8.0 30.1 28
90 1.28 28 9.0 27.0 28
100 1.19 29 10.0 22.1 27
110 1.11 29
120 1.04 28
130 0.95 28
140 0.85 27
150 0.71 27

* Supply Voltage: 13.8 Volts

33″ X 12.5″ FILL RATE
0 to 30 PSI 4 min. 20 sec. (± 10 sec.)
15 to 30 PSI 2 min. 05 sec. (± 05 sec.)
35″ X 12.5″ FILL RATE
0 to 30 PSI 5 min. 20 sec. (± 15 sec.)
15 to 30 PSI 2 min. 45 sec. (± 10 sec.)

 * Supply Voltage: 13.8 Volts

  • Revolutionary Heat Dissipation Head Design
  • Industrial Grade & CE Spec.
  • Permanent Magnetic Motor
  • Oil-less Design
  • High-Performance PTFE Piston Ring
  • Stainless Steel Valves
  • Moisture & Dirt Resistant
  • Gearless Direct Drive Motor
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • Stainless Steel 1/4" Braided Leader Hose
  • Remote Mountable Intake Filter Assembly
  • Insulated Wiring with Connectors

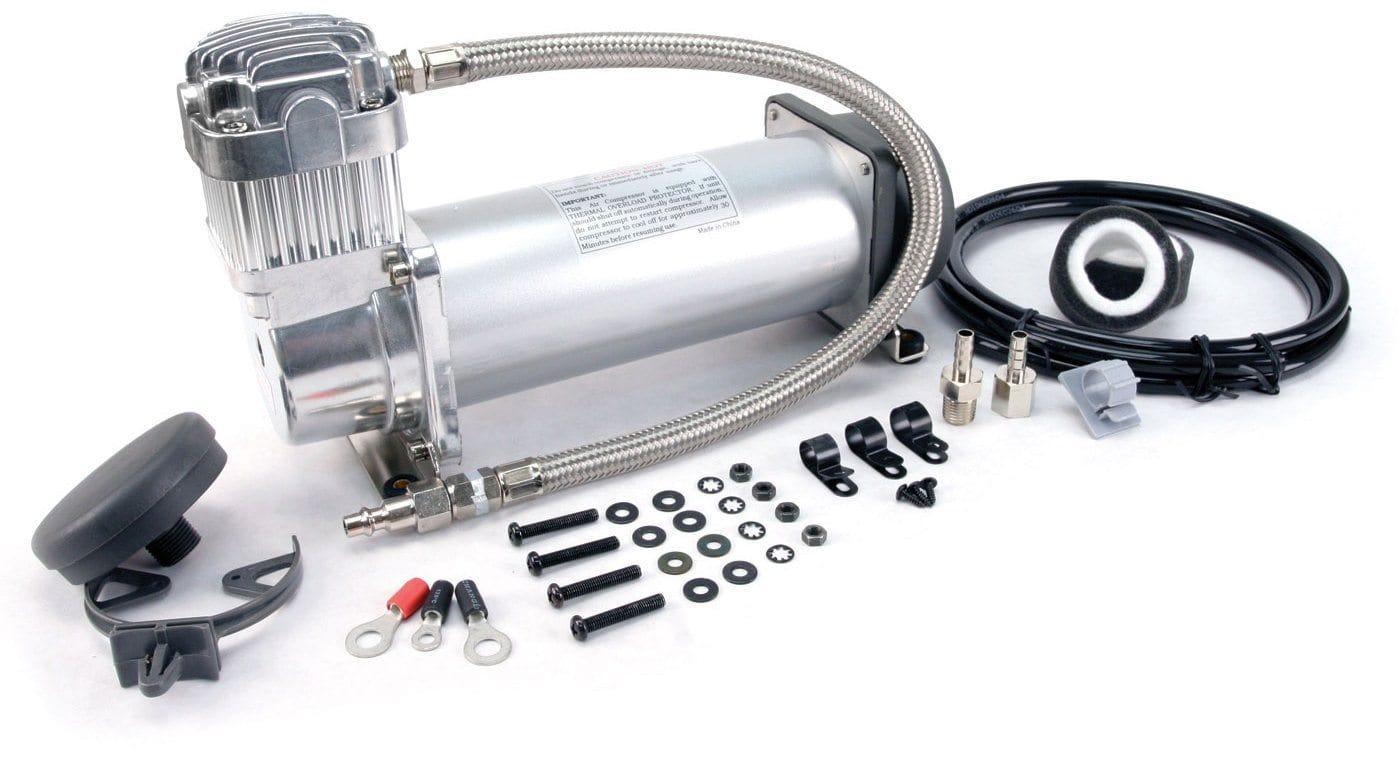

  • Viair 450H Air Compressor
  • 1/4" NPT Braided Leader Hose & Check Valve
  • Two-Stage Air Filter
  • Replacement Filter Elements
  • 1 Year Manufactures Defect Warranty
  • Mounting Hardware
  • Part Number: AC-450H
  • Voltage: 12 Volts DC
  • Max Amperage: 23 Amps
  • Maximum Duty Cycle: 100% @ 100 PSI
  • Maximum Pressure: 150 PSI
  • CFM @ 0 PSI: 1.66 CFM
  • Length: 11.63″ (295.5 mm)
  • Width: 4.0″ (101.6 mm)
  • Height: 6.75″ (171.45 mm)
  • Weight: 9.75 lb (4.42 Kg)
