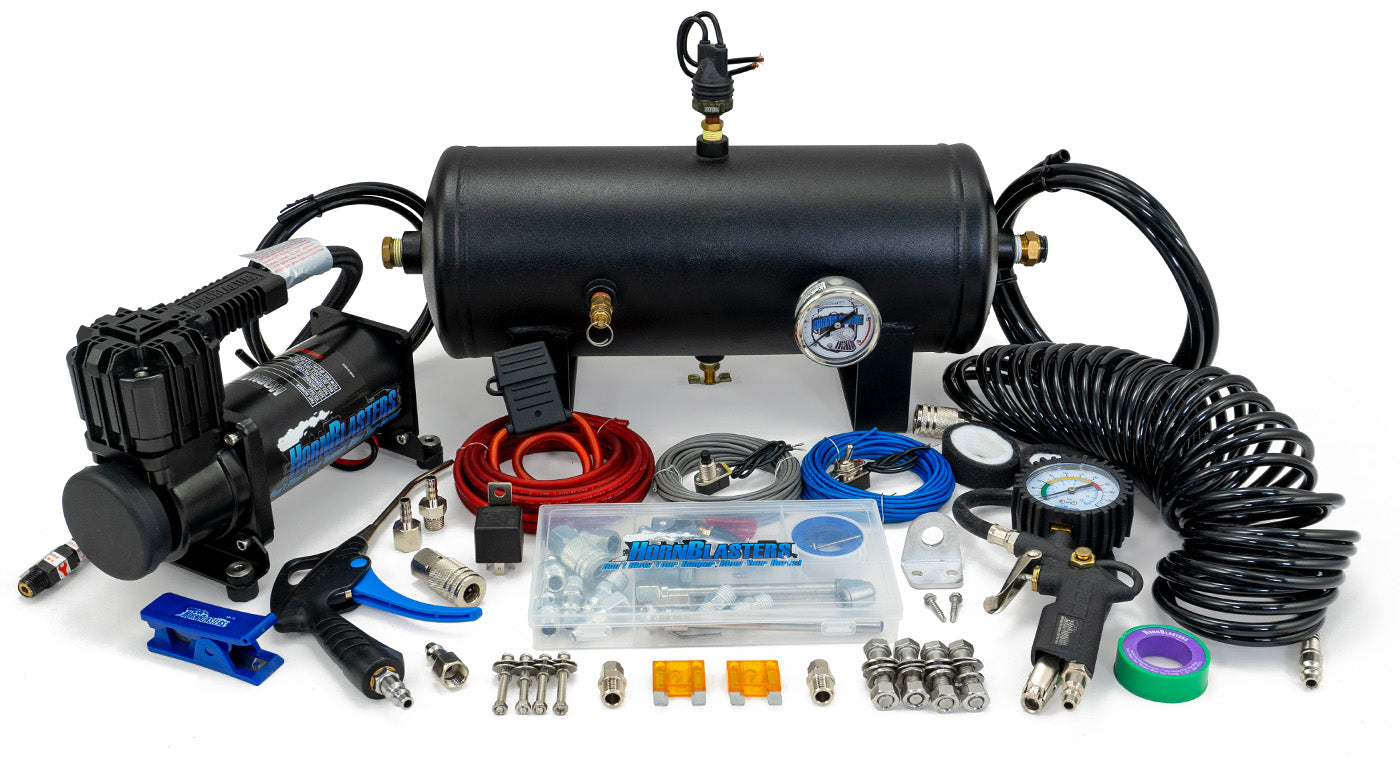

HornAir 232 24 Volt Onboard Air System

HA-232-24


Overview

This HornAir 232 24 Volt Onboard Air System only weighs 19lbs installed and provides 2 gallons of 150 PSI air. The fast-filling 325C 24 Volt air compressor can recharge the tank from 110 to 150 in just under 50 seconds. The fitting kit includes a safety blow-off and drain cock, and leaves one port spare so you can easily install another accessory. All this at an affordable price.

This package is perfect for filling up load-leveling air springs and perfect for any 24 Volt Train / Air Horns. If your truck has air springs without a compressor setup, this is the perfect compliment. Please note that if you use horns, you will still need an air valve kit to connect the system properly. **This is a 24 Volt Air System!!**

Unlike some other air systems, HornAir kits come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.

Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

 **This unit requires a 24 Volt Electrical System!!**

Features
  • 24 Volt Air System
  • Designed For HornBlasters Shocker Horns
  • All-inclusive Train Horn Air Solution!
  • Fast Filling Compressor Perfect For Train Horns
  • Comes With Standard 1/2" Push-to-Pull Fitting
  • Complete Fitting Kit With Safety Valve & Drain Cock
  • All Standard Mounting Hardware
Includes
    Specifications
    • Tank: 2 Gallon Tank
    • Rated Pressure: 300 PSI
    • Burst Pressure: 800 PSI
    • Length: 17" (431.8 mm)
    • Diameter: 6" (152.4 mm)
    • Height: 7" (177.8 mm)
    • Weight: 10 lb (4.54 Kg)
    • Compressor: Viair 325C 24 Volt Air Compressor
    • Voltage: 24 volts DC
    • Air Flow: 1.80 CFM at Free Flow
    • Average Fill Time: 1 Min 10 Sec
    • Max Amperage: 13 amps
    • Maximum Duty Cycle: 33% @ 100 PSI
    • Maximum Working Pressure: 150 PSI
    • Compressor Length: 8.0" (203.2 mm)
    • Compressor Width: 4.0" (101.6 mm)
    • Compressor Height: 7.05" (179.07 mm)
    • Compressor Weight: 6.95 lb (3.15 Kg)
    • Pressure Switch: 24 Volt 110/150 PSI Pressure Switch
    • Voltage: 24 volts DC
