Super Echo 228H Air Horn Kit

(Discontinued)

HK-D2K-228H

  • Free worldwide shipping
  • In stock, ready to ship
  • Inventory on the way

Audio Sample:

This model has been discontinued. You can find similar models here!

HELOOOOOOoooooo

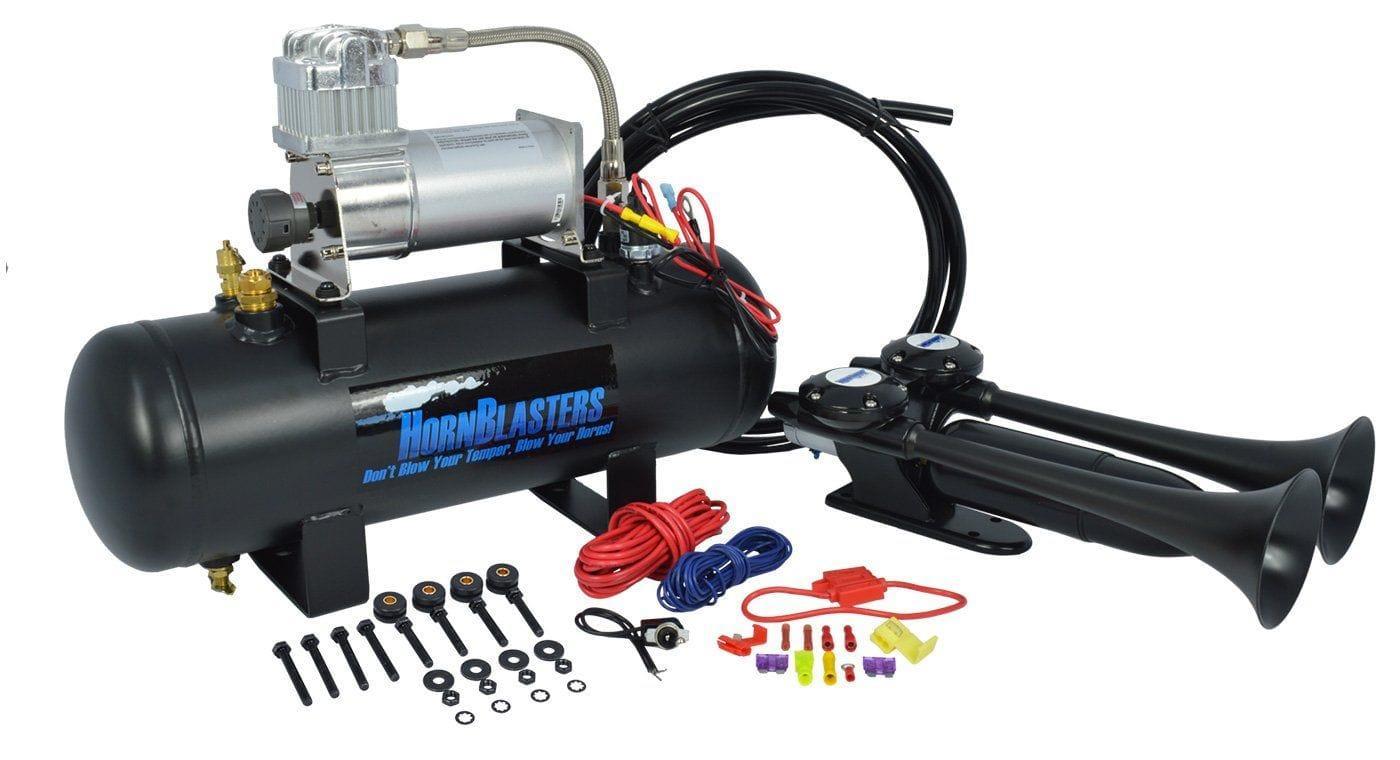

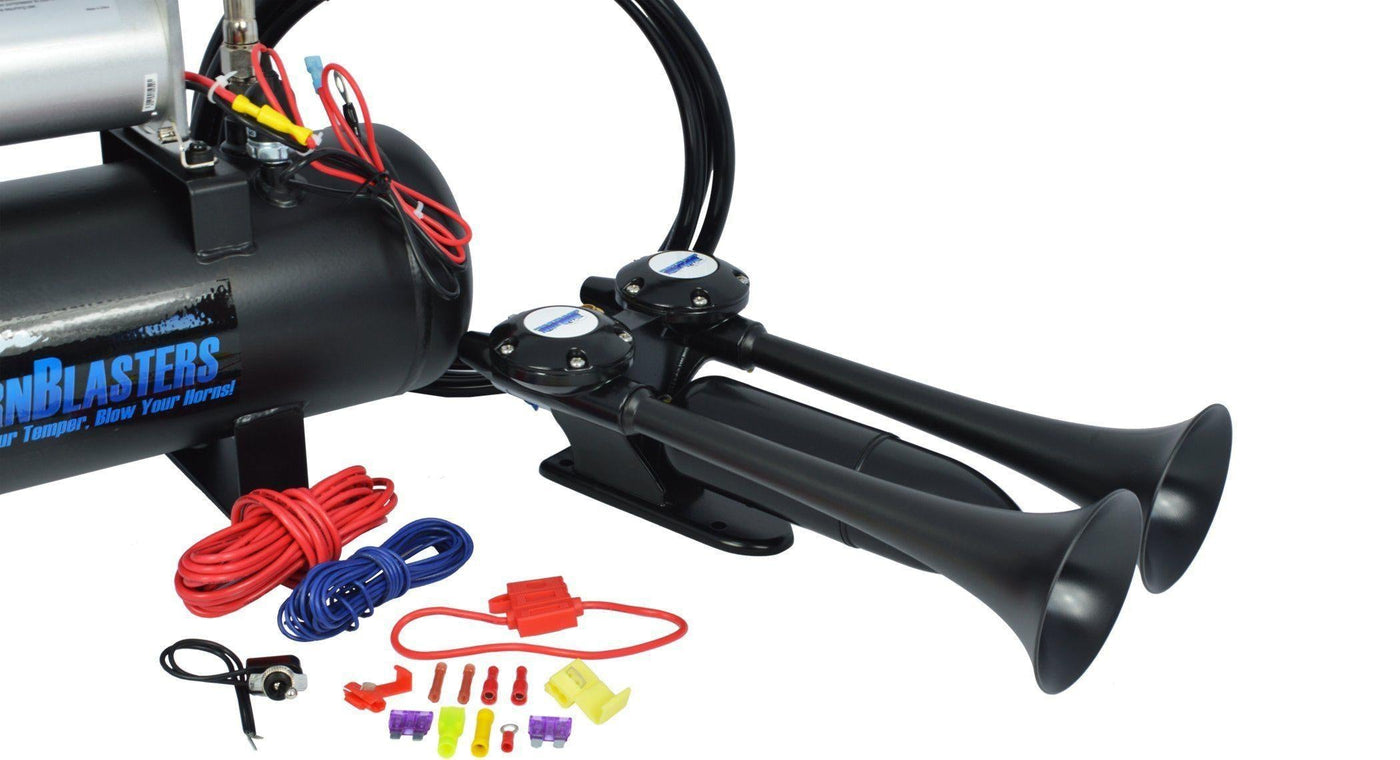

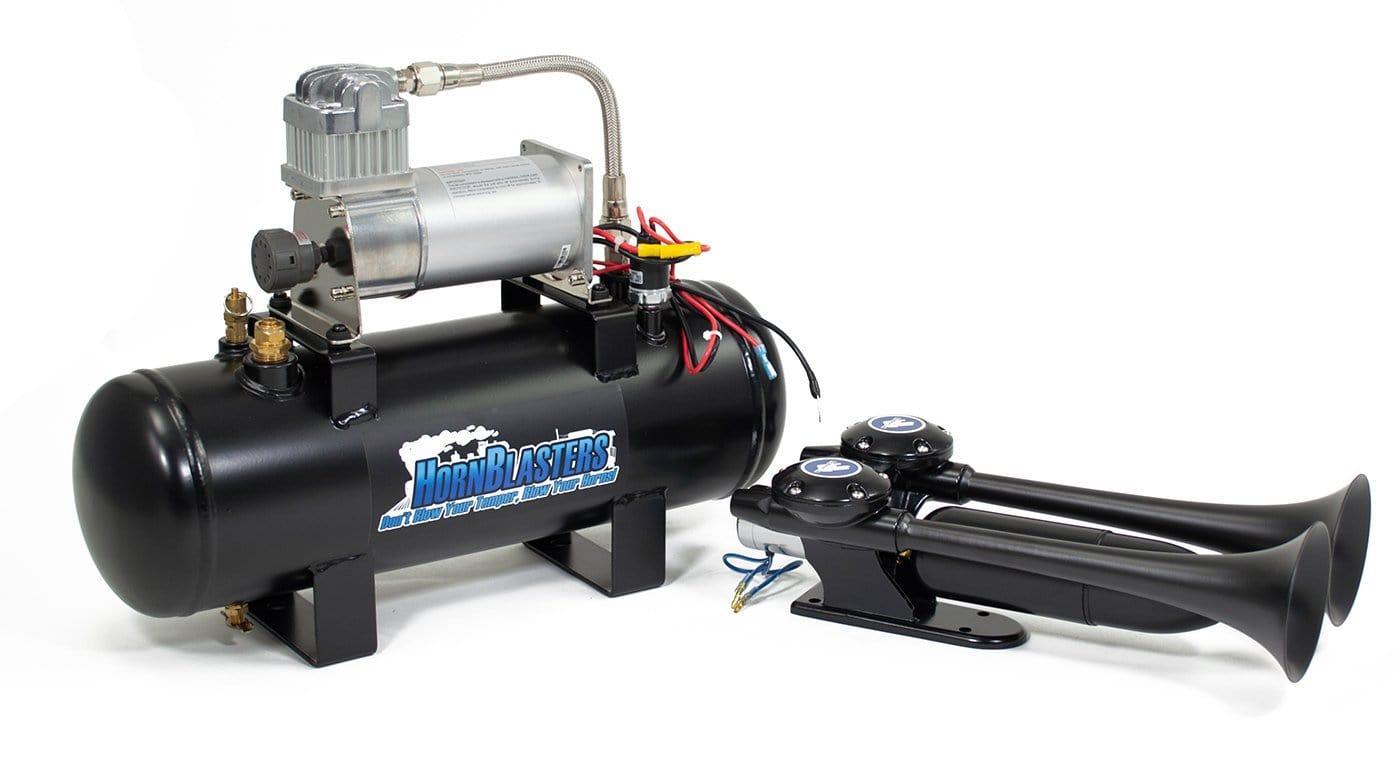

Stand out with the Super Echo 228H air horn kit, offering a unique high-pitched tone thanks to its dual chime stealth black air horn and specially engineered resonance chamber. This budget-friendly, beginner-oriented kit includes the compact HornAir 228H air source unit, providing up to 5 seconds of continuous honking and easy installation for vehicles with limited space.

  • All-inclusive air horn solution!
  • Heavy-duty air compressor for faster fills!
  • 145 PSI Air system
  • Max honk time: 4-5 seconds
  • Unique pulsing tone

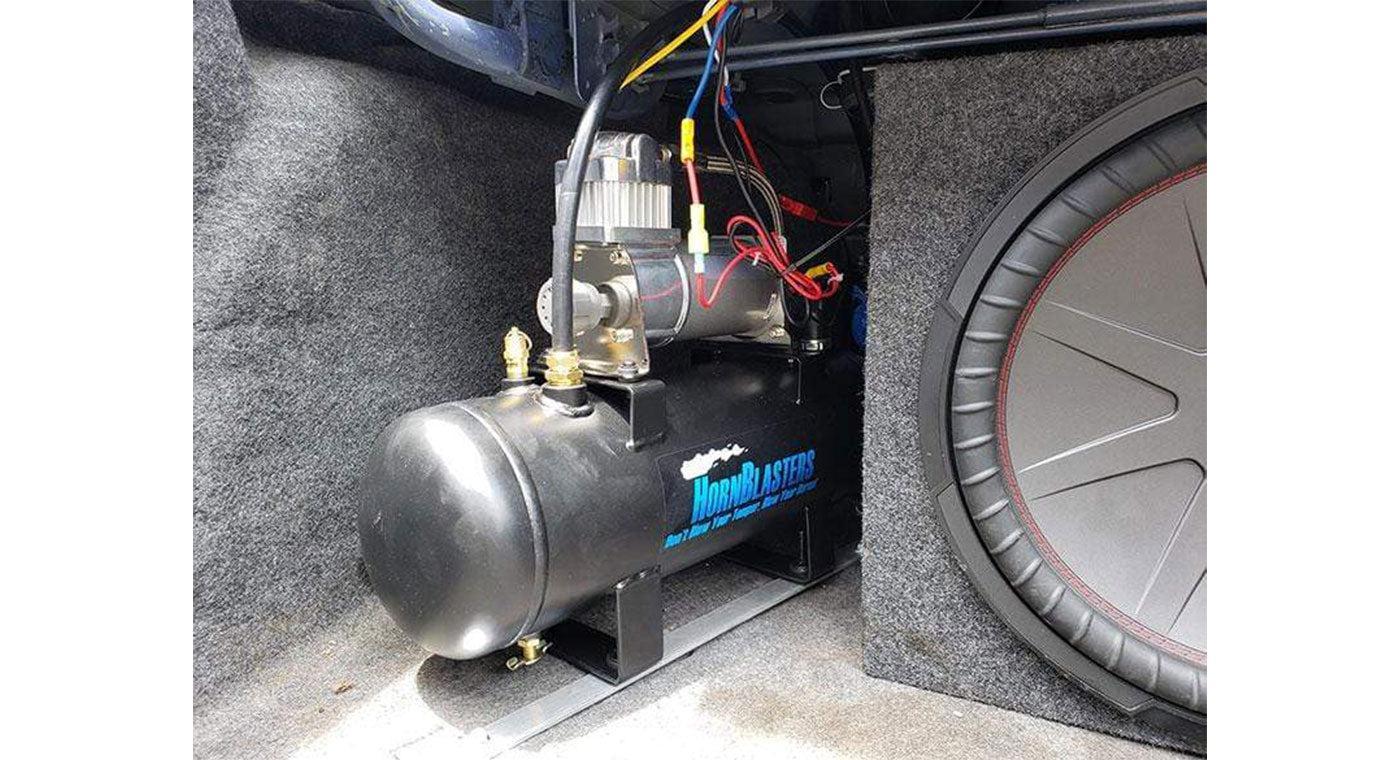

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **

  • Part Number: HK-D2K-228H
  • Operating Pressure: 150 PSI
  • Restart Pressure: 110 PSI
  • Voltage: 12-Volt DC

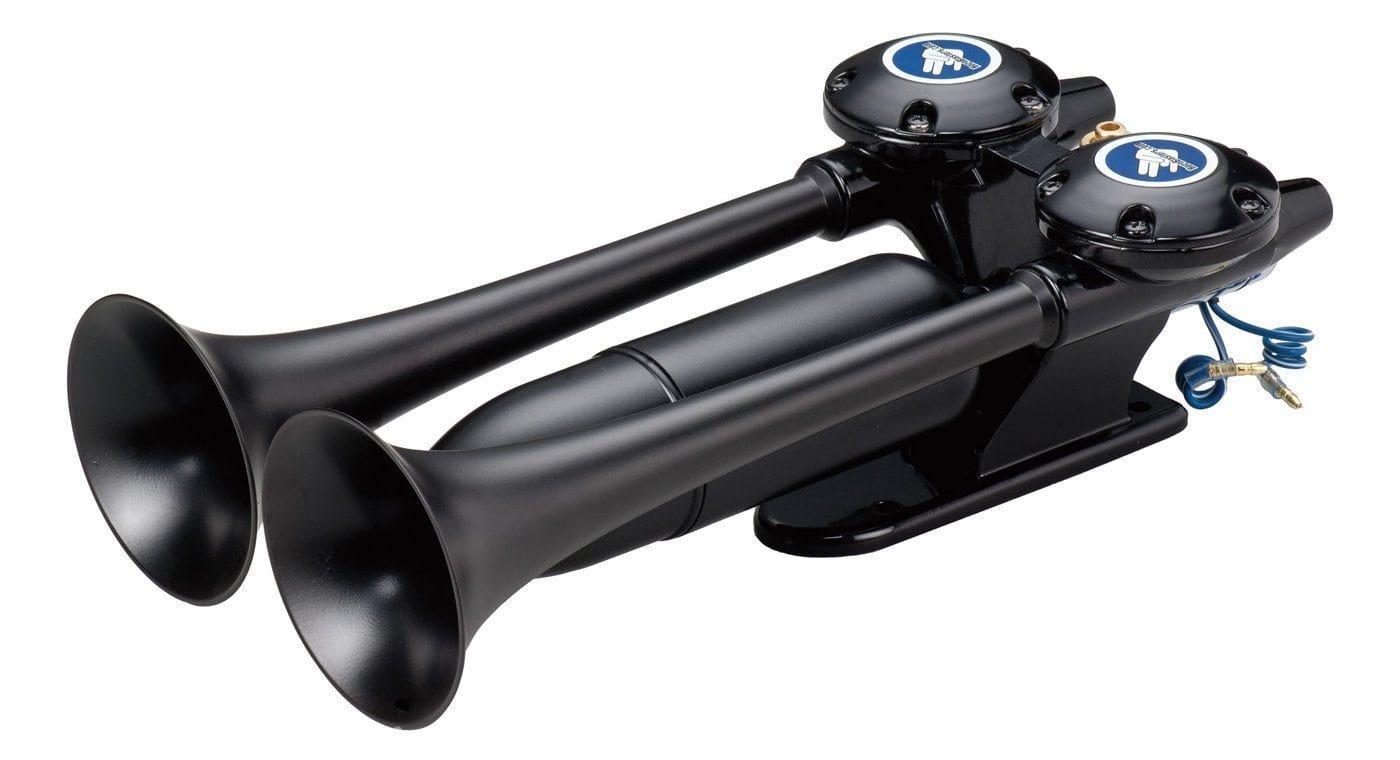

  • Horn: HornBlasters Super Echo air horn
  • Horn Length: 15.125" (384.17 mm)
  • Horn Width: 7.75" (196.85 mm)
  • Horn Height: 4.5" (114.3 mm)
  • Horn Weight: 5.2 lb
  • Horn Air Inlet: 1/2" air line
  • Air Source Unit: HornBlasters 228H air source unit
  • Air Source Length: 18.9″ (480.6 mm)
  • Air Source Width: 5.9″ (149.86 mm)
  • Air Source Height: 13.7″ (347.98 mm)
  • Air Source Weight: 17.15 lb (7.78 Kg)
  • Air Tank: 2-gallon 5 port air tank
  • Volume: 2 Gal (8.8 L)
  • Air Source Kit Compressor: 280C air Compressor
  • Max Amperage: 19 amps
  • Maximum Duty Cycle: 30% @ 100 PSI
PSI CFM A BAR LPM A
0 1.59 10 0 45.0 10
10 1.49 12 1.0 40.2 13
20 1.33 13 2.0 32.1 14
30 1.11 14 3.0 29.0 15
40 1.04 15 4.0 26.4 16
50 0.99 15 5.0 24.2 16
60 0.92 16 6.0 22.0 17
70 0.87 16 7.0 21.0 19
80 0.81 17 8.0 19.4 18
90 0.76 17 9.0 17.5 17
100 0.74 19 10.0 15.3 17
110 0.71 19
120 0.67 18
130 0.62 17
140 0.57 17
150 0.51 17

* Supply Voltage: 13.8 Volts

2.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 40 sec.(± 10 sec.)
110 to 145 PSI 1 min. 15 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
