UTILIZE WASTED SPACE
The assembly occupies the spare tire well underneath your vehicle. Plan a new location for your spare before installation.

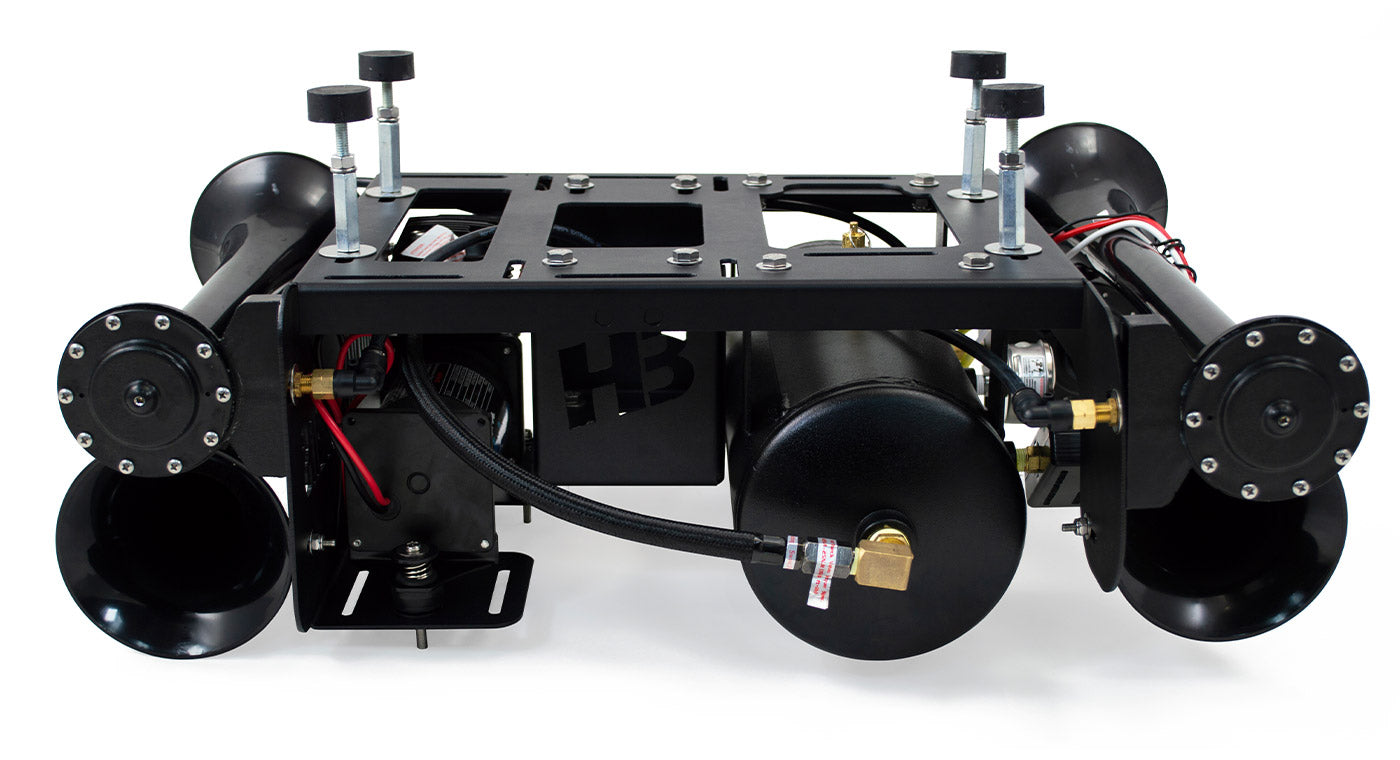

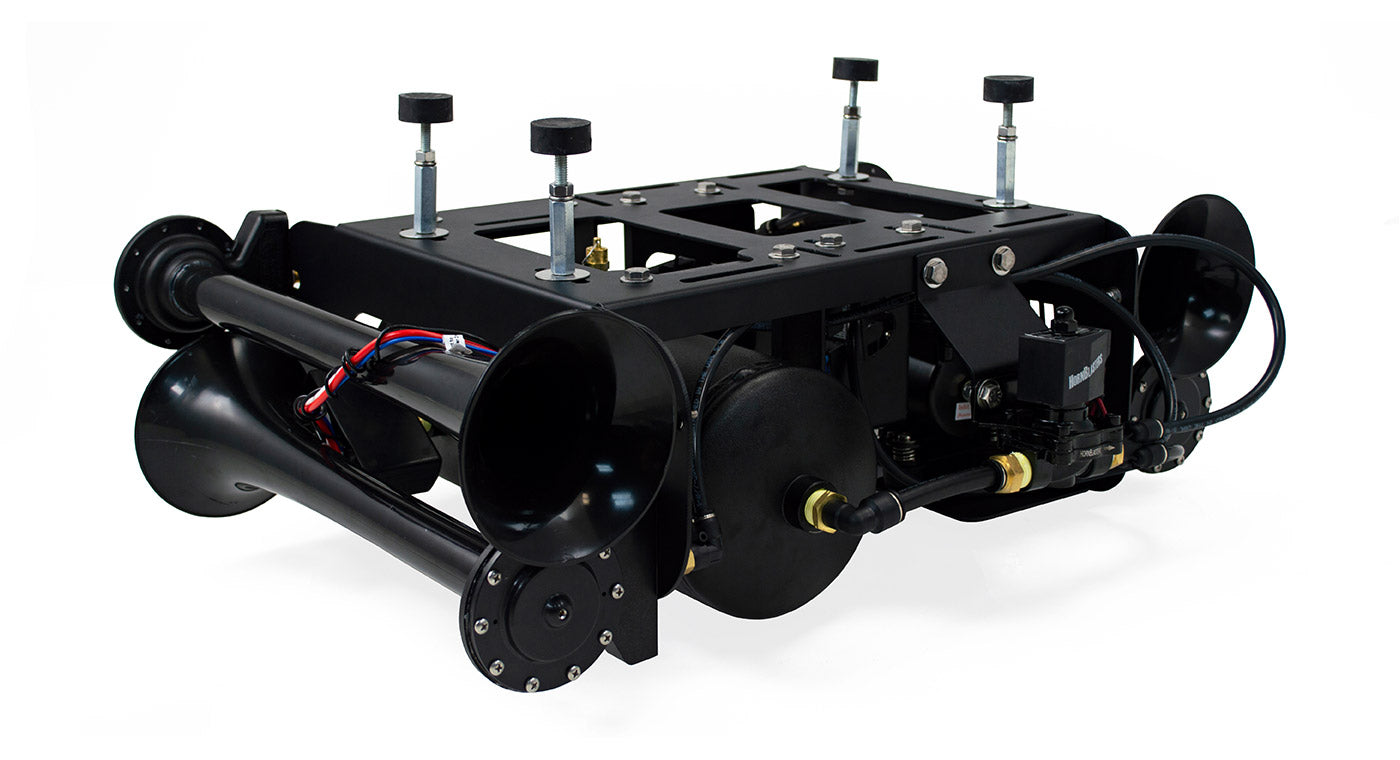

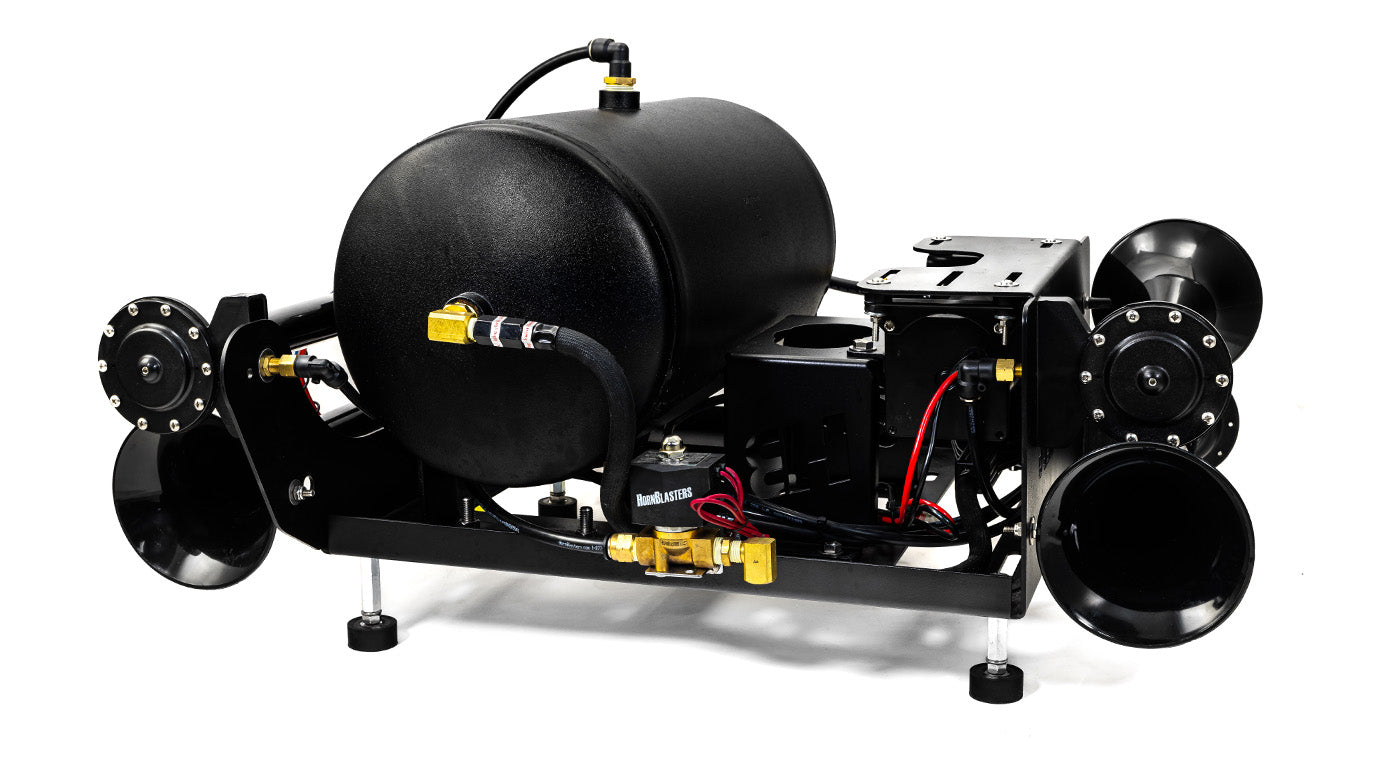

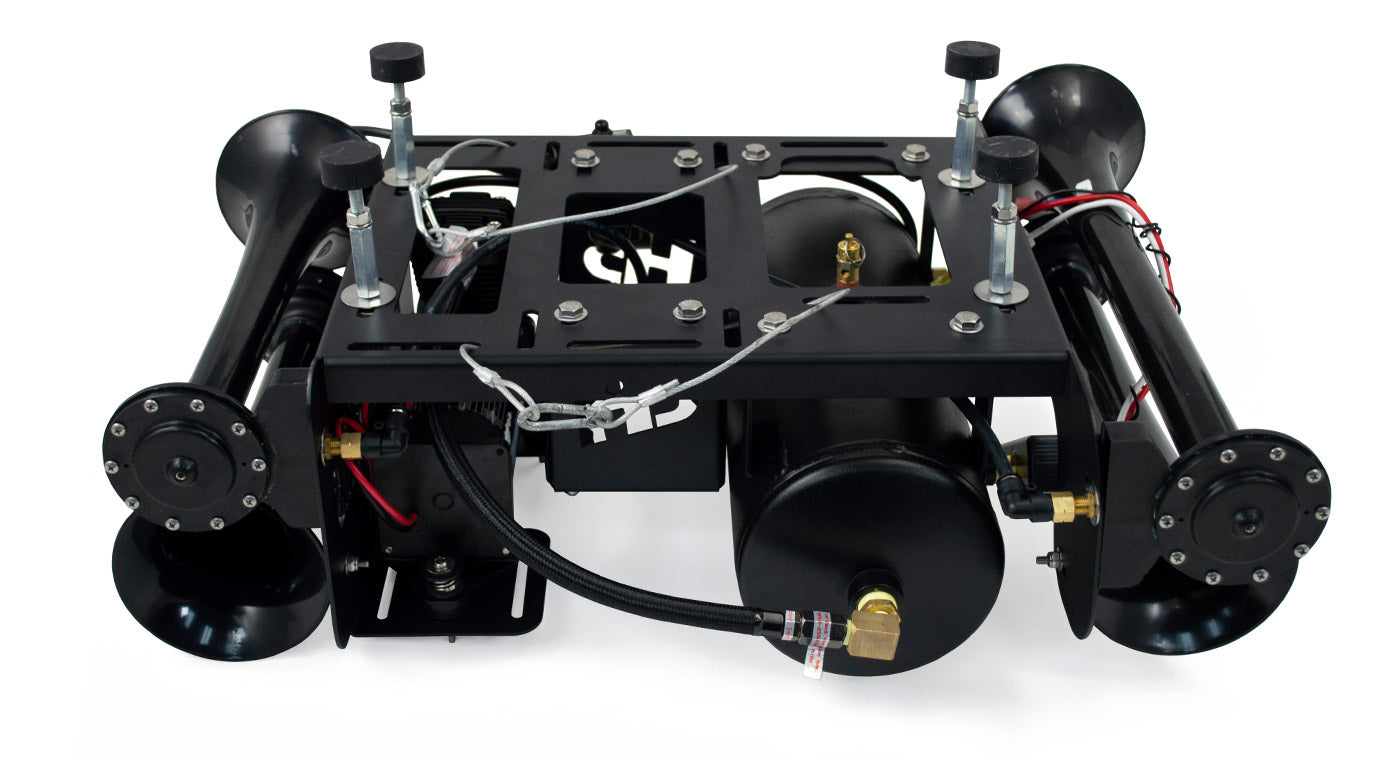

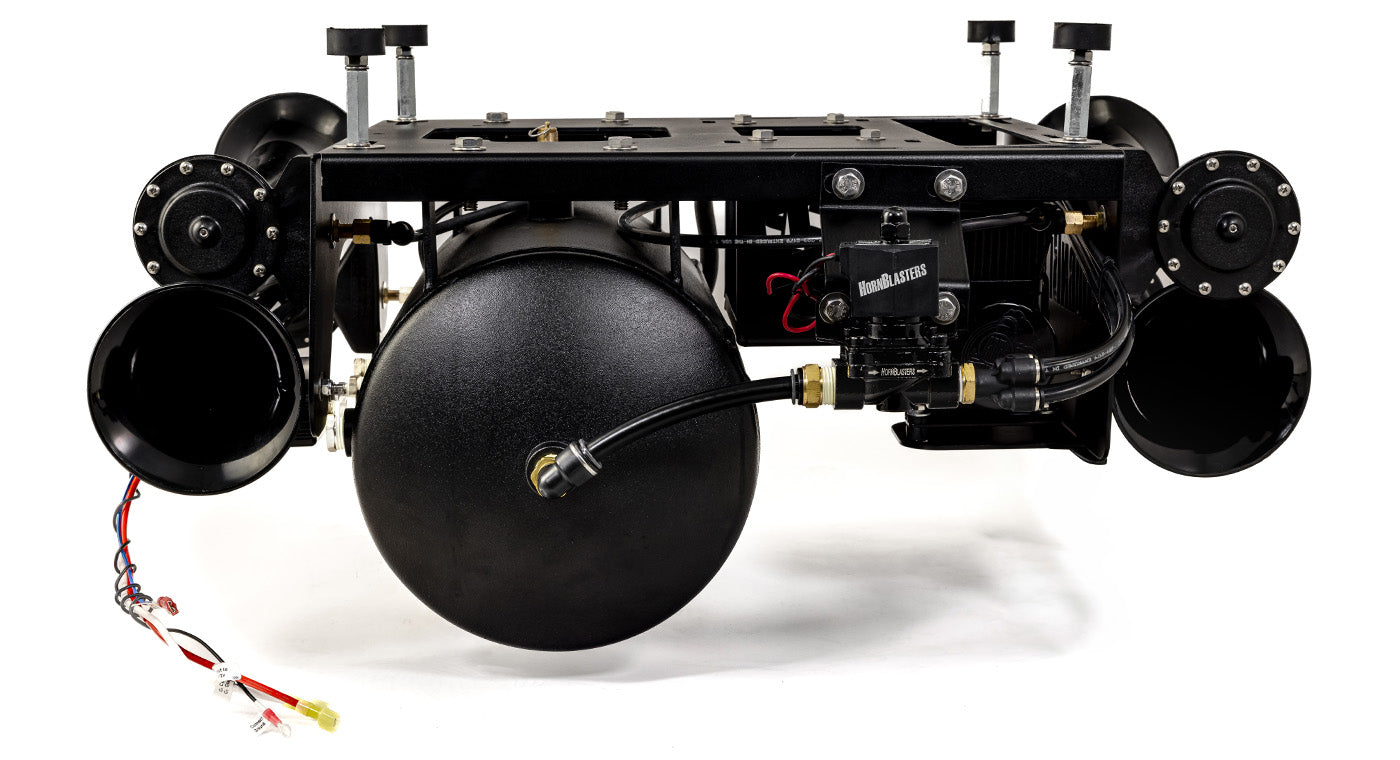

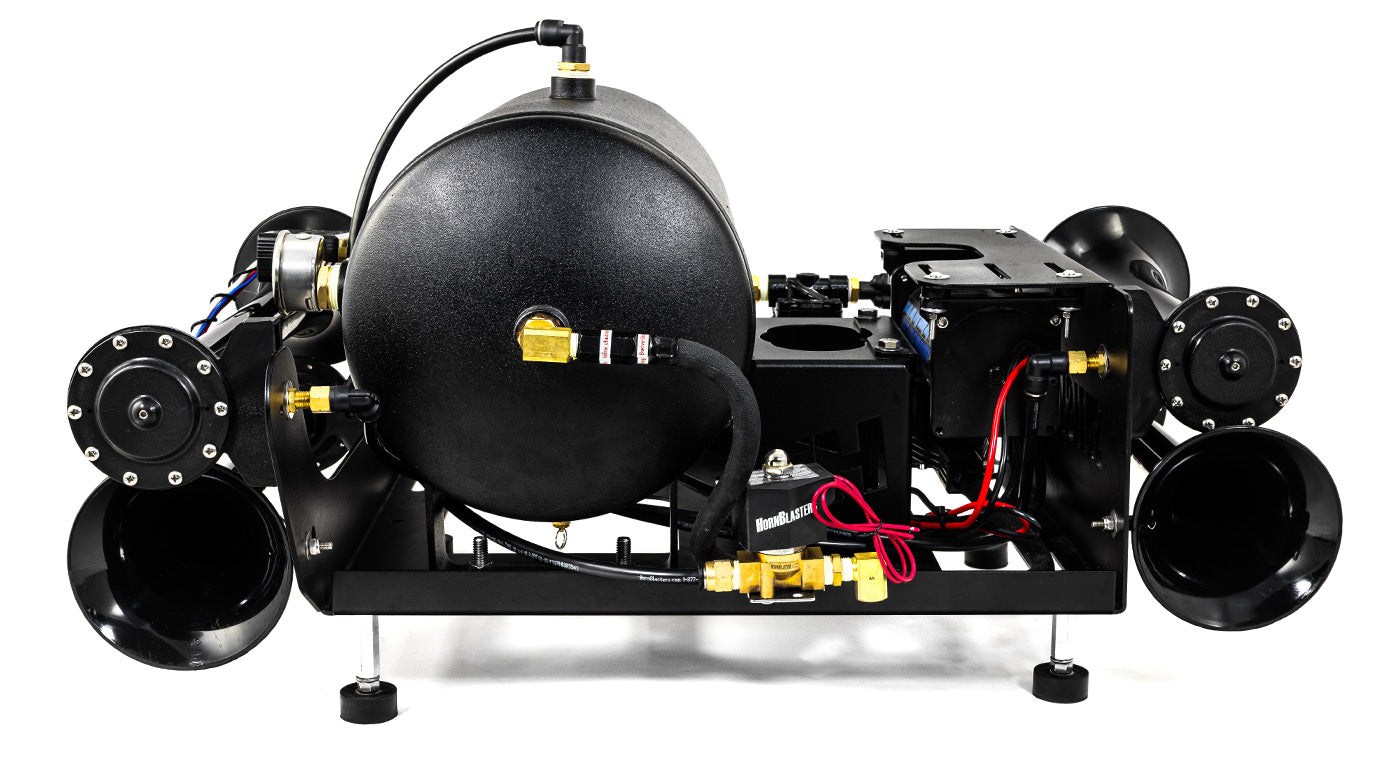

Shown assembled. Components require assembly.
Stealth-Spare-Tire-Delete®-Kit
4.9 · 37 reviews€1.165,95
Fits most full-size pickups and SUVs. Check dimensions ↓
THE FULL STORY
STEALTH SPARE TIRE DELETE® KIT
WERDEN SIE GEHÖRT UND NICHT GESEHEN
Sie haben gefragt, wir haben geantwortet! Das Stealth Reserverad-Entfernungs-Kit ist jetzt erhältlich! Nach vielen Stunden Entwicklungs- und Konstruktionsarbeit haben wir ein Drucklufthorn-Kit entwickelt, das nicht nur in mehr große Pick-ups und SUVs passt, sondern im eingebauten Zustand auch unauffälliger ist als jedes andere System zuvor. Dank der versteckten Schalltrichter können Sie mit dieser neuen eleganten Konfiguration gehört werden, ohne gesehen zu werden.
Zu den neuen Funktionen gehören:
- Multidirektionales Montagemuster für die Hörner; der Schall wird zu beiden Seiten abgestrahlt und erzeugt eine 360-Grad-Schallwand.
- Passt in mehr Fahrzeuge als zuvor. Das neue Design ermöglicht mehrere Montagekonfigurationen.
- Das neue Komponentenlayout bietet im Vergleich zum vorherigen Reserverad-Entfernungs-Kit 5" mehr Bodenfreiheit, da die Schalltrichter nach oben in die Reserveradmulde verlegt wurden.
Wichtige Hinweise:
-
Passend für die meisten Pick-ups und SUVs in voller Größe.
- Das Reserverad-Entfernungsset ist oben zusammengebaut abgebildet, nur zur Veranschaulichung. Das Set wird in Einzelteilen geliefert und muss zusammengebaut werden. Bitte lesen Sie die Montageanleitung im Abschnitt unten.
- Diese Halterung ist NICHT mit den S6-Montageverlängerungen kompatibel. Die zusätzlichen Hörner müssen einzeln montiert werden.
VERDECKT MIT EINER EXTRAPORTION LUFT
Erregen Sie Aufmerksamkeit mit dem „5-Gallon Stealth Spare Tire Delete Train Horn Kit“ - Ihrer Komplettlösung für kraftvollen Sound, der die Straße beherrscht. Dieses Komplettset ist für den nahtlosen Einbau am Platz des Reserverads konzipiert und liefert den charakteristischen Drucklufthorn-Klang, den Sie erwarten, mit einer eleganten und unauffälligen Installation.
Mit einem 5-Gallonen-Lufttank bietet dieses Kit eine größere Luftkapazität, damit Ihre Hörner länger hupen. Zusammen mit unseren äußerst beliebten Shocker XL-Drucklufthörnern und dem 544K-Bordluftsystem ist es perfekt, damit Sie gehört werden, wenn es am wichtigsten ist.
- Komplettes Drucklufthorn-Kit: Enthält alles, was Sie brauchen - Drucklufthörner, 5-Gallonen-Lufttank, Kompressor, sämtliches Montagematerial und mehr.
- Verdeckte Installation: Passt ordentlich an den Platz des Reserverads und sorgt für einen aufgeräumten, unauffälligen Look.
- Enorme Luftkapazität: Der 5-Gallonen-Tank bietet etwa 10-12 Sekunden Hupdauer und zuverlässige Leistung.
- Leistungsstarker Klang: Entwickelt, um den kraftvollen, authentischen Zughornklang zu erzeugen, den Sie erwarten.
- Vielseitiges Luftsystem: Zum Hupen, Aufpumpen von Reifen oder Betreiben kleiner Druckluftwerkzeuge.
Das 5-Gallonen-Stealth-Zughorn-Set zum Entfernen des Reserverads liefert alles, was Lkw-Besitzer und Enthusiasten benötigen, um sich auf der Straße bemerkbar zu machen - mit unübertöntem Klang und Funktionalität.
Wichtige Hinweise:
-
Passend für die meisten Pick-ups und SUVs in voller Größe.
- Das Reserverad-Entfernungsset ist oben zusammengebaut abgebildet, nur zur Veranschaulichung. Das Set wird in Einzelteilen geliefert und muss zusammengebaut werden. Bitte lesen Sie die Montageanleitung im Abschnitt unten.
- Diese Halterung ist NICHT mit den S6-Montageverlängerungen kompatibel. Die zusätzlichen Hörner müssen einzeln montiert werden.
OUT OF SIGHT. IMPOSSIBLE TO IGNORE.
YOUR SPARE'S SPACE.
A WHOLE NEW SOUND.
Four Shocker XL horns. A complete onboard air system. One low-profile bracket that puts it all in the spare tire well.
OUT OF SIGHT
The Stealth bracket places the horn bells higher in the spare tire well and points them outward on both sides.
ALL-IN-ONE SOLUTION
Horns, bracket, tank, compressor, valve, wiring and fittings come together. Assembly and installation are required.
THE STEALTH LAYOUT
BIG SOUND.
SMALLER VISUAL FOOTPRINT.
The difference is where the hardware goes. Explore the three parts of the system before choosing your tank.
THE COMPLETE STEALTH SYSTEM
ILLUSTRATED EXTERIOR · 2-GALLON SYSTEM
ILLUSTRATED EXTERIOR · 2-GALLON SYSTEMTHE BRACKET
IS THE DIFFERENCE.
A purpose-built mounting platform replaces the spare tire. Its low-profile arrangement tucks the horn bells upward instead of letting them hang below the bracket.
Designed for most full-size pickups and SUVs. Verify your vehicle's available space.
FOUR HORNS.
BOTH SIDES.
Shocker XL train horns point outward on either side of the bracket. Both tank options use the same horns, so tank size isn't a choice between two different horn sounds.
TRY THE SOUND ↓AIR SUPPLY.
BUILT INTO THE PLAN.
The 2-gallon system pairs a 6-port tank with the 3Q compressor. The 5-gallon system uses an 8-port tank and the 1NM compressor. Choose around capacity and clearance.
COMPARE THE SYSTEMS ↓SAME SHOCKER XL VOICE. EITHER TANK.
HIDDEN HARDWARE.
UNMISTAKABLE SOUND.
Press and hold for the actual Shocker XL sample.
Start with your volume low.
Press with touch or mouse, or hold Space / Enter.
STANDARD AUDIO PLAYER
03 / Choose your air system
MEASURE FIRST.
THEN CHOOSE YOUR AIR.
Both systems share a 27″ × 21″ assembled footprint. The 5-gallon option adds tank capacity and 4″ of assembled height.
Medium-duty option
2-Gallon Tank
- Compressor
- HornBlasters 3Q
- Tank
- 2-gallon / 6 ports
- Assembled size (L × W × H)
- 27″ × 21″ × 8″
- Assembled weight
- 50 lbs
Heavy-duty option
5-Gallon Tank
- Compressor
- HornBlasters 1NM
- Tank
- 5-gallon / 8 ports
- Assembled size (L × W × H)
- 27″ × 21″ × 12″
- Assembled weight
- 57 lbs
Dimensions describe the assembled kit, not a universal fit guarantee. This bracket is not compatible with S6 mounting extensions; additional bells must be mounted individually.
INCLUDED COMPONENTS
WHAT'S IN THE BOX
THE CORE SYSTEM
AIR CONTROL & FILTRATION
- HornBlasters 1/2" Black Widow electric air valve
- 110/150 PSI pressure switch w/ 40 amp relay
- Remote mountable intake filter assembly
- Spare air filter elements
- HornBlasters 200 PSI stainless steel liquid-filled air gauge
- Brass NPT fittings kit including a safety blow-off & drain cock
AIR LINE & WIRING
INSTALLATION ESSENTIALS
- Complete wiring kit with fuse holder & fuses
- Mounting hardware
- 2-Gallon instructions / 5-Gallon instructions
SPECIFICATIONS & FILL RATES
THE NUMBERS BEHIND THE KIT
Choose a configuration to see its specifications and fill rates.
- Part Number
- HK-STEALTH
- Operating Pressure
- 150 PSI
- Restart Pressure
- 110 PSI
- Voltage
- 12-Volt DC
- Max Amp Draw
- 20-22 Amps
- Horn
- Shocker 4 train horn kit
- Horn Material
- High-impact fiberglass reinforced ABS
- Horn Measurements
- № 1 19.50″ (495.30 mm)
№ 2 16.25″ (412.75 mm)
№ 3 14.75″ (374.65 mm)
№ 4 12.75″ (323.85 mm)
- Air Tank
- HornAir 2-gallon 6 port air tank
- Average Fill Time
- 60-70 seconds
- Air Flow
- 1.41 CFM
- Assembled Length
- 27" (685.8 mm)
- Assembled Width
- 21" (533.4 mm)
- Assembled Height
- 8" (203.2 mm)
- Assembled Weight
- 50 lbs
FILL RATES / 2-GALLON TANK
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 3 min. 59 sec. (± 10 sec.) |
| 110 to 150 PSI | 1min. 33 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
- Part Number
- HK-STEALTH-5
- Operating Pressure
- 150 PSI
- Restart Pressure
- 110 PSI
- Voltage
- 12-Volt DC
- Max Amp Draw
- 25 Amps
- Honk Time
- 10-12 Seconds
- Horn
- Shocker XL train horn
- Horn Material
- High-impact fiberglass reinforced ABS
- Horn Measurements
- № 1 19.50″ (495.30 mm)
№ 2 16.25″ (412.75 mm)
№ 3 14.75″ (374.65 mm)
№ 4 12.75″ (323.85 mm) - Air Tank
- 5-gallon 8-port air tank
- Average Fill Time
- 2 Minutes
- Air Flow
- 1.41 CFM
- Assembled Length
- 27" (685.8 mm)
- Assembled Width
- 21" (533.4 mm)
- Assembled Height
- 12" (304.8 mm)
- Assembled Weight
- 57 lbs
FILL RATES / 5-GALLON TANK
| 5.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
| 110 to 150 PSI | 2 min. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
WARRANTY & POLICIES
BUY WITH CONFIDENCE
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
The horns come with a lifetime manufacturer’s defect warranty, and all other components carry a 2-year manufacturer’s defect warranty. -
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
-
Money-Back Guarantee/Refund Policy
All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly. -
Warranty
The horns come with a lifetime manufacturer’s defect warranty, and all other components carry a 2-year manufacturer’s defect warranty. -
HornBlasters.com Satisfaction Guarantee
HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing. -
Cross-Shipments
HornBlasters.com will not cross-ship returned merchandise. -
Physical Damage Policy
Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.
Hearing Protection Required
This product produces extreme loudness. Proper hearing protection must be worn at all times during its operation. Hearing loss or permanent damage may result from unsafe use. Use this product in a safe and responsible manner and at a distance of at least 100 meters from others. Never operate this product in a closed environment, in close proximity to living beings, or where prohibited by law.
Warning (Prop 65)
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
