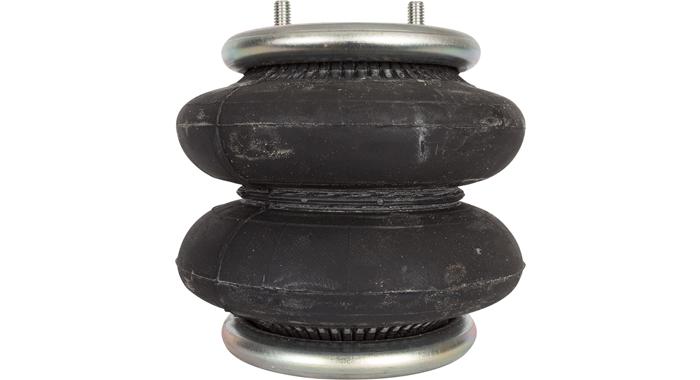

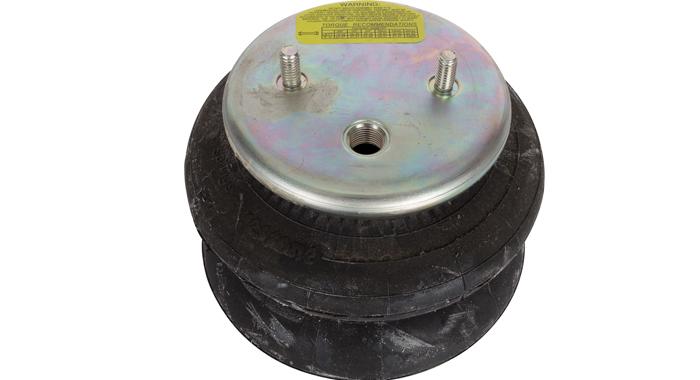

Firestone 1/2" 224C 2600 Style Air Bag

6" Stroke - 8" Diameter


2 reviews

Suggested Addons

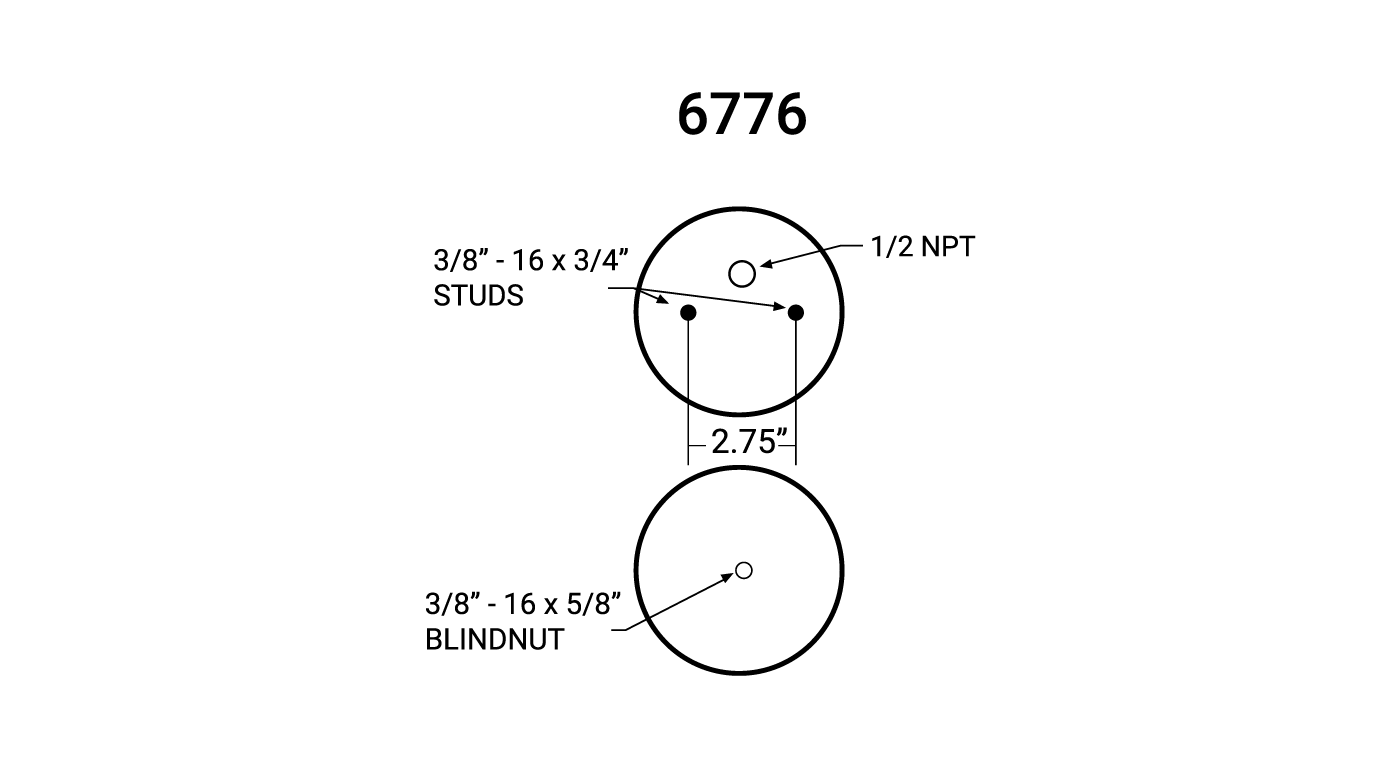

A time tested and trusted airbag, the Firestone 224C 2600 Ride Rite airbag features a single high-flow 1⁄2″ port for quick inflation and heavy-duty two-ply walls for increased durability. With a minimum height of 3 inches and a maximum height of 9 inches, the Firestone 1/2" 224C 2600-Style Air Bag provides a great range of 6 inches, giving you a smooth ride at any height. At an inflated diameter of 8″, the Firestone air ride suspension is most suitably used in vehicles where suspension space isn’t a limitation.  The Firestone 224C Ride Rite 2600 airbags that we carry have a single 1/2" pilot port on the bottom. All 2600-Style bags have a 2.75” distance between the mounting bolts.

Firestone air springs feature a limited lifetime warranty. They're covered for life as long as you install them on just one vehicle and provided you do not buy or sell the vehicle while the springs are installed. You really can't beat this! Install them on your truck and you've got a set for life! (Does not cover rubbing!)

  • Double Ply Construction
  • Replacement For Ride-Right Systems
  • One Firestone 224c 1/2" Air Bag
  • Part Number: AB-224
  • Ports: Single 1/2"
  • Min. Height: 3" (76.2 mm)
  • Installed Height: 5"-5.5" (127 mm - 139.7 mm)
  • Max Height: 9" (228.6 mm)
  • Diameter(Inflated): 8" (203.2 mm)
  • Money-Back Guarantee/Refund Policy
    All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
  • Warranty
    This Air Bag is backed with Firestone's Life Time Manufactures Defect Warranty!
  • satisfaction guarantee offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
  • Cross-Shipments will not cross-ship returned merchandise.
  • Physical Damage Policy
    Physical damage to any product purchased at will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

Warnings & Notices

Safety warning icon

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to

Customer Reviews

5.0 Based on 2 Reviews
5 ★
4 ★
3 ★
2 ★
1 ★
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
Jimmy F.
United States United States

Air lift

I work in an industrial surrounding but incorporate different ideas into the machinery we install. We use these air bags to raise product from one level to another level with stable control. Works great, this particular application we are going to elevate machinery so it can function on different heights to eliminate buying another machine and cut down on the footprint of the line. Excited to see how the project goes, the air lift looks amazing. Delivery was exceptional fast.


Happy customer

Everything was quick and easy!
