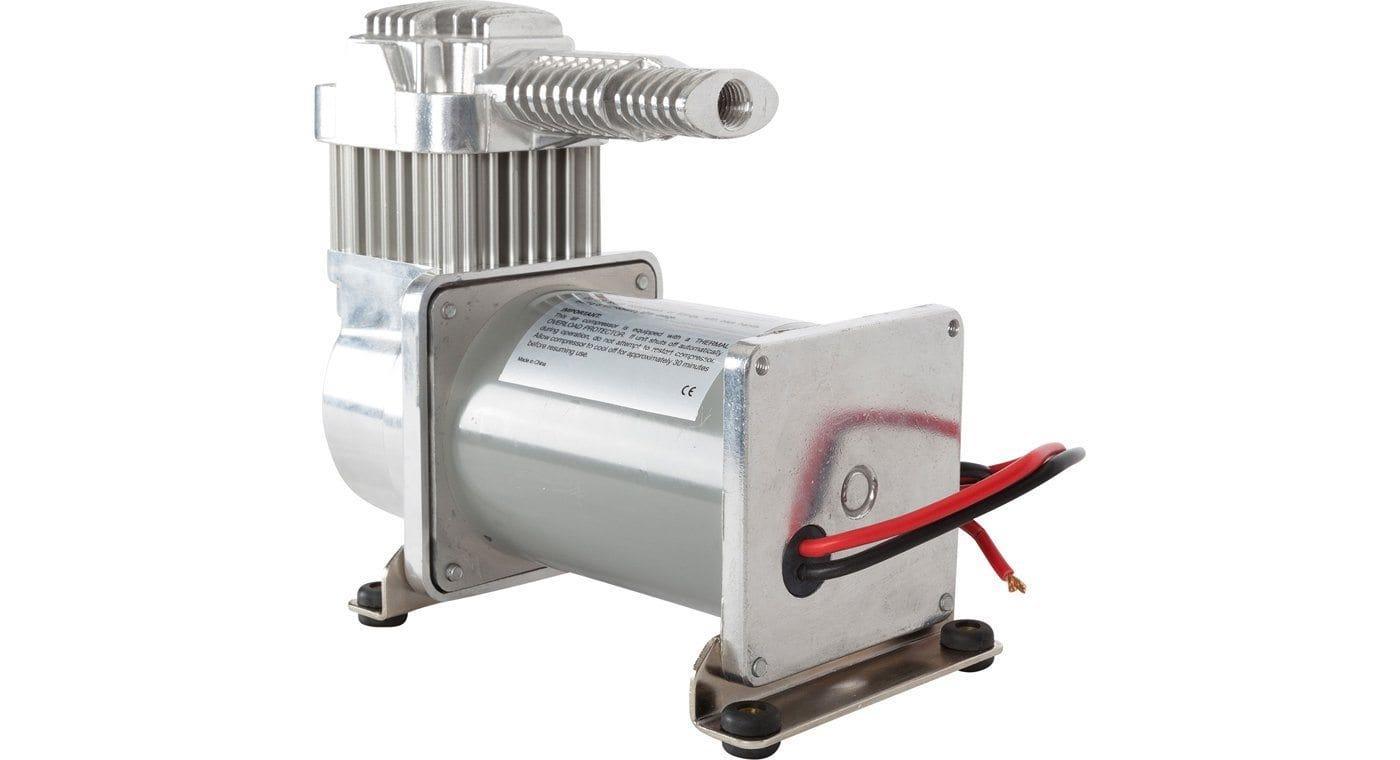

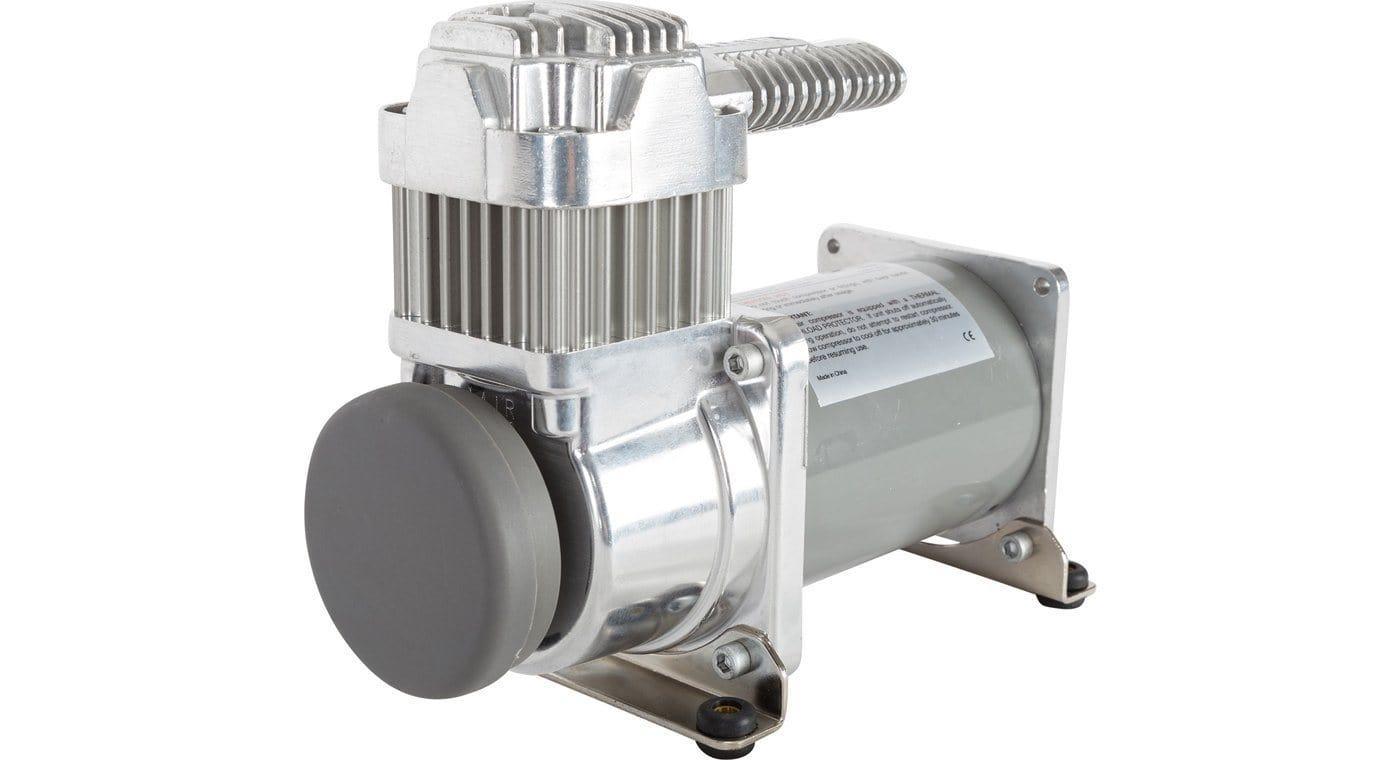

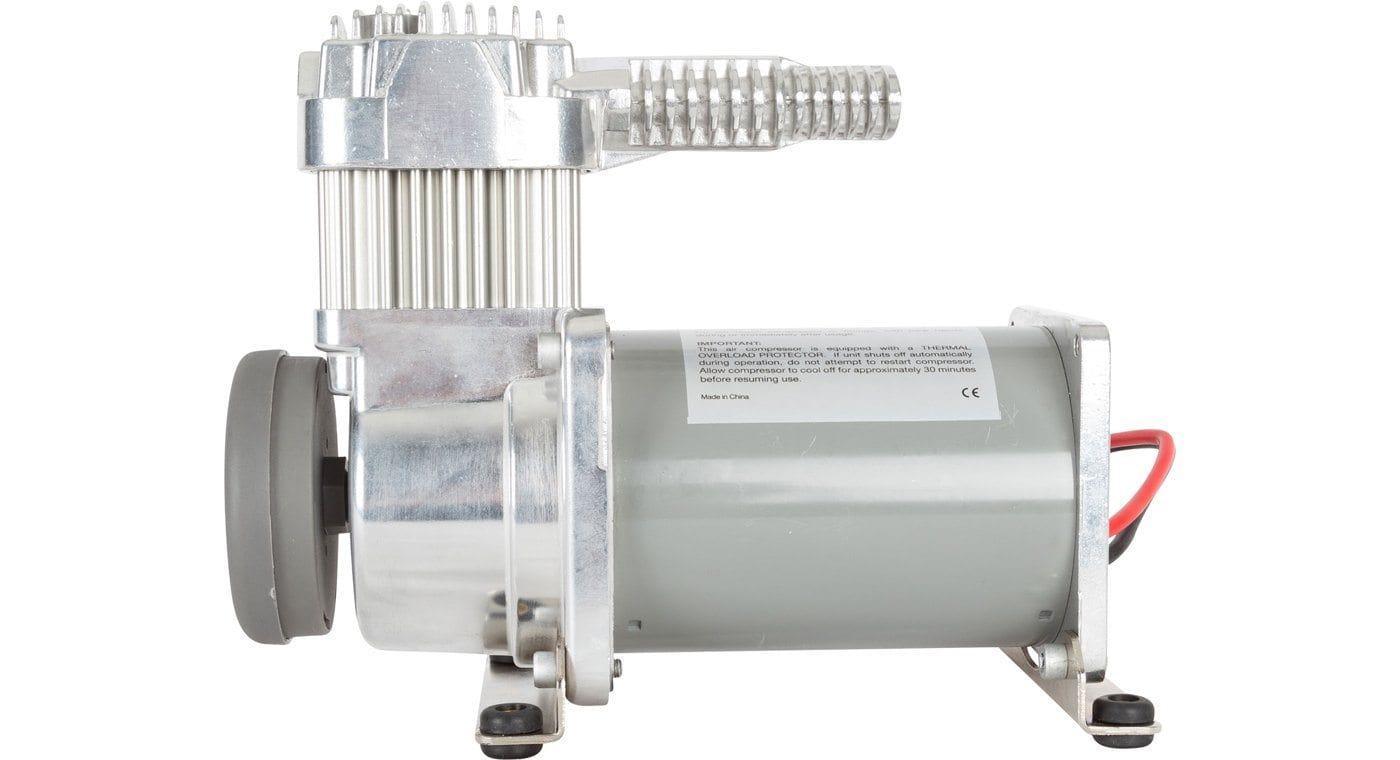

Viair 250C IG Industrial 24 Volt Air Compressor
AC-250IG-24
$227.50
Overview
Viair’s entry-level industrial compressor now comes in a 24-volt option! The Viair 250C IG Industrial 24-Volt Air Compressor is a constant duty mobile compressor that is designed to continue running strong even through the harshest of conditions. The Viair 250C IG Industrial 24-Volt Air Compressor will fill an air tank up to 2.5 gallons in size and can safely maintain up to 150 PSI of pressure. With a 100% duty cycle up to 100 PSI, the Viair 250C IG Industrial 24-Volt Air Compressor is right at home powering an onboard air system that runs air horns or air suspension. The Viair 250C IG Industrial 24-Volt Air Compressor produces 1 CFM while only pulling 6 amps from the battery and will recharge a 2.5-gallon tank from 110-145 PSI in just over 2 minutes and 15 seconds.
The Viair 250C IG Industrial 24-Volt Air Compressor is specifically designed to fill air reservoir tanks and features a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. Additionally, the Viair 250C IG Industrial 24-Volt Air Compressor is equipped with a separate stainless steel braided PTFE-lined leader hose and check valve assembly that protects the compressor against high amperage restarts.
**24-volt compressors should always be wired to a 24-volt electrical system. Failure to do so can cause serious damage and void your warranty.**
Performance Data / Fill Rates
| 24-VOLT COMPRESSOR | |||||
|---|---|---|---|---|---|
| PSI | CFM | A | BAR | LPM | A |
| 0 | 1.00 | 3 | 0 | 28.3 | 3 |
| 10 | 0.88 | 3 | 1.0 | 24.4 | 3 |
| 20 | 0.84 | 4 | 2.0 | 22.2 | 4 |
| 30 | 0.78 | 4 | 3.0 | 19.7 | 4 |
| 40 | 0.71 | 4 | 4.0 | 17.7 | 5 |
| 50 | 0.67 | 5 | 5.0 | 16.1 | 5 |
| 60 | 0.61 | 5 | 6.0 | 14.6 | 5 |
| 70 | 0.58 | 5 | 7.0 | 13.2 | 6 |
| 80 | 0.54 | 5 | 8.0 | 11.7 | 5 |
| 90 | 0.51 | 5 | 9.0 | 10.3 | 5 |
| 100 | 0.47 | 6 | 10.0 | 8.8 | 5 |
| 110 | 0.44 | 6 | |||
| 120 | 0.40 | 6 | |||
| 130 | 0.36 | 5 | |||
| 140 | 0.33 | 5 | |||
| 150 | 0.29 | 5 | |||
* Supply Voltage: 28.0 Volts
| 24-VOLT COMPRESSOR | |
|---|---|
| 1.0 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 1 min. 45 sec. (± 10 sec.) |
| 85 to 105 PSI | 26 sec. (± 05 sec.) |
| 0 to 145 PSI | 2 min. 45 sec. (± 10 sec.) |
| 110 to 145 PSI | 55 sec. (± 10 sec.) |
| 2.5 GALLON TANK | FILL RATE |
| 0 to 105 PSI | 4 min. 15 sec. (± 10 sec.) |
| 85 to 105 PSI | 1 min. 00 sec. (± 05 sec.) |
| 0 to 145 PSI | 7 min. 00 sec. (± 15 sec.) |
| 110 to 145 PSI | 2 min. 15 sec. (± 10 sec.) |
* Supply Voltage: 28.0 Volts
Diagrams / Manuals
- Viair 250C Industrial Grade Air Compressor Manual
- Viair 250C Industrial Grade Air Compressor Wiring Diagram
- Viair 250C Industrial Grade Air Compressor Dimensional Drawing
Features
- Revolutionary Heat Dissipation Head Design
- 24 Volt
- Industrial Grade & CE Spec.
- Permanent Magnetic Motor
- Oil-less Design
- High-Performance PTFE Piston Ring
- Stainless Steel Valves
- Moisture & Dirt Resistant
- Gearless Direct Drive Motor
- Anodized Aluminum Alloy Cylinder
- Automatic Reset Thermal Overload Protector
- Mounting Plates with Vibration Isolators
- Stainless Steel 1/4" Braided Leader Hose
- Remote Mountable Intake Filter Assembly
- Insulated Wiring with Connectors

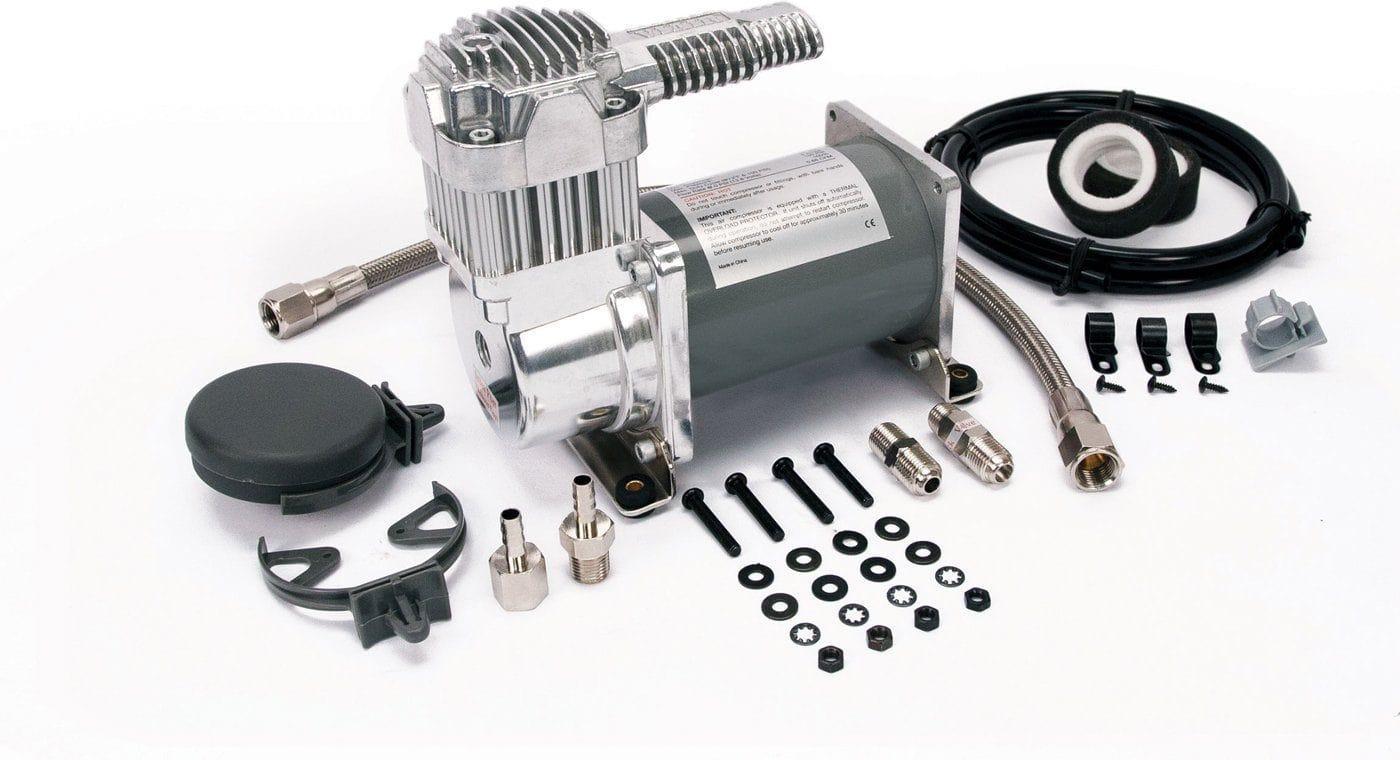

Includes
- Viair 250-IG 24 Volt Air Compressor
- 1/4" NPT Braided Leader Hose & Check Valve
- Two-Stage Air Filter
- Replacement Filter Elements
- 1 Year Manufactures Defect Warranty
- Mounting Hardware
Specifications
- Part Number: AC-250IG-24
- Voltage: 24 Volts DC
- Max Amperage: 6 Amps
- Maximum Duty Cycle: 100% @ 100 PSI
- Maximum Pressure: 150 PSI
- Max Tank Size: 2.5 Gallon
- CFM @ 0 PSI: 1.00 CFM
- CFM @ 100 PSI: 0.51 CFM
- Length: 7.4″ (187.96 mm)
- Width: 3.9″ (99.06 mm)
- Height: 6.75″ (171.5 mm)
- Weight: 6.75 lb (3.06 Kg)
