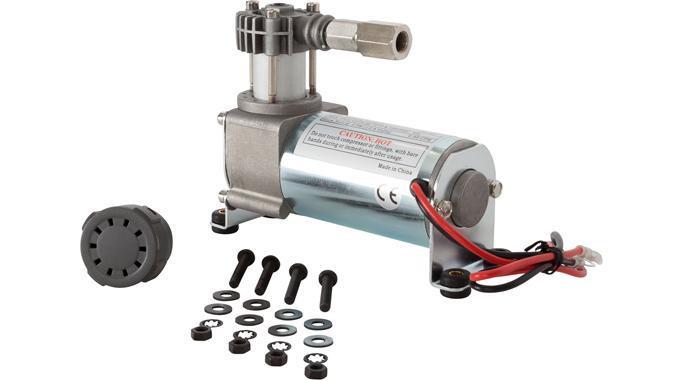

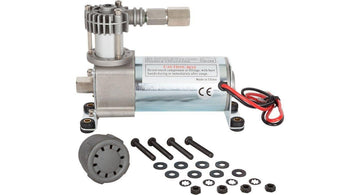

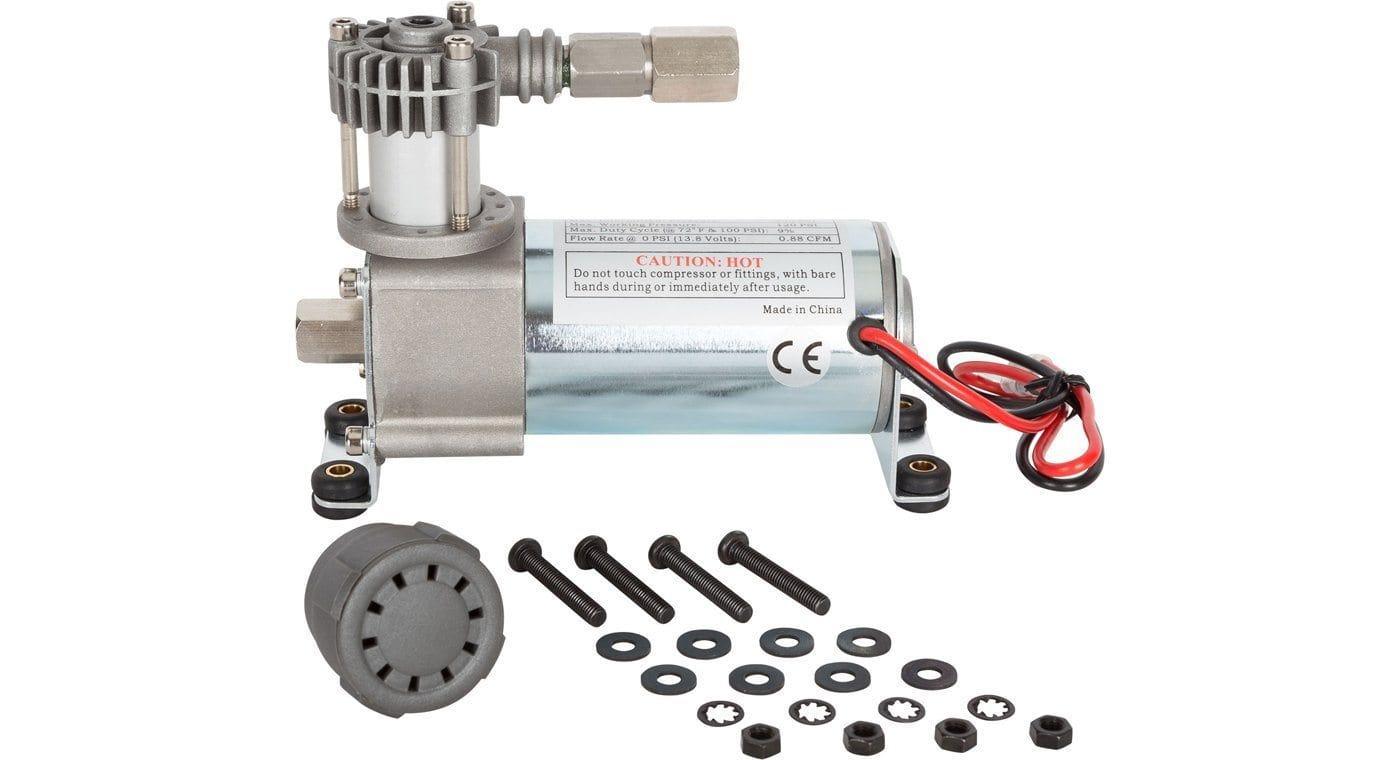

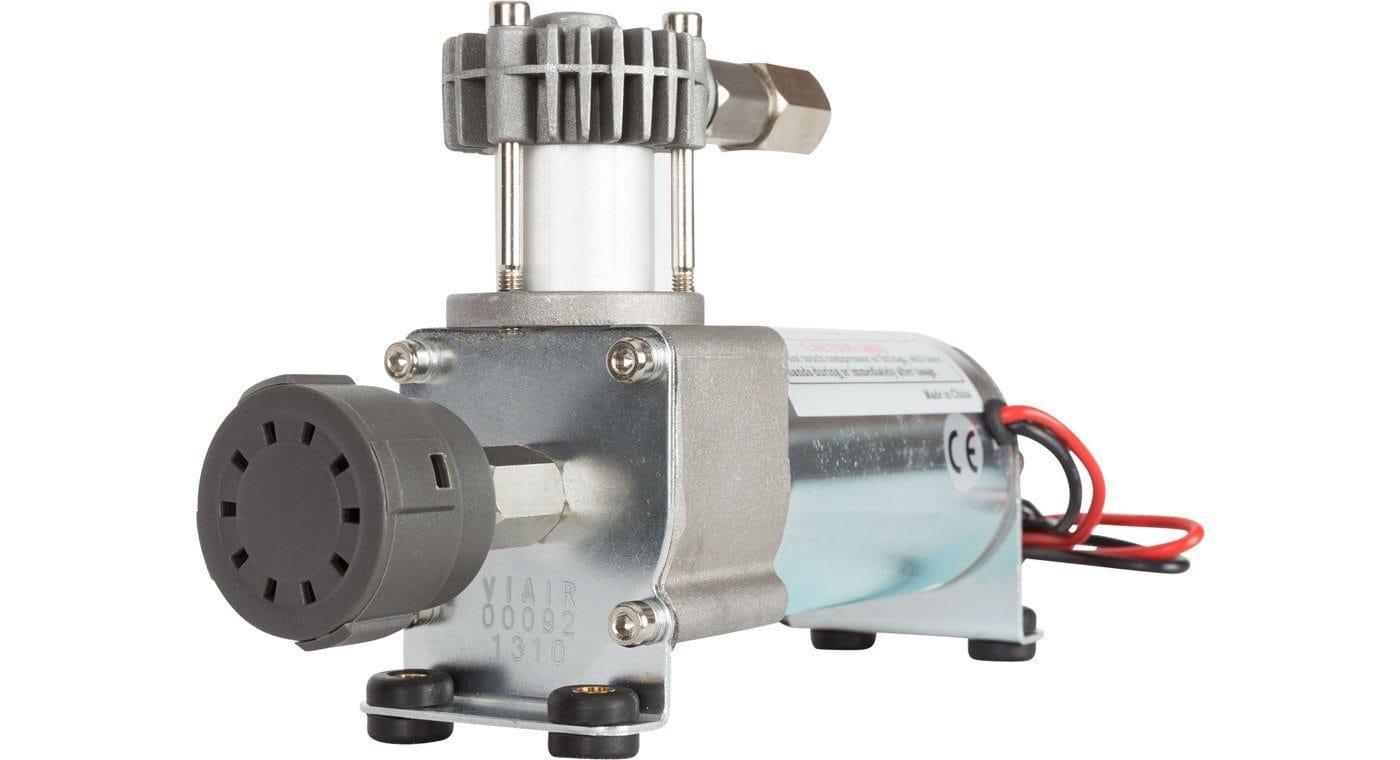

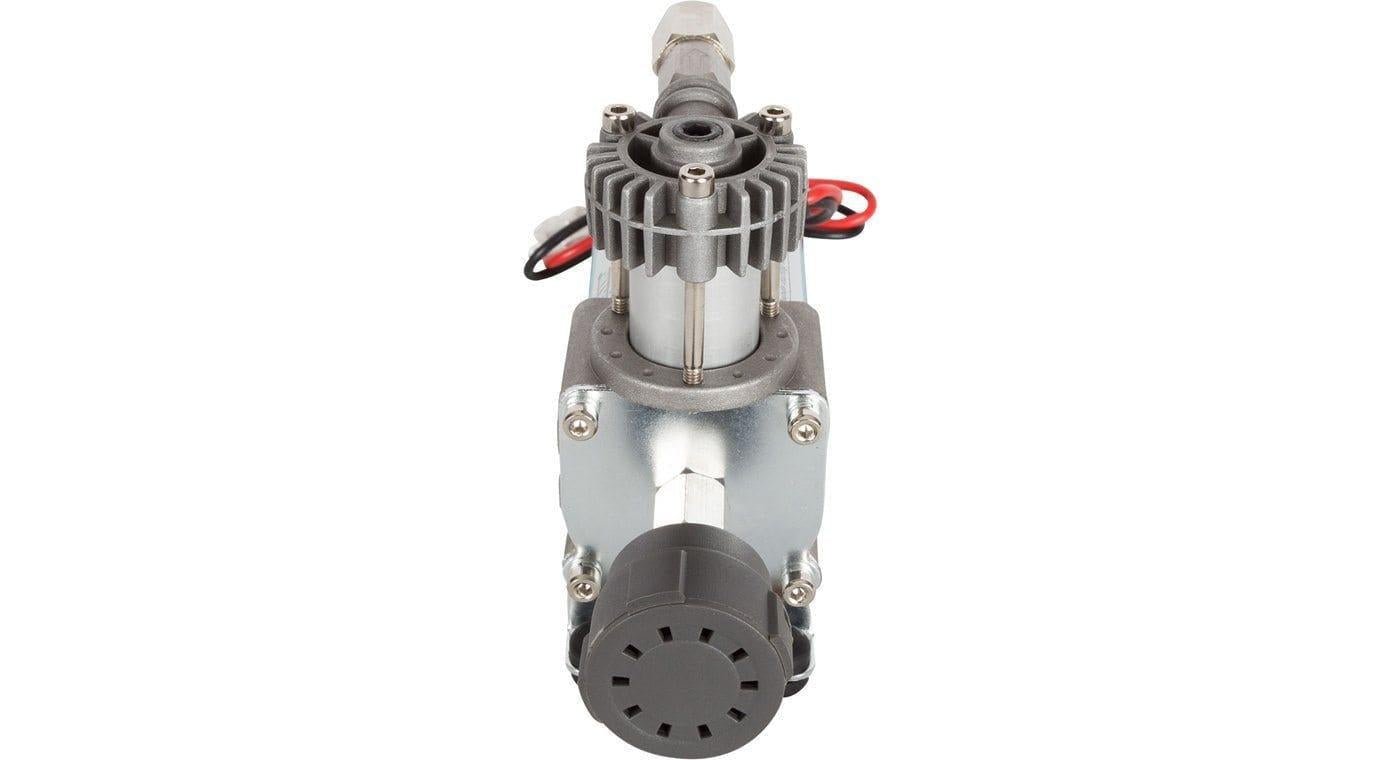

Viair 92C Silver Air Compressor

(Light Duty – 120 PSI / 1.03 CFM)

AC-92

$87.25

Overview

Perfect for light-duty mobile pneumatic applications where space is limited, the 00092 Viair 92 Silver Air Compressor is well suited for things like air suspension for motorcycles and air lockers. Extremely powerful for its size, the Viair 92 Silver Air Compressor produces 1.03 Cubic Feet per Minute and can recharge a 1-gallon tank from 90-120 PSI in only 54 seconds while only pulling 10 amps. The Viair 92 Silver Air Compressor comes with an air filter included, increasing performance and longevity. As a testament of what you can do with a small compressor this powerful, the Viair 92 Silver Air Compressor was featured in the First Robotics Competition.

Performance Data / Fill Rates

PSI	CFM	A	BAR	LPM	A
0	1.03	7	0	29.0	7
10	0.71	8	1.0	19.0	8
20	0.67	8	2.0	18.0	9
30	0.64	9	3.0	18.7	9
40	0.60	9	4.0	15.0	10
50	0.57	9	5.0	13.5	10
60	0.53	10	6.0	12.5	10
70	0.48	10	7.0	11.0	10
80	0.45	10	8.0	10.0	9
90	0.43	10
100	0.39	9
110	0.36	9
120	0.34	9

* Supply Voltage: 13.8 Volts

0.5 GALLON TANK	FILL RATE
0 to 105 PSI	1 min. 08 sec. (± 05 sec.)
85 to 105 PSI	16 sec. (± 03 sec.)
0 to 120 PSI	1 min. 23 sec. (± 05 sec.)
90 to 120 PSI	27 sec. (± 03 sec.)
1.0 GALLON TANK	FILL RATE
0 to 105 PSI	2 min. 20 sec. (± 10 sec.)
85 to 105 PSI	35 sec. (± 05 sec.)
0 to 120 PSI	3 min. 04 sec. (± 10 sec.)
90 to 120 PSI	54 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Diagrams / Manuals

Features

Permanent Magnetic Motor
Oil-less Design
High-Performance PTFE Piston Ring
Stainless Steel Valves
Moisture & Dirt Resistant
Gearless Direct Drive Motor
Anodized Aluminum Alloy Cylinder
Automatic Reset Thermal Overload Protector
Mounting Plates with Vibration Isolators
Remote Mountable Intake Filter Assembly
Insulated Wiring with Connectors

Includes

Viair 92c Air Compressor
Mounting Hardware
Installation Instructions
Direct Mount Air Filter Assembly

Specifications

Part Number: AC-92
Voltage: 12 Volts DC
Max Amperage: 10 Amps
Duty Cycle: 9% @ 100 PSI
Maximum Pressure: 120 PSI
Ingress Protection Rating: IP54
Max Tank Size: 1 Gallon
CFM @ 0 PSI: 1.03 CFM
CFM @ 100 PSI: 0.39 CFM
Length: 7.6″ (193.04 mm)
Width: 2.0″ (50.8 mm)
Height: 4.6″ (116.84 mm)
Weight: 2.50 lb (1.13 Kg)
