PLEASE NOTE: Due to high demand and our commitment to maintaining high-quality standards, the Nathan Airchime K5LA will have a lead time of 10-14 days. Tracking information will be provided as soon as it ships.

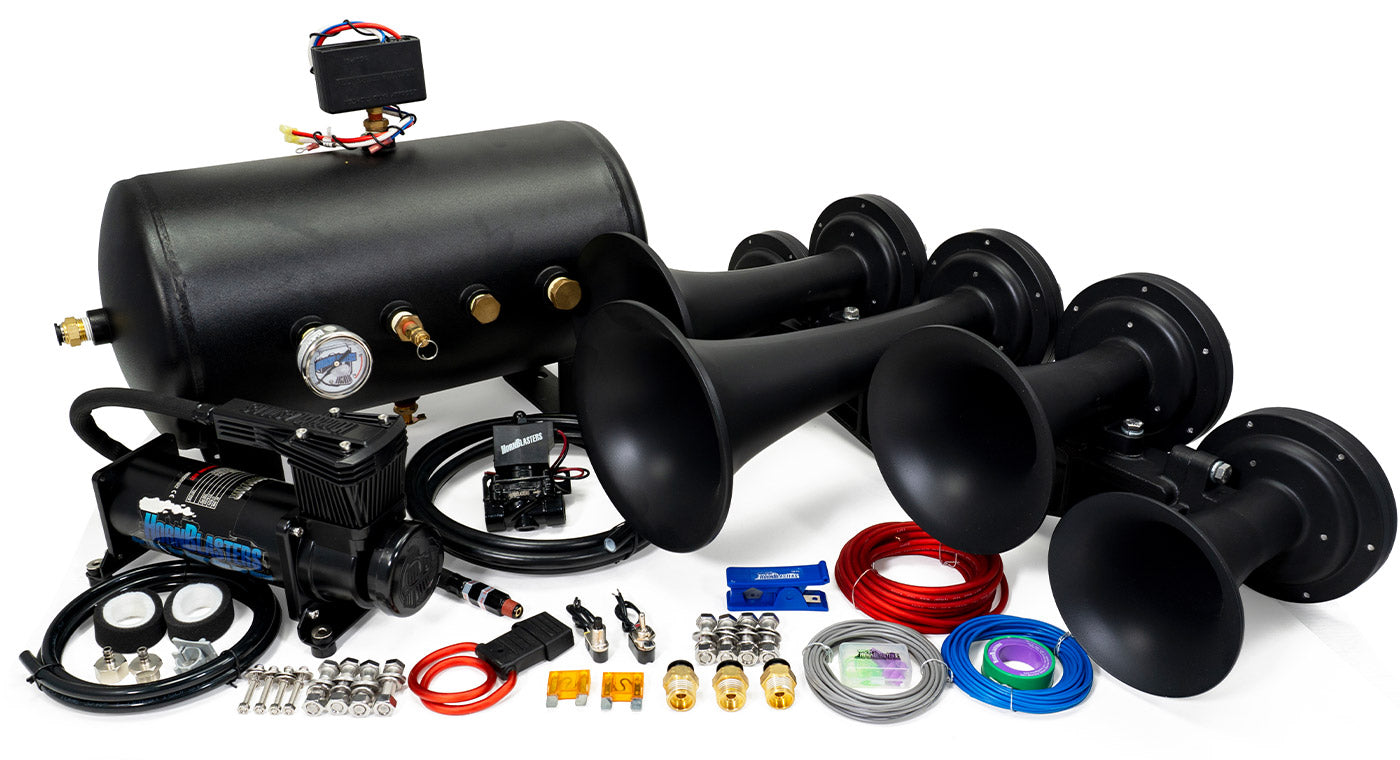

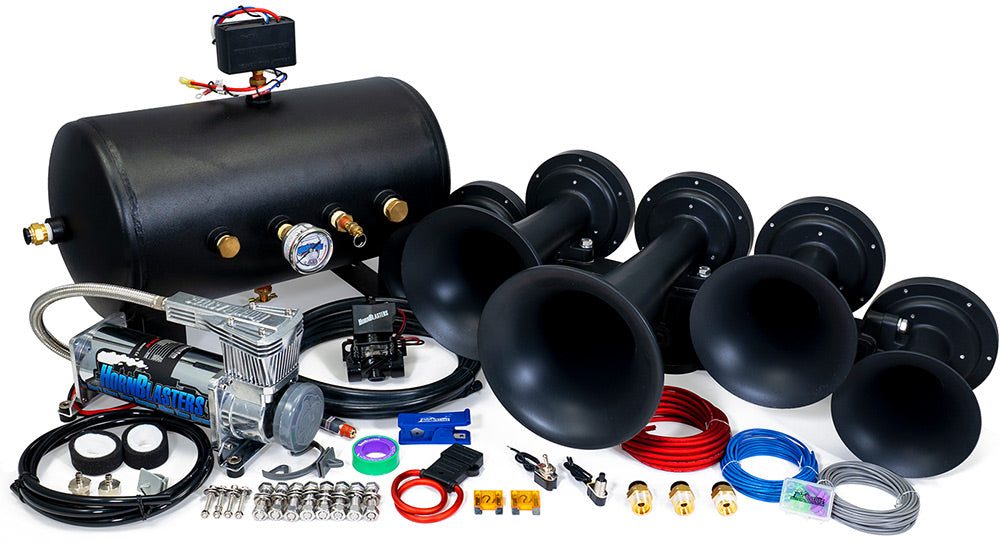

Upgrade your ride with the top-of-the-line Nathan AirChime K5 544K train horn kit. Experience the unmatched loudness and quality of the legendary Nathan AirChime K5LA train horn, the gold standard in train horns. With decades of proven durability and reliability, this 5-chime die-cast horn is still the most widely used train horn today on the railroads. Paired with our heavy-duty 544K onboard air system, this kit gives you the best train horn experience possible.
IMPORTANT: Our Nathan AirChime train horns are sourced from retired locomotives and undergo extensive reconditioning. This process includes sandblasting, a new black powder coat finish, and replacing all internal components such as diffuser rings, diaphragms, and cushion rings. This ensures each horn performs like new and retains its authentic locomotive sound.
Part Number | HK-K5-544K |
Operating Pressure | 150 PSI |
Restart Pressure | 110 PSI |
Voltage | 12-Volt DC |

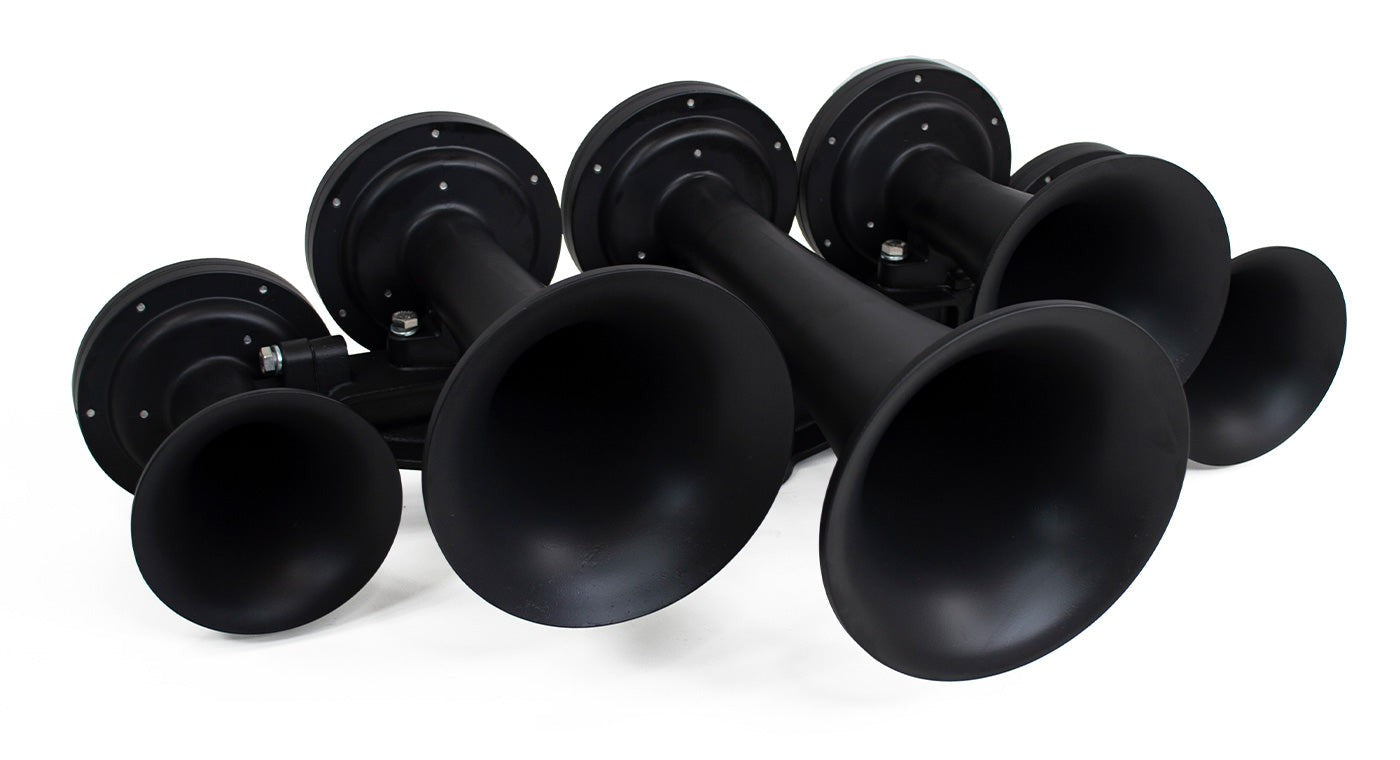

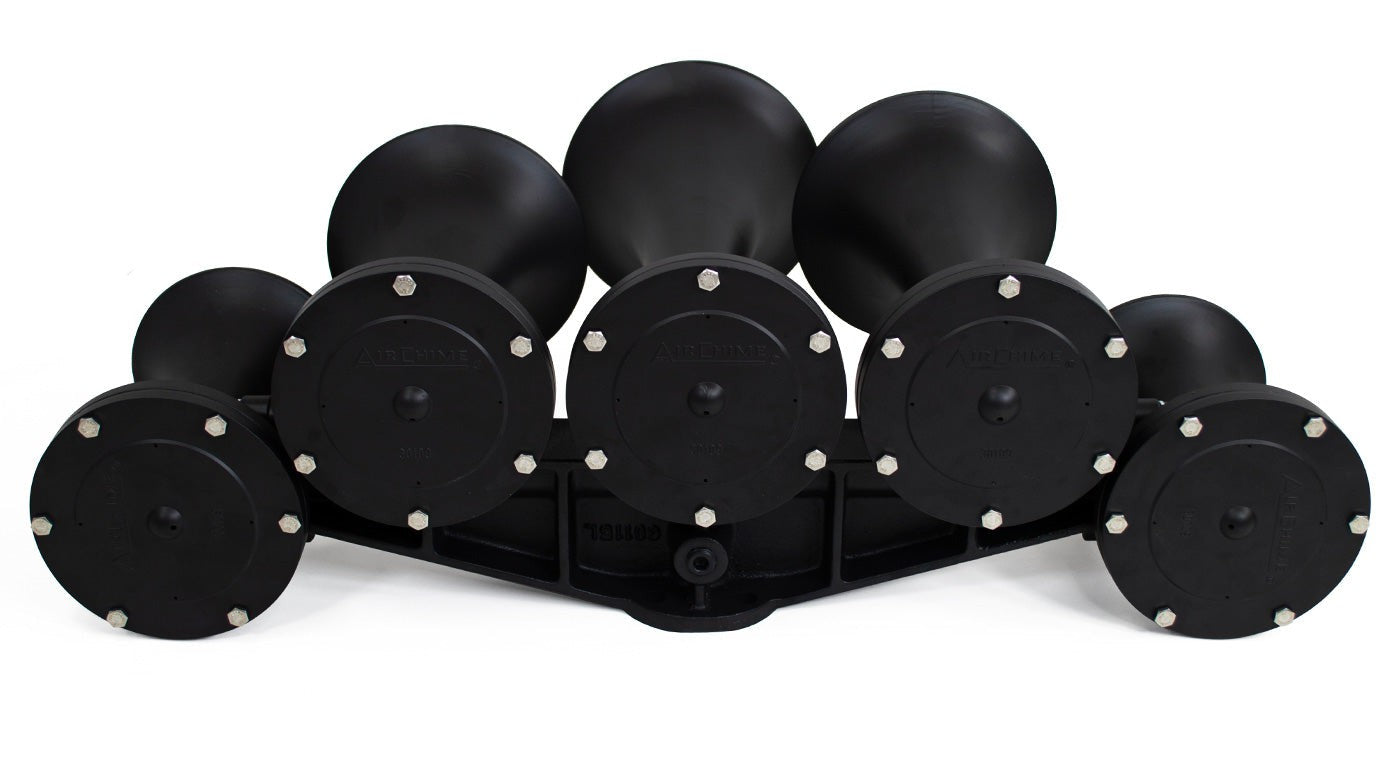

Horn | Nathan AirChime K5LA (K5 low mount American tune) |
Horn Material | Cast Aluminum |
Horn Length | 19″ (482.6 mm) |
Horn Width | 29.75″ (755.65 mm) |
Horn Height | 9.25″ (234.95 mm) |
Horn Weight | 37 lb (16.78 Kg) |
Horn Port | ½″ NPT |

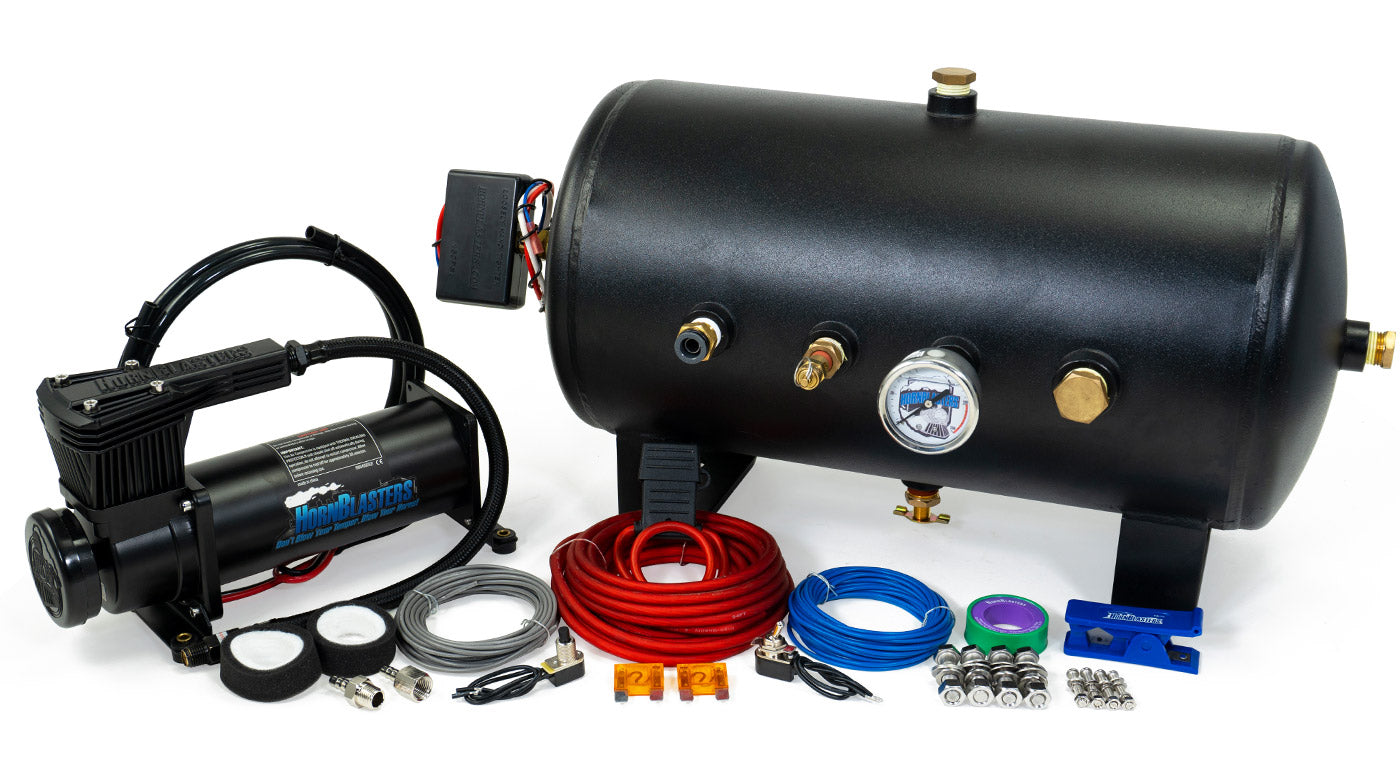

Tank | HornAir 5-gallon 8 port air tank |
Tank Length | 20.5″ (520.7 mm) |
Tank Diameter | 9.5″ (241.3 mm) |
Tank Height | 11.5″ (292.1 mm) (With Legs) |
Tank Weight | 20 lb (9.07 Kg) |
Tank Ports | x7 1/2" NPT, x1 3/4" NPT |
Max Amperage | 26 amps |
Maximum Duty Cycle | 33% @ 100 PSI |
Compressor Length | 9.0″ (228.6 mm) |
Compressor Width | 4.0″ (101.6 mm) |
Compressor Height | 7.05″ (179.07) |
Compressor Weight | 8.00 lb (3.63 Kg) |
5.0 GALLON TANK | FILL RATE |
---|---|
0 to 150 PSI | 6 min. 45 sec. (± 10 sec.) |
110 to 150 PSI | 2 min. (± 05 sec.) |
This product produces extreme loudness. Proper hearing protection must be worn at all times during its operation. Hearing loss or permanent damage may result from unsafe use. Use this product in a safe and responsible manner and at a distance of at least 100 meters from others. Never operate this product in a closed environment, in close proximity to living beings, or where prohibited by law.
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
A bit on the pricy side but it's worth every penny.
These things will wake the dead, and get people to go when they are too busy on their phones to pay attention to a green light. Added with the Goliath spare tire mount, and a dual pump. 🤌� Also, spend the little extra on the auxiliary connection for airing up tires and whatnot….. I’ve used that portion of it so much! Blowing the kids feet off at the beach before they get in the truck. Awesome!
I’ve had my Nathan K5LA setup since 2009, and it has yet to fail me. I added a stealth setup back then (they didn’t exist at the time) so I could detach and mount each bell individually and not be seen. I originally had in my 1989 Chevy caprice, and not I have it mounted on my Chevy Tahoe…two in the grill, and three in the rear. Only thing seen externally is a piece of the air tank, which people assume is for airbags.
OMG!! This Nathan set takes loud to a whole new level!! This is EXACTLY what I wanted!! I use it primarily to provide remedial driver education. It also replaces the dainty little 2 finger wave among Jeep drivers. Customer support was also top shelf. They replaced a defective part in 48 hrs!! Worth every dime!!!!
Installed these on a 2016 Denali HD, very effective for getting the attention of distracted drivers. Highly recommended
