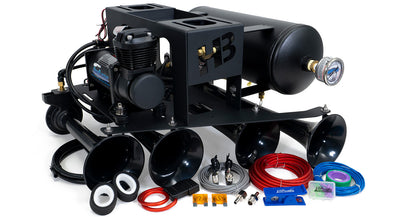

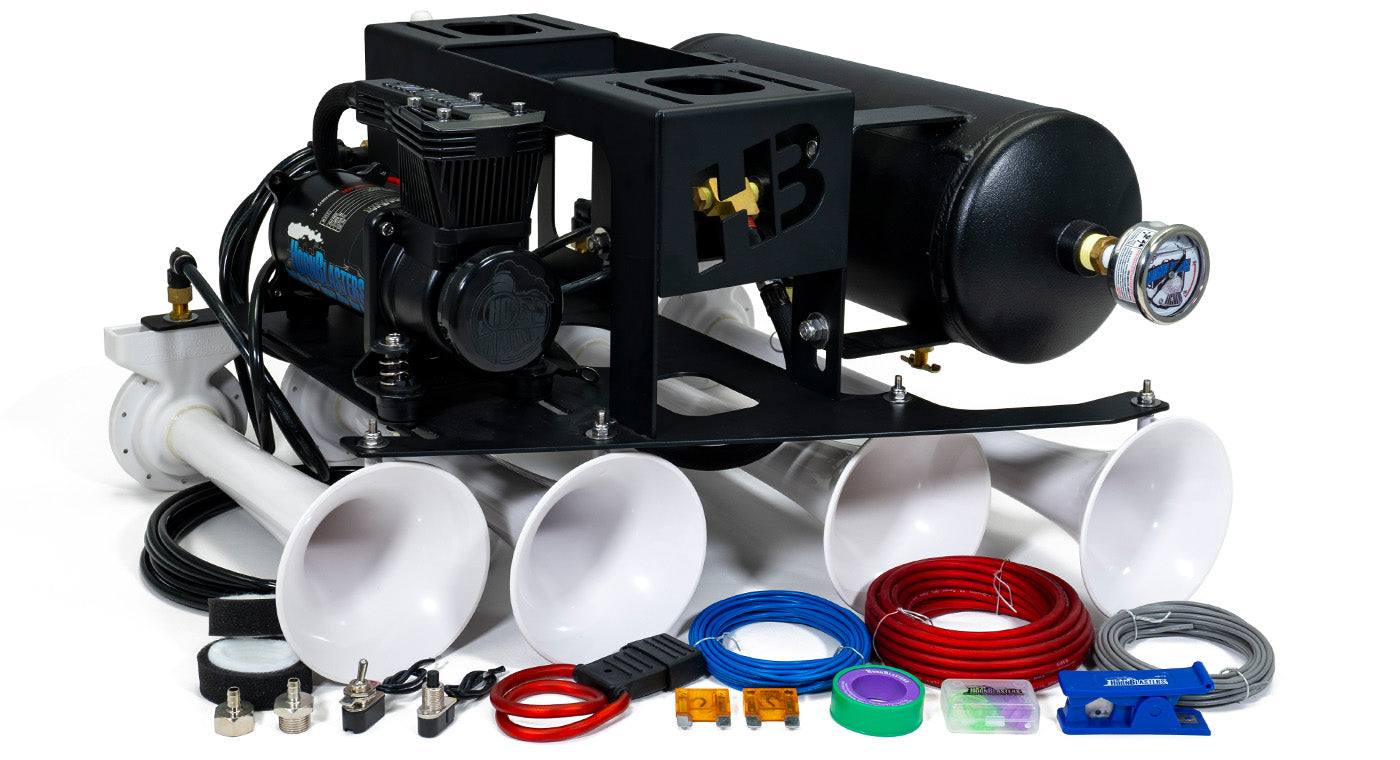

Conductor's Special 232 Spare Tire Delete Kit

Pick up our lowest price Conductor’s Special train horn kit made for our Spare Tire Delete Kit! Our Spare Tire Delete Bracket cuts down install time in half and gives you a clean and compact way to install your Conductor’s Special 232 train horn kit!

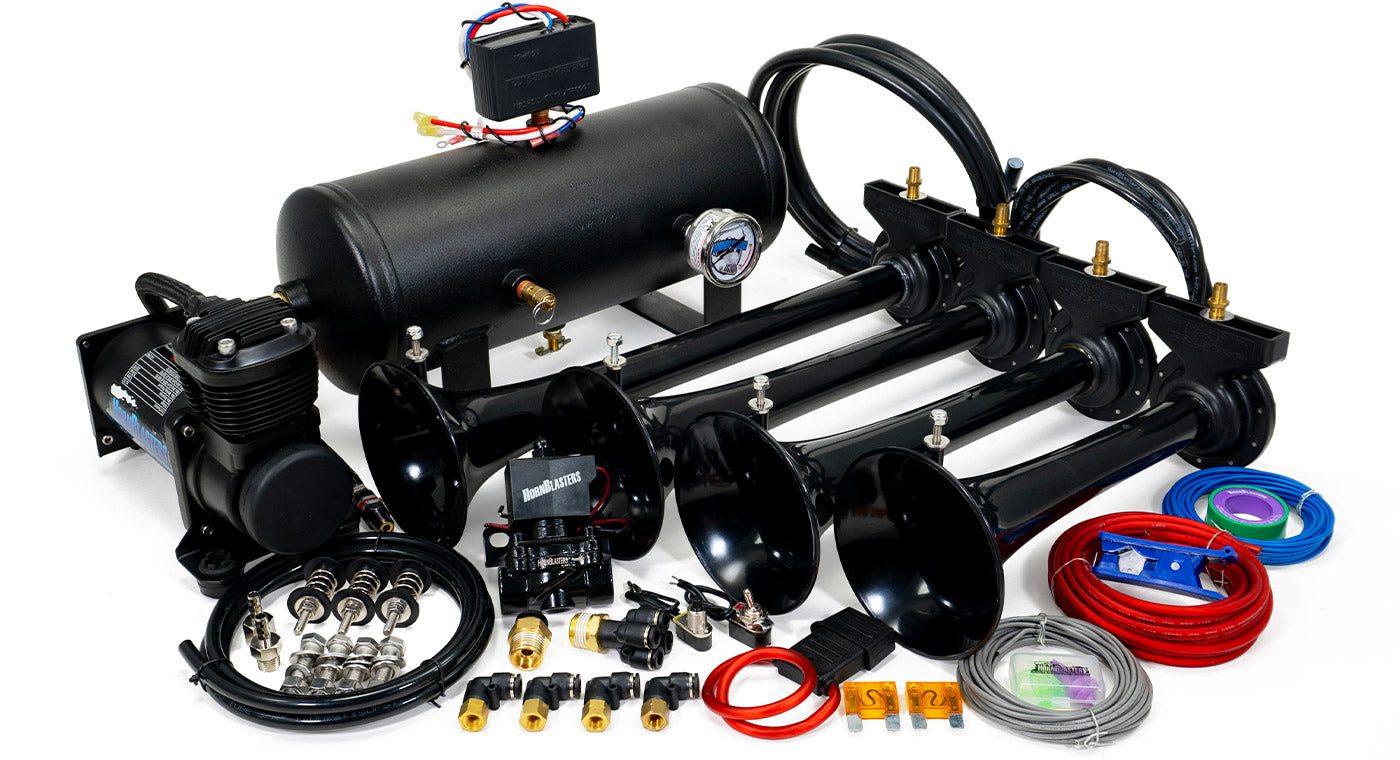

Looking for a huge train horn sound, but don't have space or the budget for a huge set-up? The Conductor’s Special 232 is a complete train horn kit that is designed to be compact and budget-friendly, as well as pack enough punch to knock the sock off of anyone within earshot. The go-to kit for many of our customers, the Conductor’s Special 232 is a universal kit and has been installed on everything from ATV’s to Big Rigs.

Our Shocker XL train horns that come with the Conductor’s Special 232 are some of the loudest horns you can buy, giving you the tone and intensity of a real train horn without having to spend thousands. As four separate bells, the Shocker XL horns are perfect for tight install spaces and when coupled with our HornAir 232 onboard air system make for a train horn kit that you can install almost anywhere on just about anything.

Just because the Conductors Special 232 is budget-friendly, doesn't mean it sacrifices performance. With our weather-resistant 2-gallon air tank and Viair’s 325C air compressor, you get a complete system that is capable of providing a 5-7 second honk time and refilling in less than 2 minutes!

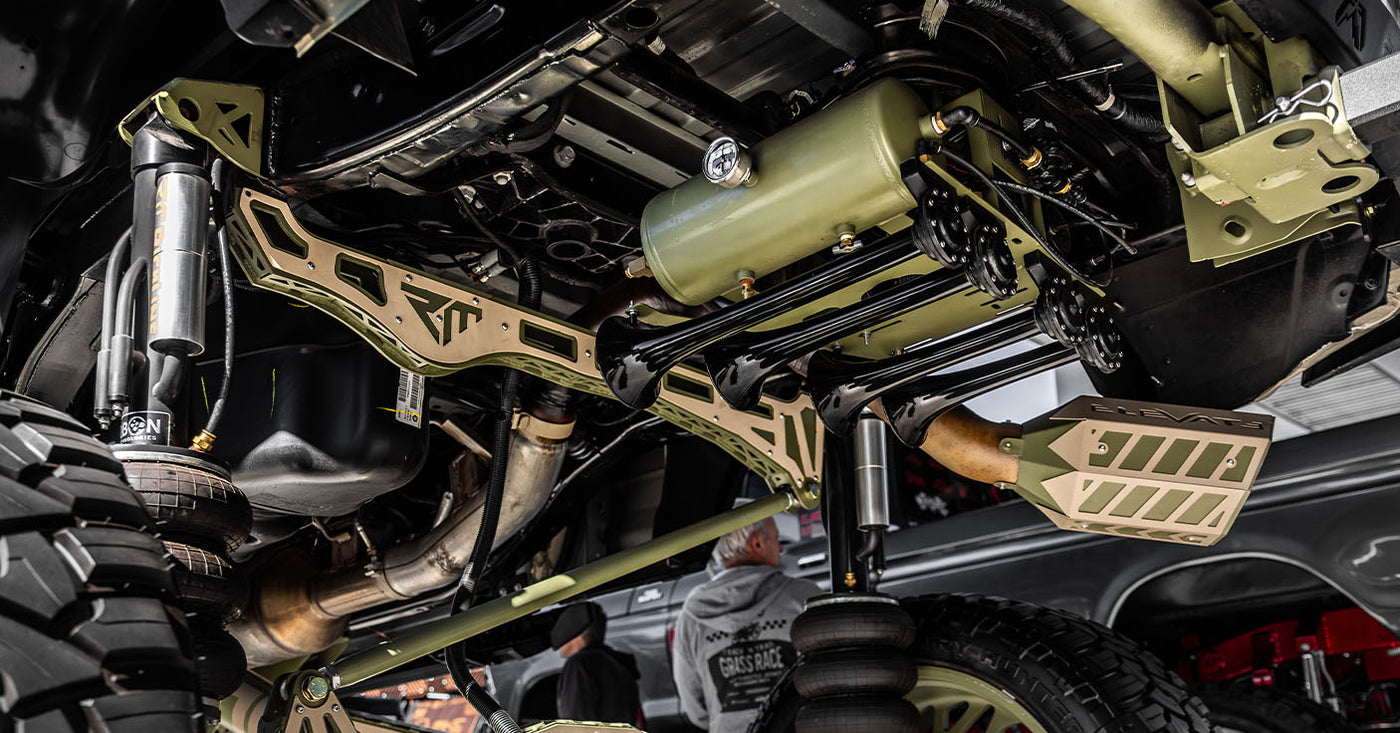

Installing your Conductor’s Special train horn kit has never been easier or cleaner than with the introduction of our Spare Tire Delete brackets. All full-size truck owners and plenty of mid-sized truck owners are ditching their factory spare tire in favor of one of our Spare Tire Delete brackets for their train horn kit. Not only does this bracket make any install look like a professional install but it also saves you the most valuable resource of all, time! Whether you are a DIY master or are having it professionally done our Spare Tire Delete bracket turns what used to be a 6-8 hour install into a 3-4 hour install.

Important Notes:

• Fits most full-size pickups.

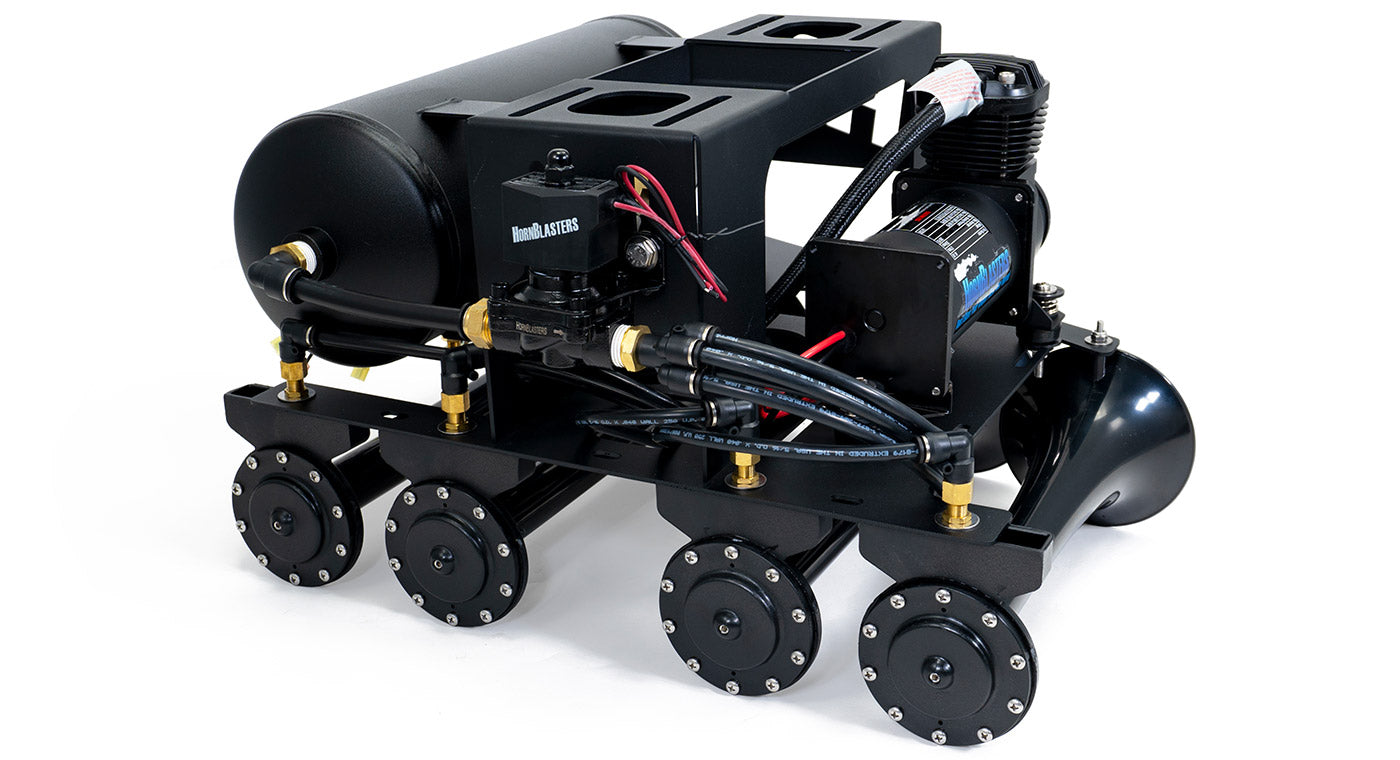

• The spare tire delete kit is shown assembled above for illustration purposes only. The kit will arrive as individual components and assembly will be required. Please check the install instructions in the section below.
• Adding the S6 extensions to your STDK will increase the width from 20" to 29". Please make sure you have the clearance before purchasing.
• VEHICLE FITMENT NOTICE: This bracket is not 100% plug-and-play with all vehicles. 2020-2021 Chevy & GMC 1500 and 3500 series trucks will require some modification to the mounting point for installation. If you are unsure, please contact us for assistance.

INSTALLATION VIDEO

CUSTOMER VIDEO REVIEW OF THESE HORNS

• High-efficiency & extremely loud
• The horns are constructed from fiberglass-reinforced ABS for extreme durability through all harsh conditions.
• Stainless steel diaphragms won't rust!
• Manifold-less design for flexible installation
• All-inclusive train horn solution!
• Heavy-duty air compressor for faster fills!
• All standard mounting hardware
• Max honk time: 4 to 6 seconds
• Capable of filling tires
• Stainless steel liquid-filled air pressure gauge!
• It can be heard from miles away!
• The bracket has a black powdercoat finish
• The bracket is constructed From 14 gauge steel
• Quick & easy install

• Shocker XL train horns

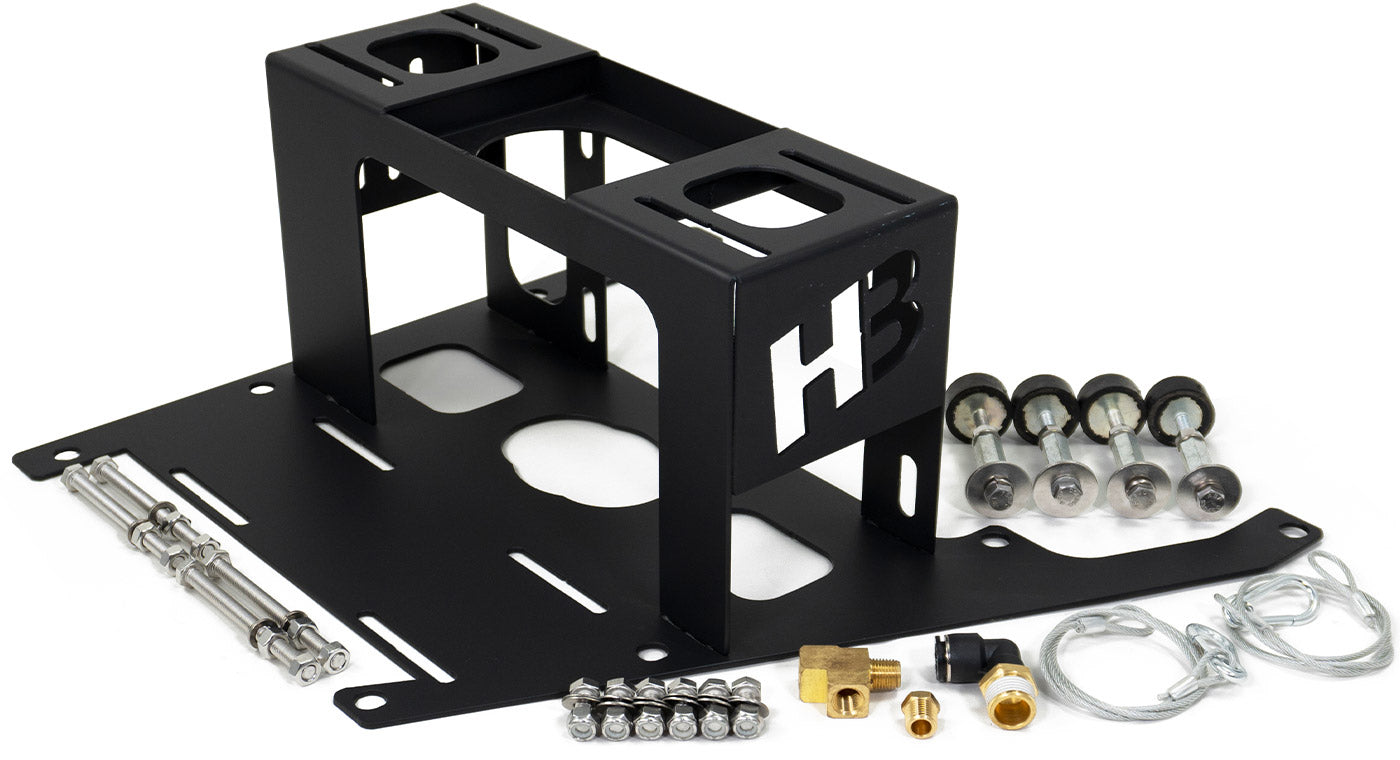

• Spare Tire Delete bracket
• HornAir 2-gallon 6 port air tank

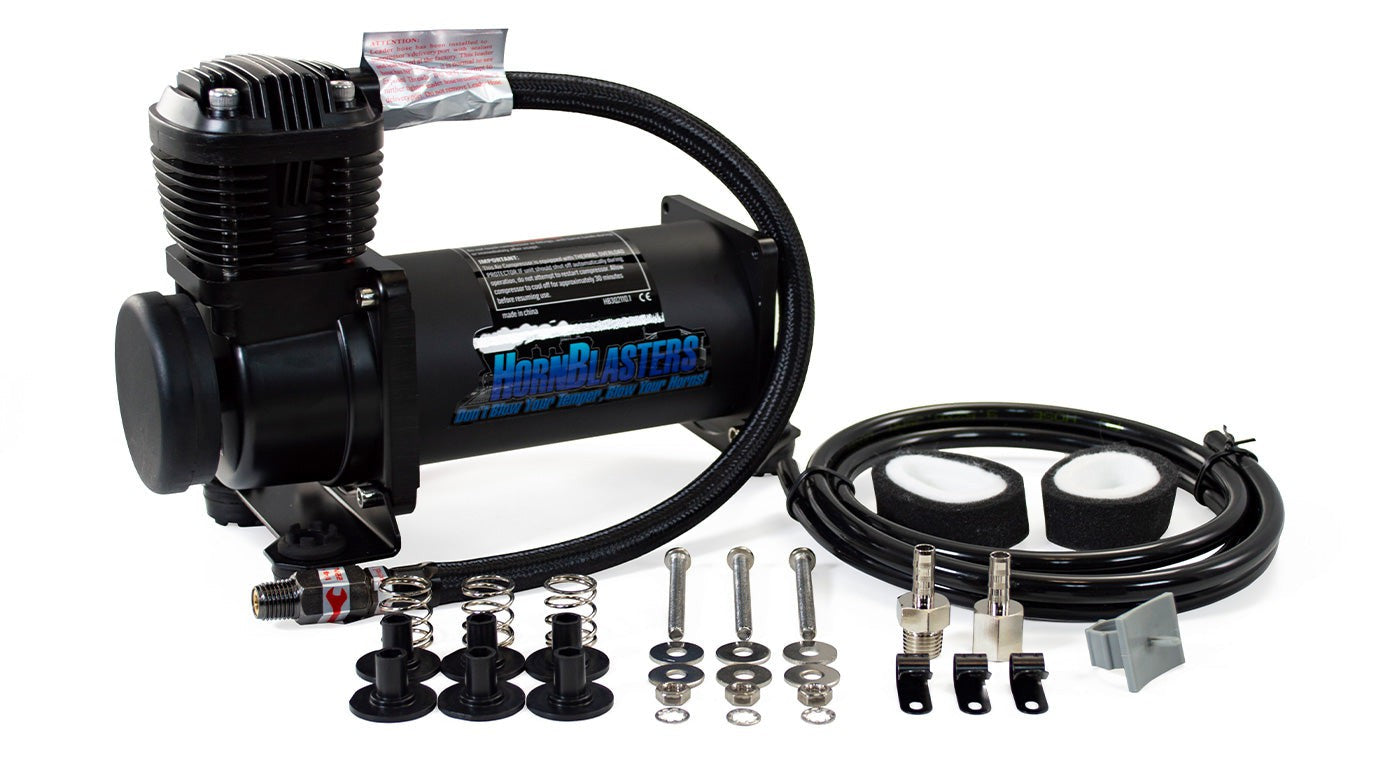

• Viair 380C air compressor
• 110/150 PSI pressure switch w/ 40 amp relay
• Remote mountable intake filter assembly
• Spare air filter elements
• 10ft of 5/16" D.O.T. approved air line
• 17ft of 1/2" D.O.T. approved air line
• 6ft of 3/8" air line (for air compressors air intake)
• 22ft of 10-gauge red wire

• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire
• Black Widow 1/2" NPT stainless steel electric air valve
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• Brass NPT fittings kit including a safety blow-off & drain cock

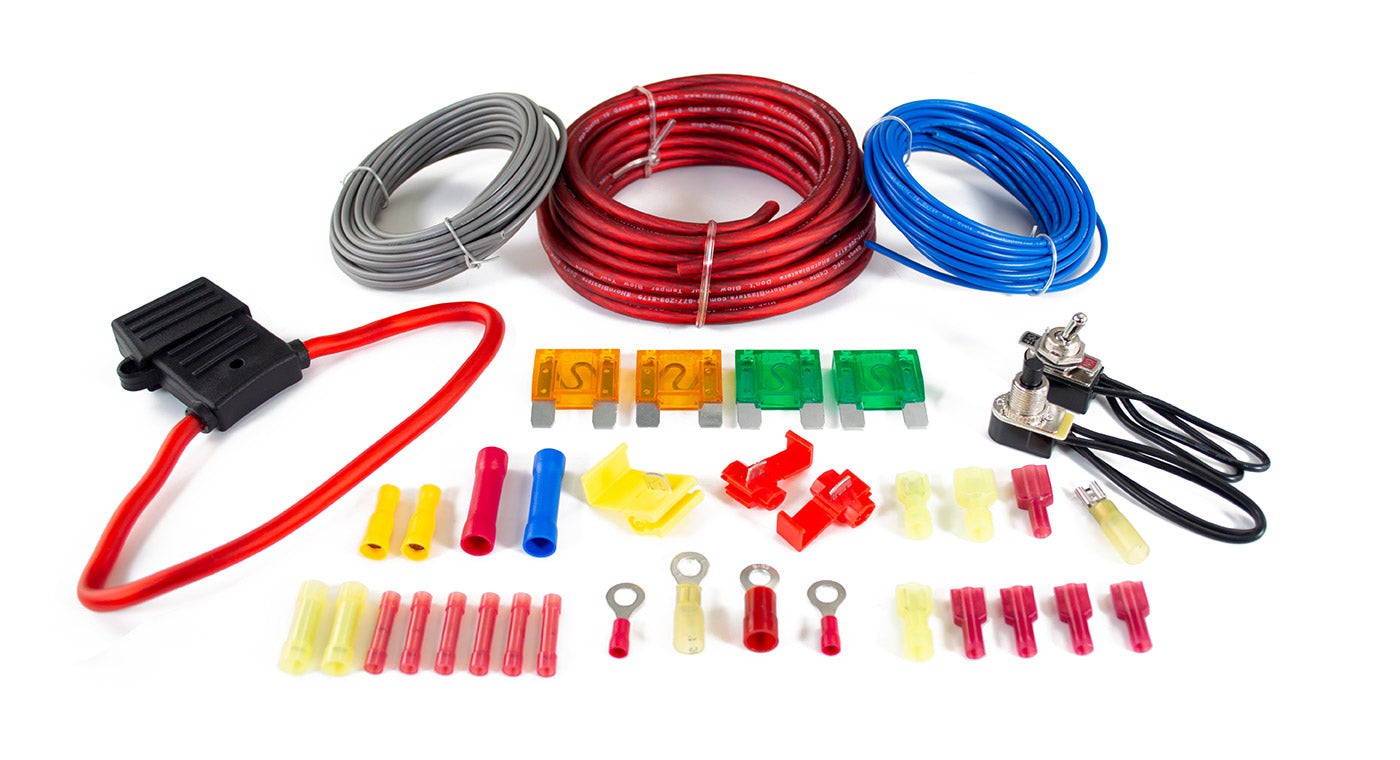

• Complete wiring kit with fuse holder & fuses

• Mounting hardware
• Air line cutter
• Earplugs
• Detailed instructions

• Part Number: HK-S4-232-STDK
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: Shocker 4 Train Horn Kit
• Horn Material: High-Impact ABS
• Horn Measurements

• № 1 19.50″ (495.30 mm)	№ 2 16.25″ (412.75 mm)
  № 3 14.75″ (374.65 mm)	№ 4 12.75″ (323.85 mm)

• Horn Flare: 5″ (127 mm)
• Air Tank: HornAir 2-gallon 6 port air tank
• Tank Length: 17" (431.8 mm)
• Tank Diameter: 6" (152.4 mm)
• Tank Height: 7" (177.8 mm) (With Legs)
• Tank Weight: 10 lb (4.54 Kg)
• Air Compressor: Viair 380C air compressor
• Max Amperage: 23 Amps
• Maximum Duty Cycle: 100% @ 100 PSI
• CFM @ 0 PSI: 1.58 CFM
• Compressor Length: 9″ (228.6 mm)
• Compressor Width: 4″ (101.6 mm)
• Compressor Height: 6.75″ (171.5 mm)
• Compressor Weight: 6.95 lb (3.15 Kg)
• Bracket Length: 19"
• Bracket Width: 19"
• Bracket Height: 7.5"
• Bracket Weight: 6 lbs
• Assembled Length: 21"
• Assembled Width: 23"
• Assembled Height: 13"
• Assembled Weight: 40 lbs

• HornBlasters Spare Tire Delete Instruction Manual
• Viair 380C Air Compressor Manual
• Viair 380C Air Compressor Wiring Diagram
• Viair 380C Air Compressor Dimensional Drawing
