Name: Viair Dual 280C Black & Silver Air Compressor Kit
Brand: Viair
SKU: DC-280B
Availability: InStock

PICK UP A DUAL-PACK TODAY.

Step up your onboard air game with the dynamic duo of compressors, the Viair 280C Black and Silver dual-pack! One 280C is all you need for tanks up to 2.5 gallons, but why settle when you can power tanks up to 5-gallons with two? Fill your tank lightning fast, recharging a 2-gallon tank from 110-145 PSI in just 29 seconds and a 5-gallon tank in 1 minute and 11 seconds. And the best part? The Viair 280C only pulls 45 amps from your battery. Ideal for air suspension systems and powering HornBlasters train horns!

This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!

Permanent Magnetic Motor
Oil-less Design
High-Performance PTFE Piston Ring
Stainless Steel Valves
Moisture & Dirt Resistant
Gearless Direct Drive Motor
Anodized Aluminum Alloy Cylinder
Automatic Reset Thermal Overload Protector
Mounting Plates with Vibration Isolators
Stainless Steel 1/4" Braided Leader Hose
Remote Mount Intake Filter Assembly
Insulated Wiring with Connectors

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI	CFM	A	BAR	LPM	A
0	2.96	21	0	84.0	21
10	2.78	24	1.0	75.5	25
20	2.58	26	2.0	69.0	28
30	2.38	28	3.0	62.5	30
40	2.27	29	4.0	56.5	31
50	2.13	31	5.0	51.5	32
60	1.97	31	6.0	47.0	32
70	1.88	32	7.0	43.5	32
80	1.74	32	8.0	39.5	32
90	1.62	32	9.0	36.0	32
100	1.56	32	10.0	33.5	32
110	1.46	32
120	1.37	32
130	1.29	32
140	1.23	32
150	1.16	32

* Supply Voltage: 13.8 Volts

2.0 GALLON TANK	FILL RATE
0 to 145 PSI	1 min. 34 sec. (± 10 sec.)
110 to 145 PSI	29 sec. (± 05 sec.)
2.5 GALLON TANK	FILL RATE
0 to 145 PSI	1 min. 44 sec. (± 10 sec.)
110 to 145 PSI	31 sec. (± 05 sec.)
5.0 GALLON TANK	FILL RATE
0 to 145 PSI	3 min. 54 sec. (± 15 sec.)
110 to 145 PSI	1 min. 11 sec. (± 10 sec.)

* Supply Voltage: 13.8 Volts

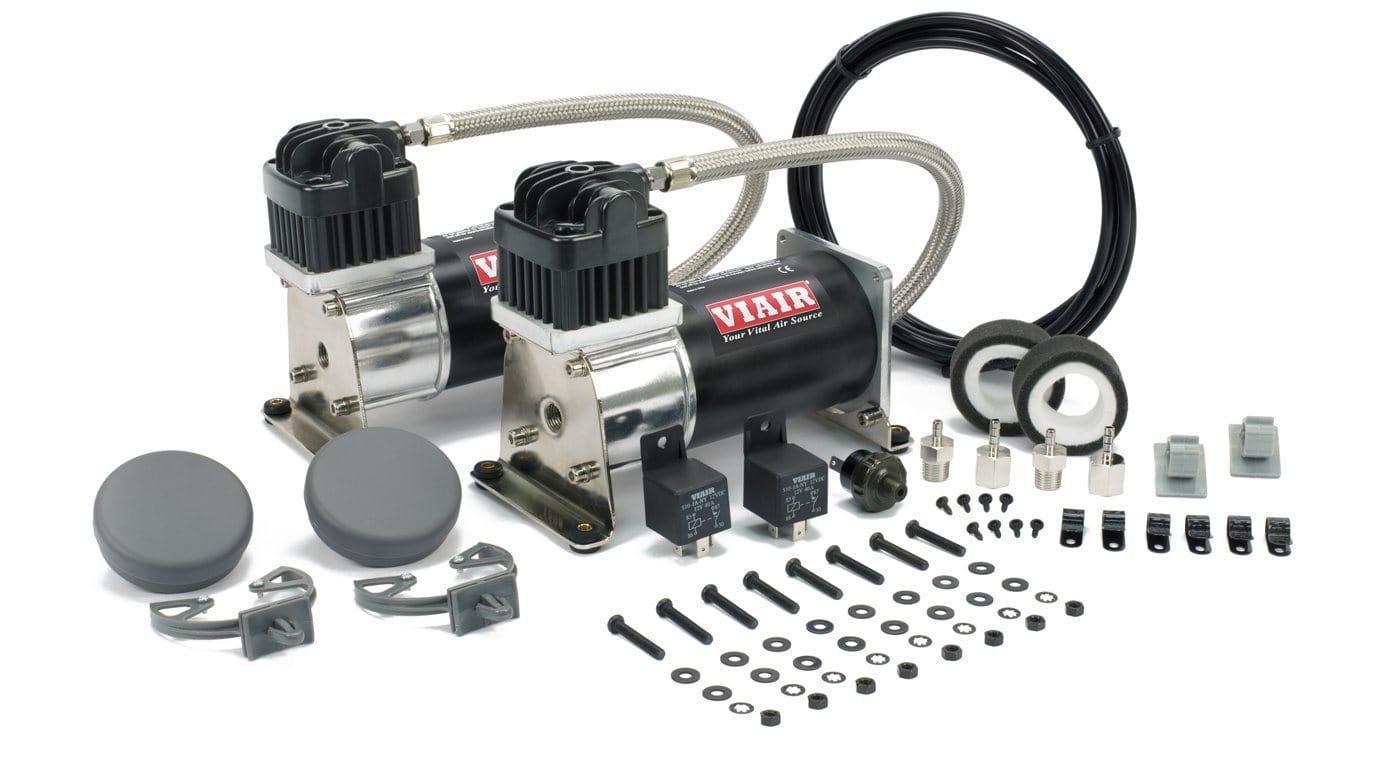

Dual Viair 280C Black & Silver Air Compressor
1/4" NPT Braided Leader Hose & Check Valve
Remote Mount Two-Stage Air Filter
Installation Instructions
Replacement Filter Elements
1 Year ManufactureR's Defect Warranty
Mounting Hardware

Part Number	DC-280
Manufacturers Part Number	28002
Voltage	12 Volts DC
Combined Max Amperage	32 Amps
Maximum Duty Cycle	30% @ 100 PSI
Maximum Pressure	150 PSI
CFM @ 0 PSI	2.96 CFM
CFM @ 100 PSI	1.56 CFM
Length	7.8″ (198.12 mm)
Width	3.95″ (100.33 mm)
Height	6.35″ (161.29 mm)
Weight	6.60 lb (2.99 Kg)
