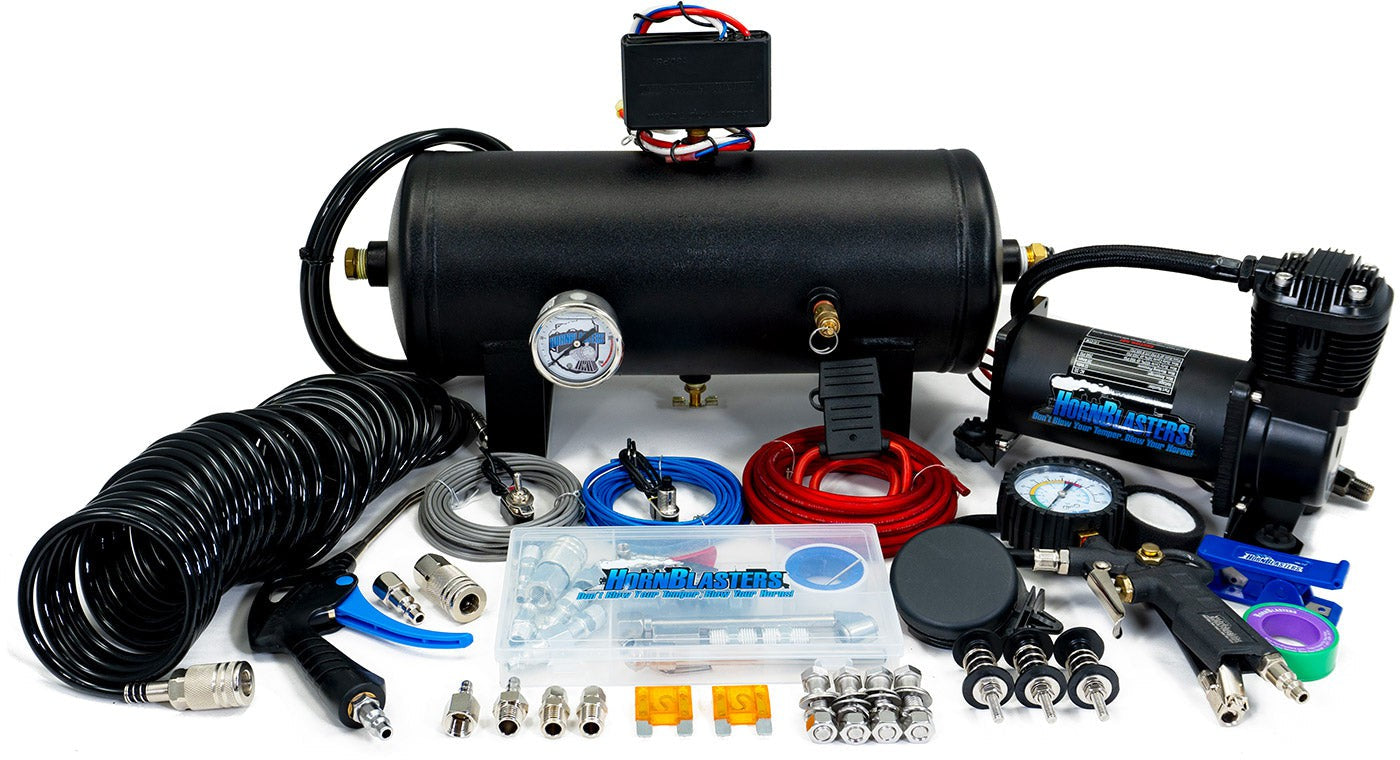

HornAir 232 Air System

HA-232


  • Fast Filling & Lightweight

    The kit only weighs 19lbs installed and provides 2 gallons of 150 PSI air. The fast-filling 325C air compressor can recharge the tank from 110 to 150 in just under 50 seconds. The fitting kit includes a safety blow-off and drain cock, and leaves one port spare so you can easily install another accessory. All this at an affordable price.

    This package is perfect for filling upload leveling air springs. If your truck has air springs without a compressor setup, this is the perfect compliment. Please note that if you use horns, you will still need an air valve kit to connect the system properly.

    The Little Extras That Matter

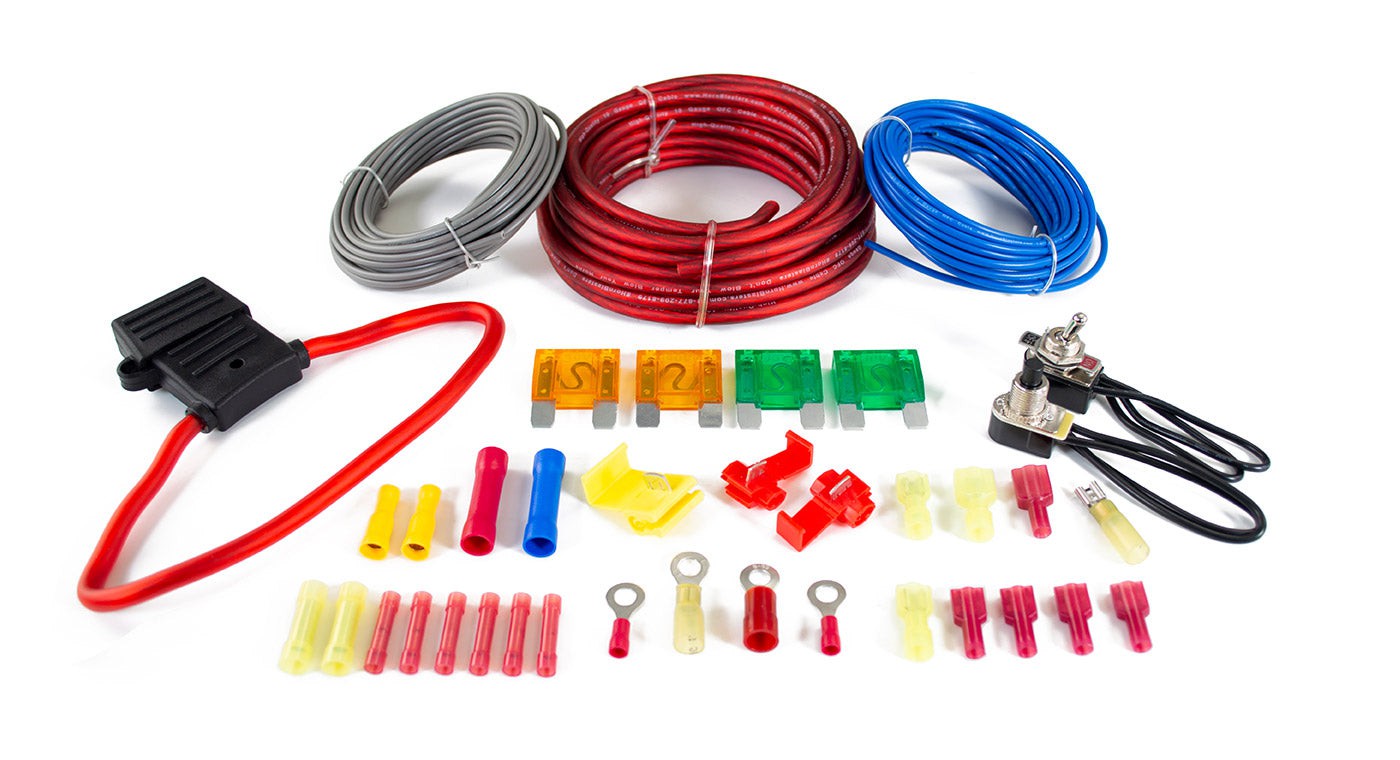

    Unlike some other air systems, HornAir kits come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly.

    Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.

    Recommended For Use With The Following:

    • Shocker S4 Train Horns (Part number: AH-S4)
    • Outlaw Series Train Horns (Part numbers: AH-O3, AH-03B, AH-O5)
    • Designed For HornBlasters Shocker Horns
    • All-inclusive Train Horn Air Solution!
    • Fast Filling Compressor Perfect For Train Horns
    • Comes With Standard 1/2" Push-to-Pull Fitting
    • Complete Fitting Kit With Safety Valve & Drain Cock
    • All Standard Mounting Hardware

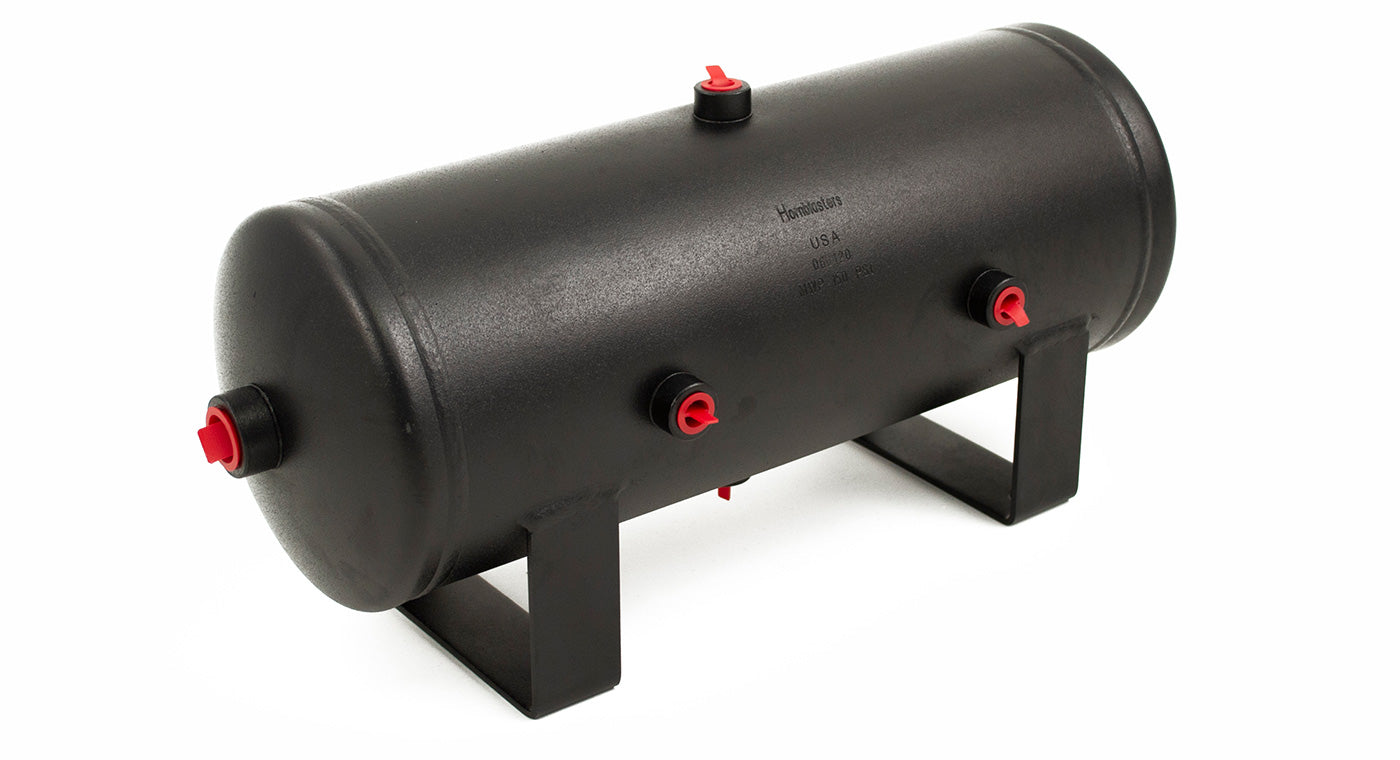

    • Tank: 2 Gallon Tank
    • Rated Pressure: 300 PSI
    • Burst Pressure: 800 PSI
    • Length: 17" (431.8 mm)
    • Diameter: 6" (152.4 mm)
    • Height: 7" (177.8 mm)
    • Weight: 10 lb (4.54 Kg)

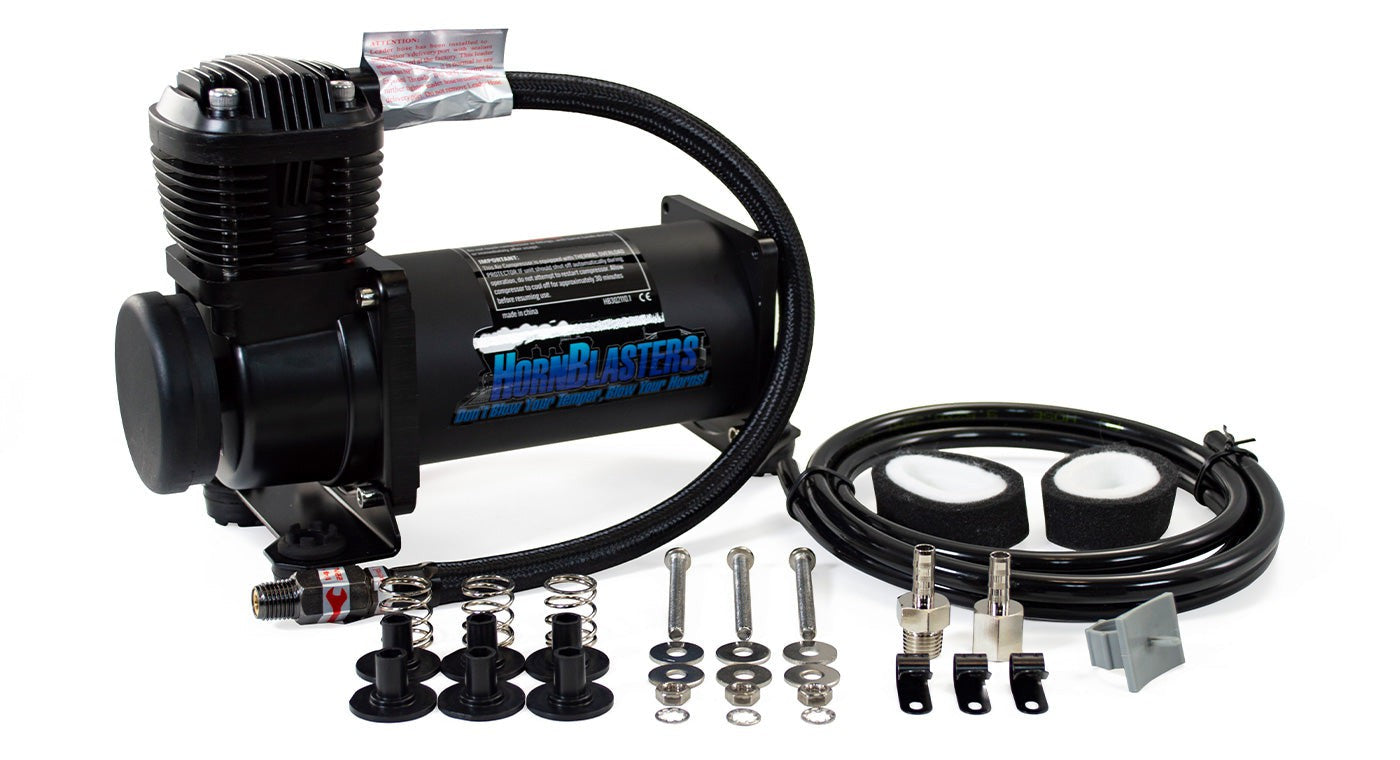

    • Compressor: Viair 325C Air Compressor
    • Voltage: 12 volts DC
    • Air Flow: 1.77 CFM at Free Flow
    • Average Fill Time: 1 Min 10 Sec
    • Max Amperage: 19 amps
    • Maximum Duty Cycle: 33% @ 100 PSI
    • Maximum Working Pressure: 150 PSI
    • Compressor Length: 8.0" (203.2 mm)
    • Compressor Width: 4.0" (101.6 mm)
    • Compressor Height: 7.05" (179.07 mm)
    • Compressor Weight: 6.95 lb (3.15 Kg)
    • Pressure Switch: Weatherproof 110/150 PSI Switch
    • Voltage: 12 volts DC
    • Max Amps: 40A
    • Stop Pressure: 150 PSI
    • Restart Pressure 110 PSI



Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

WARNING

This product contains chemicals known to the state of California to cause cancer.
