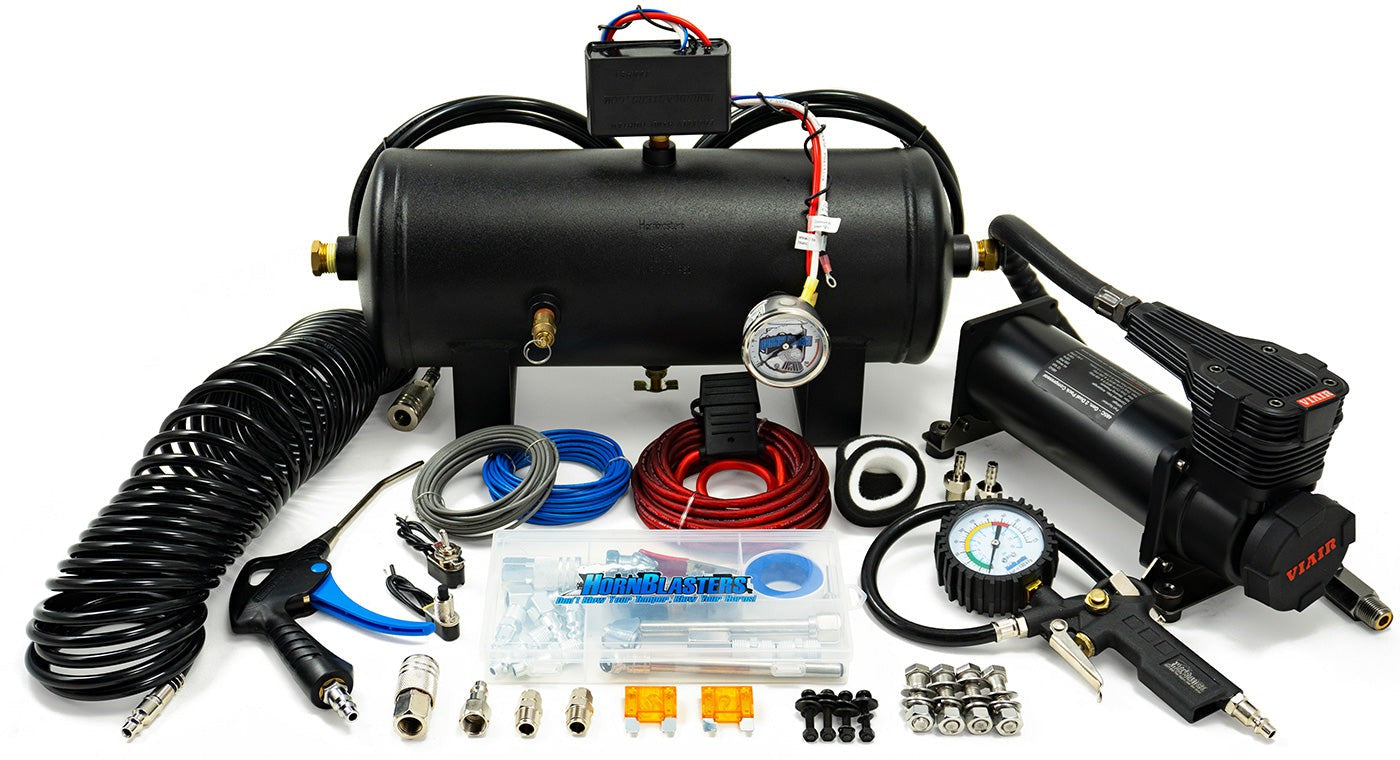

HornAir 2485K Nightmare Edition Onboard Air System

Premium Kit W/ Quick Filling & Moderate Pneumatic Use

HA-2485K

Suggested Addons
Add Viair Air Compressor Bracket Tooltip
The Viair Air Compressor Bracket will allow you to mount your compressor upright and is compatible with Viair Compressor models 275C-485C.
addons
+$39.99

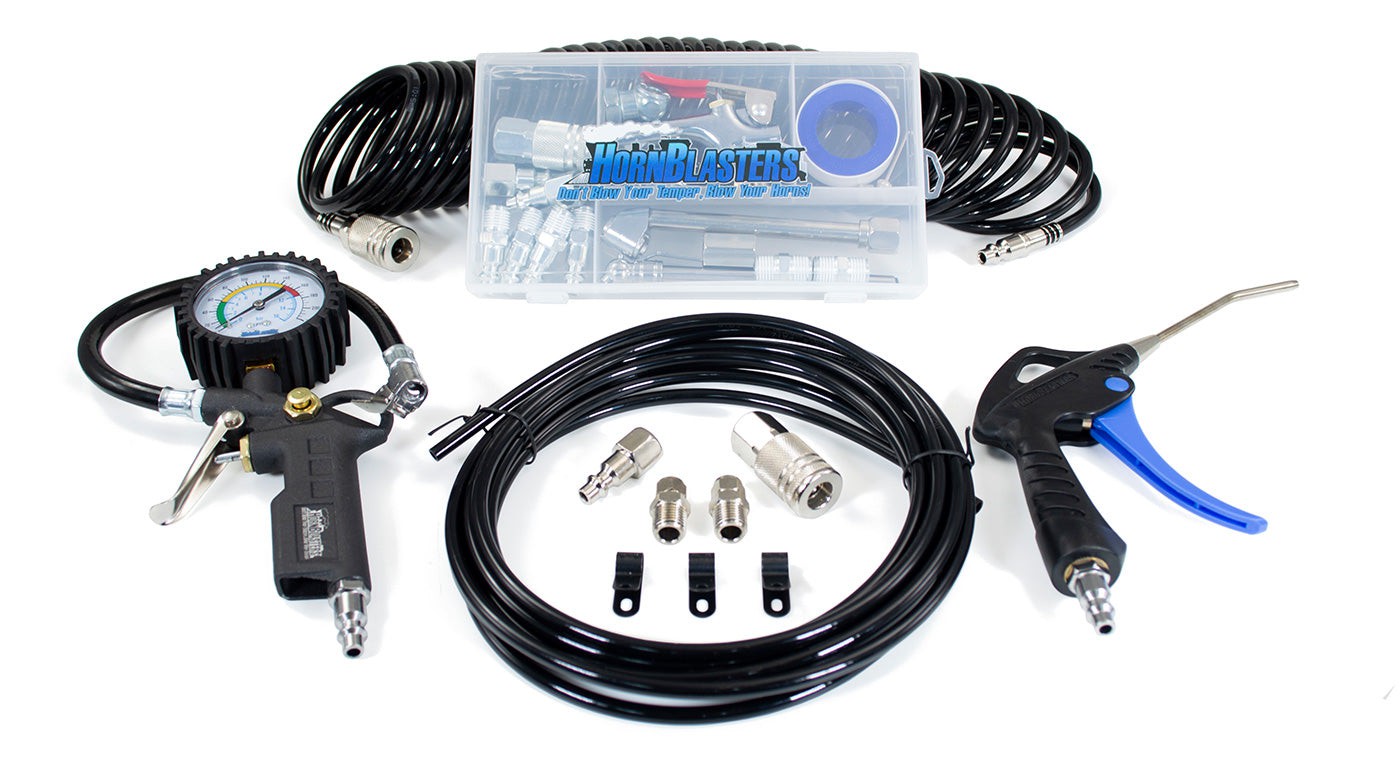

Add Tire Inflation Kit Tooltip
Our Tire Inflation Kit includes a 30' Coil Hose, Tire Inflation Gun, Air Relocation Kit, Blow Gun, & a complete Air Accessory Fitting Kit!
addons
+$79.99
Add 220 PSI Digital Pressure Gauge Tooltip
Using a tank mounted sensor wired directly to your gauge, our 220-PSI rated Digital Air Pressure Gauge delivers unparalleled accuracy with microprocessor stabilized readings.
addons
+$189.99
Add Cooling Fan Isolator Kit Tooltip
Isolate your Compressor, drastically cutting down on vibration, allowing your compressor to run quieter & cooler, & extending the duty cycle up you 25%!
addons
+$77.50

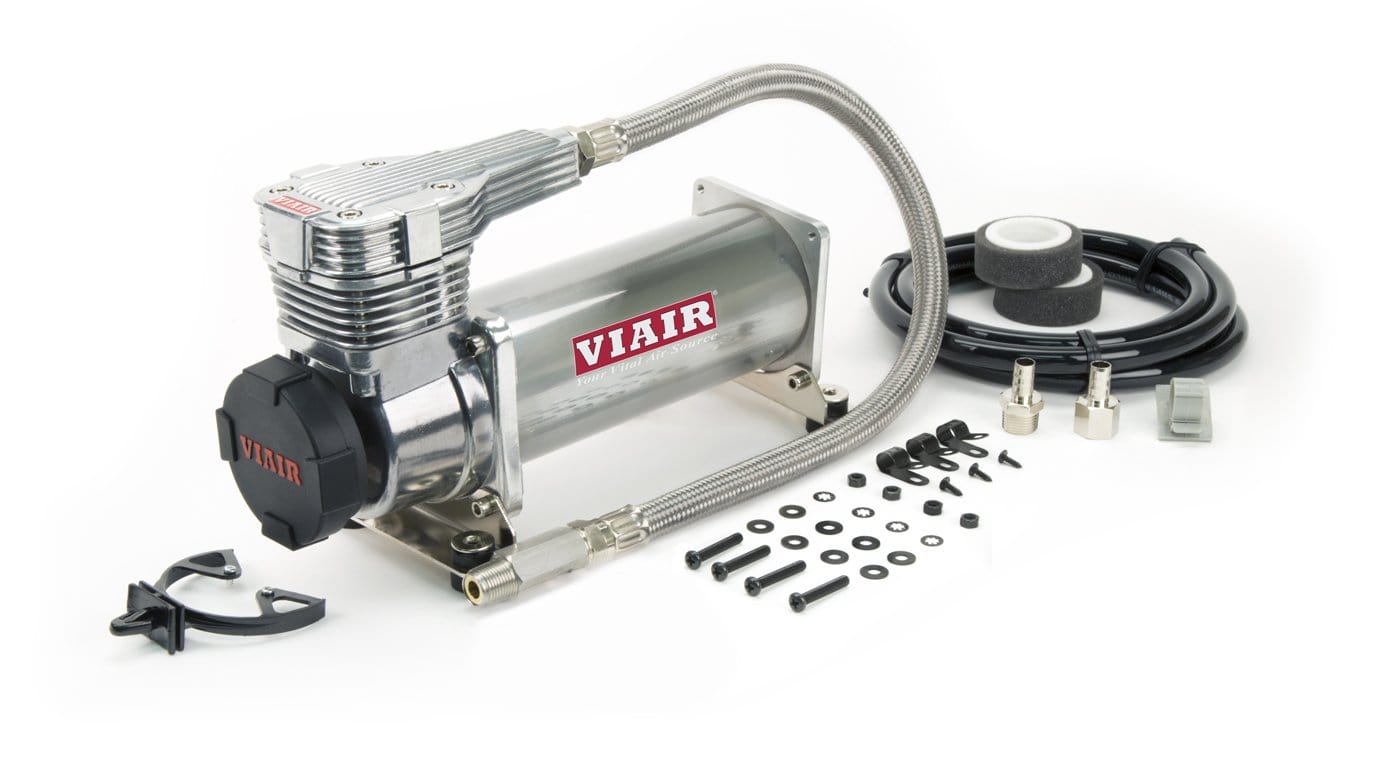

Add 485C Air Compressor Upgrade Tooltip
Double your performance by adding an additional 485C Air Compressor. Recharge your tank faster and honk more often. Great for air tools and other air source needs as well.
addons
+$406.99
Add Gold Extended Warranty Tooltip
1 year add-on to existing warranty. Does NOT cover accidental damage, no advanced replacement.
Click here for more information!
addons
+See price at checkout
Add Platinum Extended Warranty Tooltip
2 year add-on to existing warranty. DOES cover accidental damage and advance replacement.
Click here for more information!
addons
+See price at checkout

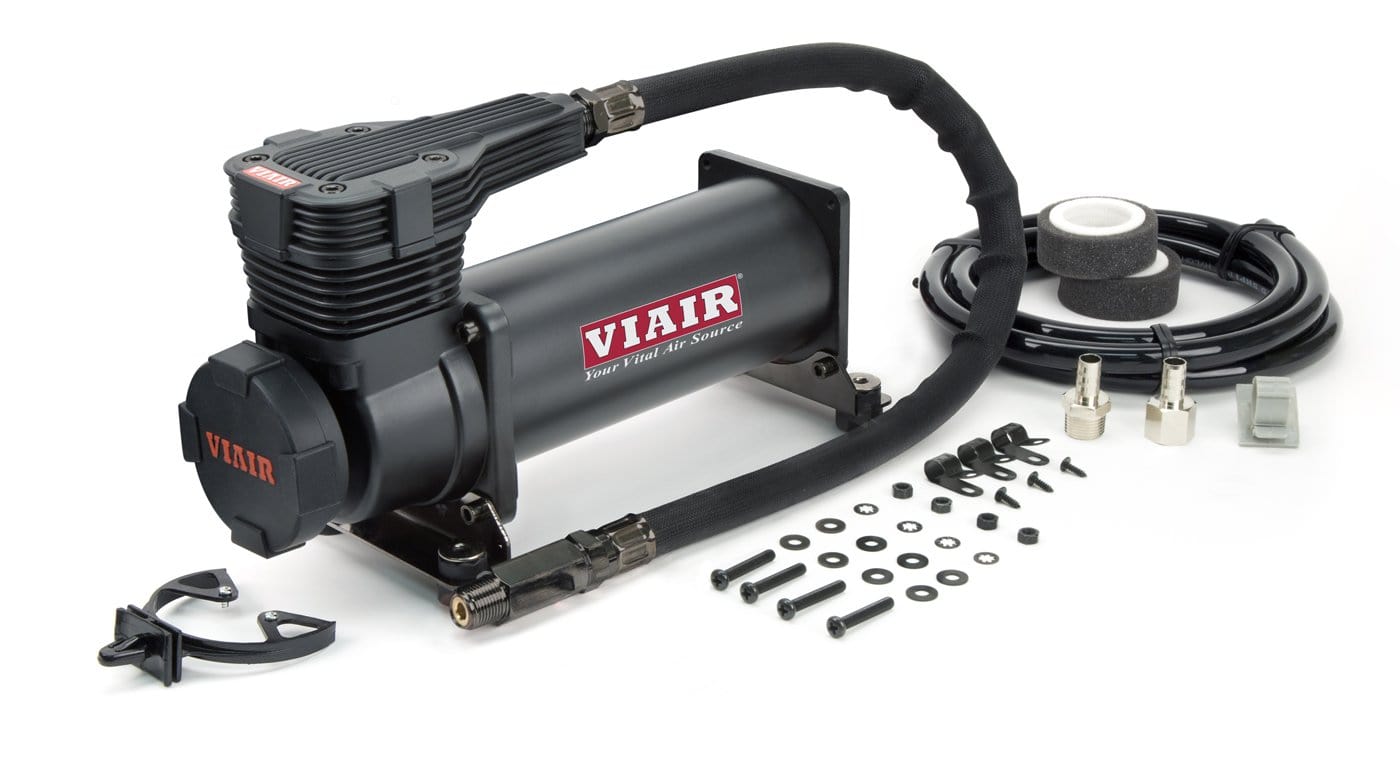

This kit is not to be underestimated. Despite it being a 2-gallon (7.5 liters) reservoir, the included air pump is a powerhouse. This Viair 485C air compressor is the most heavy-duty compressor that Viair offers. It’s designed specifically for smaller vehicles where larger tanks may not fit. The compressor is overpowered (200 PSI capable, constant duty, and powerful!) to ensure the best reliability, and only pulls 22 amps at its peak.

An increasing number of people are using this for more than just blasting horns! With a system like the 2485K, you can also use the air supply to:

  • Adjust Tire Pressure
  • Moderate Pneumatic Use
  • Inflate Water Toys and Safety Gear
  • Supply Air to Load Leveling Bags
  • Supply Air for Differential Lockers
  • Blow up Kids Toys
  • And lots more!

Please note that if you use horns, you will still need an air valve kit to connect the system properly.

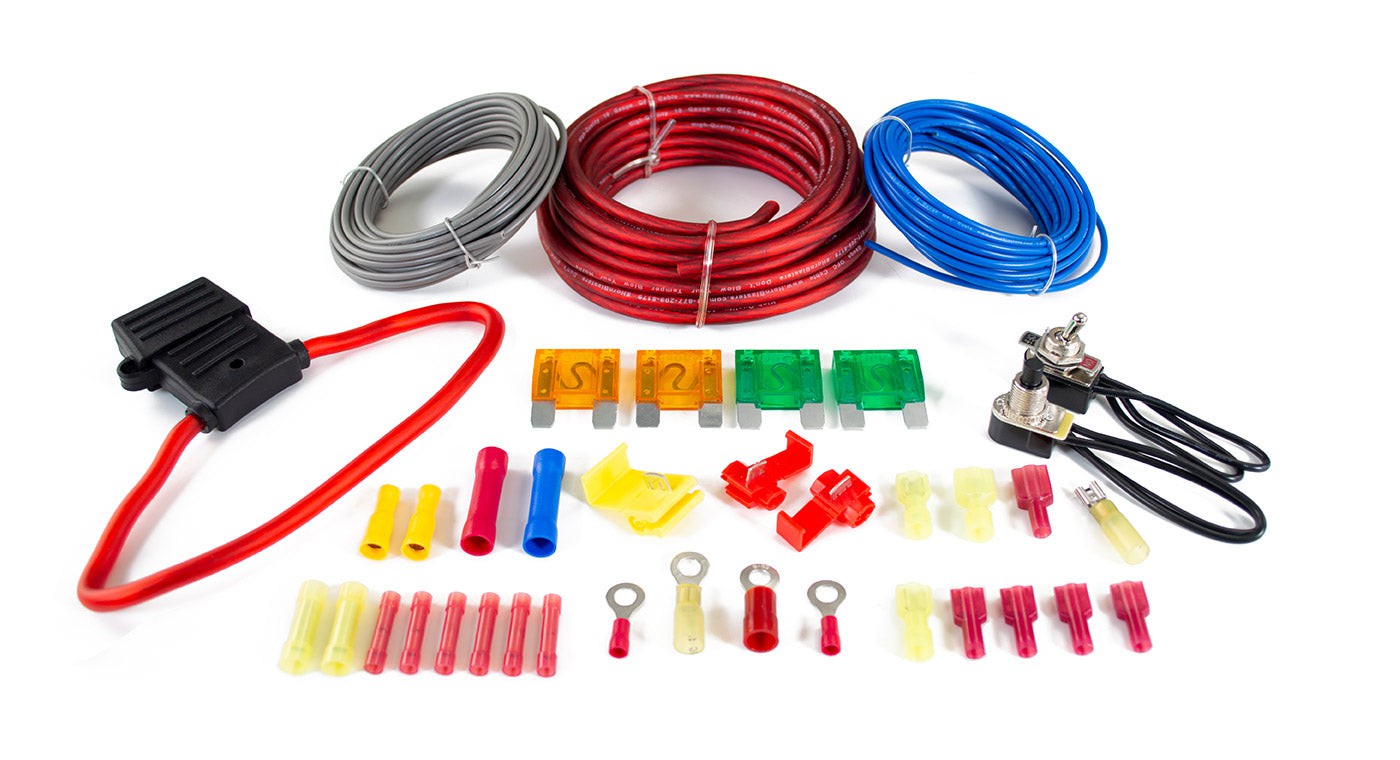

Unlike some other air systems, HornAir kits come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.

RECOMMENDED FOR USE WITH THE FOLLOWING:

Shocker S4 Train Horns (Part number: AH-S4)
Outlaw Series Train Horns (Part numbers: AH-O3, AH-03B, AH-O5)

     Please Note: This HornAir system is not recommended for AirChime horns. We recommend using at least a 4-gallon tank with larger-scale train horns like the P3, P5, K3, and K5; however, this kit is perfect for HornBlasters Shocker horns and Outlaw and Bandit series horns.

    PSI CFM A BAR LPM A
    0 2.24 12 0 70.0 12
    10 1.84 14 1.0 51.0 15
    20 1.75 16 2.0 47.0 16
    30 1.67 17 3.0 44.0 18
    40 1.61 18 4.0 41.0 20
    50 1.54 19 5.0 38.0 21
    60 1.47 20 6.0 35.0 21
    70 1.42 21 7.0 32.0 22
    80 1.36 21 8.0 29.0 22
    90 1.30 22 9.0 27.0 22
    100 1.23 22 10.0 25.0 23
    110 1.17 22 11.0 22.0 22
    120 1.11 22 12.0 21.0 21
    130 1.06 22 13.0 21.0 21
    140 1.01 23 13.8 21.0 21
    150 0.97 22
    160 0.92 22
    170 0.88 22
    180 0.84 21
    190 0.77 21
    200 0.73 21

    * Supply Voltage: 13.8 Volts

    2.0 GALLON TANK FILL RATE
    0 to 150 PSI 3 min. 15 sec. (± 15 sec.)
    110 to 150 PSI 45 sec. (± 05 sec.)

    * Supply Voltage: 13.8 Volts

    • Designed for HornBlasters Shocker horns
    • All-inclusive onboard air solution!
    • Top-end 200 PSI capable compressor perfect for train horns
    • Comes with a standard 1/2" push-to-pull fitting
    • Complete fitting kit with safety valve & drain cock
    • All standard mounting hardware
    • Part Number: HA-2485K
    • Operating Pressure: 150 PSI
    • Restart Pressure: 110 PSI
    • Voltage: 12-Volt DC

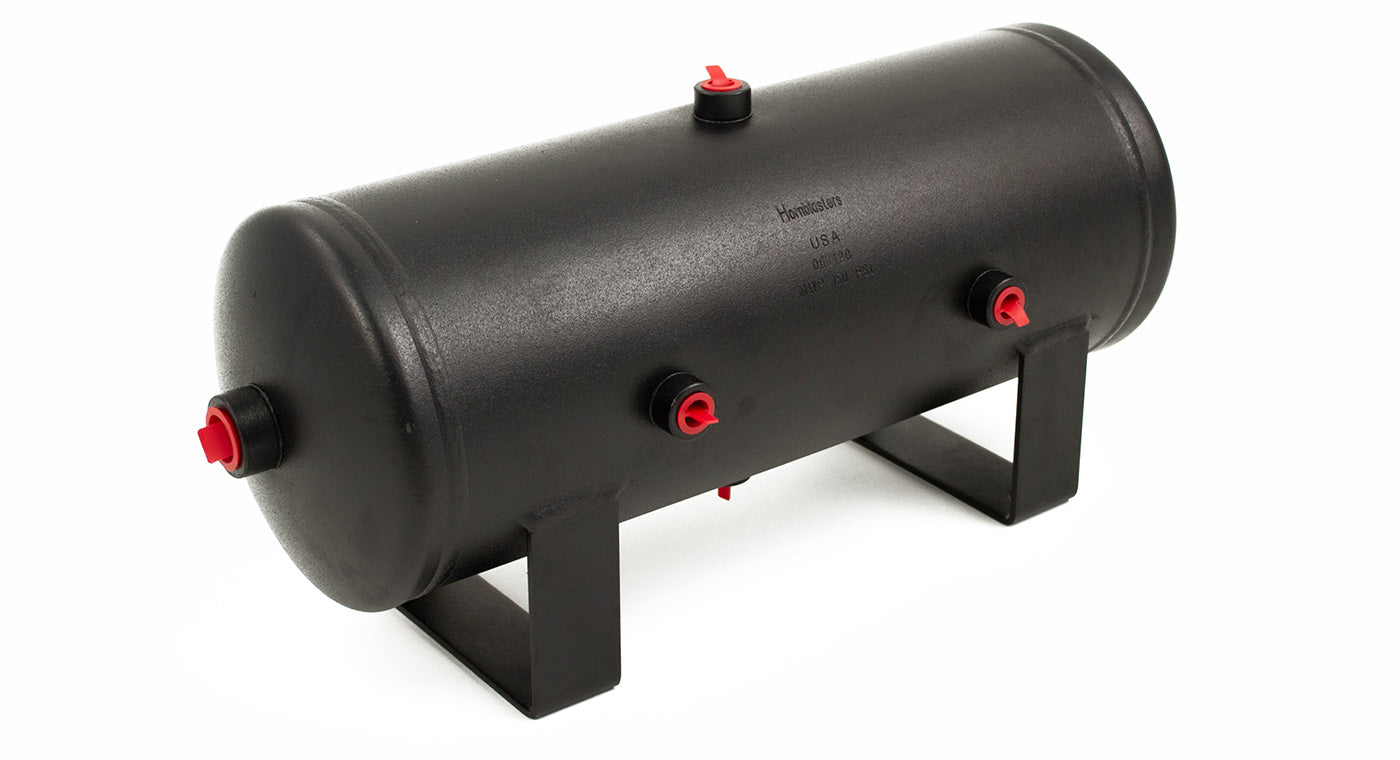

    • Air Tank: 2-gallon 6 port air tank
    • Tank Length: 17" (431.8 mm)
    • Tank Diameter: 6" (152.4 mm)
    • Tank Height: 7" (177.8 mm)
    • Tank Weight: 10 lb (4.54 Kg)
    • Tank Ports: x2 1/2" NPT, x4 1/4" NPT
    • Operating Pressure: 150 PSI
    • Air Compressor: Viair 485c air compressor
    • Average Fill Time: 1 Min 30 Sec
    • Air Flow: 2.24 CFM at Free Flow
    • Max Amperage: 23 amps
    • Maximum Duty Cycle: 100% @ 200 PSI
    • Compressor Length: 10.63″ (270 mm)
    • Compressor Width: 4.1″ (104.14 mm)
    • Compressor Height: 6.44″ (163.57 mm)

    2-Gallon Air Tank Dimensional Drawing
