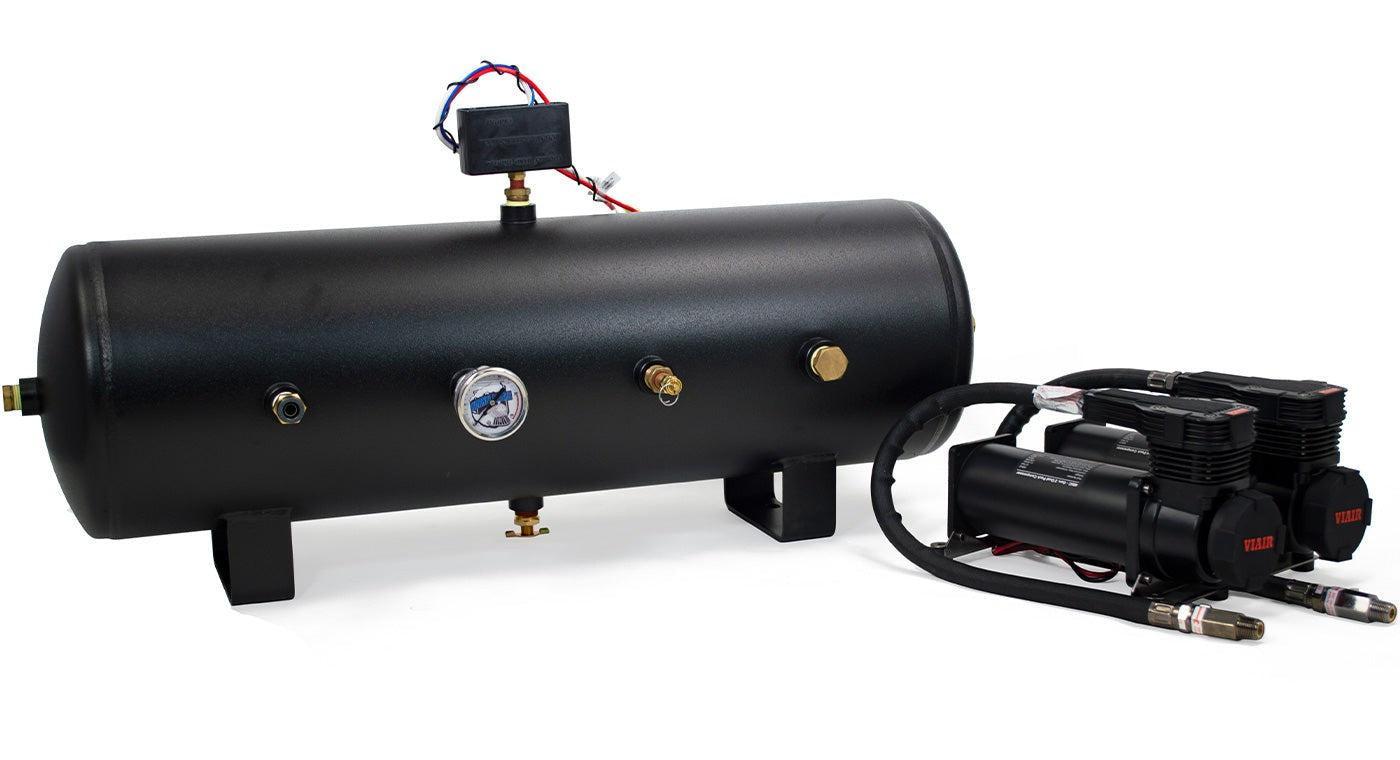

HornAir 8485 Nightmare Edition Onboard Air System

HA-8485K

Rated 5.0 out of 5

1 Review

$699.99

Overview

This kit is not to be underestimated. With it being a massive 8-gallon (30.28 liters) reservoir, and including dual Viair 485 heavy-duty air compressors. This air system is more than enough to run air tools or do any heavy-duty pnuematic use as well as using Horns.

This package is perfect for load-leveling air springs or air suspension. Also perfect for airing up tires or any other pnuematic use. Please note that if you use horns, you will still need an air valve kit to connect the system properly.

Unlike some other air systems, HornAir Onboard Air Systems come with 10 and 18 gauge wire, and a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard ¹/₂in OD push-to-pull fitting. This means the horns you hook up with get all the air they need.

An increasing number of people are using this for more than just blasting horns! With a system like the 8485K, you can also use the air supply to:

Adjust Tire Pressure
Remove/Rotate Tires
Heavy Duty Pnuematic Use
Inflate Water Toys and Safety Gear
Supply Air to Load Leveling Bags
Supply Air to Air Suspension
Supply Air for a Jake Brake
Supply Air for Differential Lockers
Blow up Kids Toys
And lots more!

RECOMMENDED FOR USE WITH THE FOLLOWING:

- Shocker S4 Train Horns (Part number: AH-S4)

- Nathan Airchime Series Train Horns (Part Number: AH-P3, AH-P5, AH-K3, AH-K5)

Performance Data / Fill Rates

PSI	CFM	A	BAR	LPM	A
0	3.82	23	0	110.0	23
10	3.51	26	1.0	93.0	27
20	3.27	30	2.0	84.0	31
30	3.05	32	3.0	75.0	35
40	2.90	35	4.0	71.0	37
50	2.73	37	5.0	65.0	39
60	2.61	38	6.0	61.0	41
70	2.45	40	7.0	55.0	41
80	2.34	41	8.0	50.0	42
90	2.24	41	9.0	45.0	42
100	2.09	41	10.0	41.0	42
110	1.94	42	11.0	39.0	41
120	1.87	42	12.0	34.0	40
130	1.72	42	13.0	32.0	40
140	1.64	42	14.0	29.0	39
150	1.55	42
160	1.48	41
170	1.37	41
180	1.29	41
190	1.22	40
200	1.13	39

* Supply Voltage: 13.8 Volts

8.0 GALLON TANK	FILL RATE
0 to 150 PSI	7 min. 15 sec. (± 15 sec.)
110 to 150 PSI	1 min. 45 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

Features

Designed For Extreme Train Horns
All-inclusive Train Horn Air Solution!
Top-End 200 PSI Compressor Perfect For Train Horns
Comes With Standard 1/2" Push-to-Pull Fitting
Complete Fitting Kit With Safety Valve & Drain Cock
All Standard Mounting Hardware

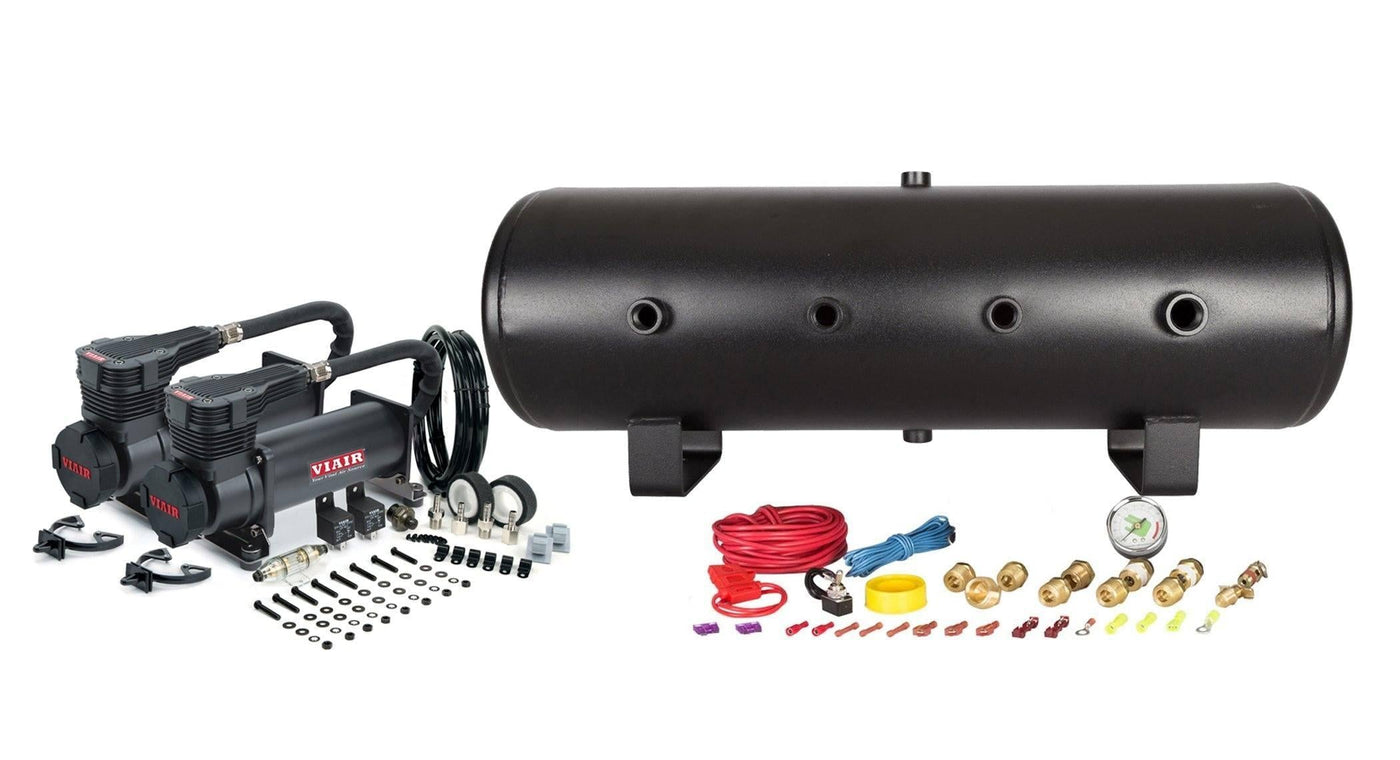

Includes

Horn Air 8 Gallon Air Tank
Viair Dual 485C Stealth Black Air Compressor
HornBlasters 110/150 PSI Pressure Switch
Dual Viair 40 Amp Relays
Remote Mountable Intake Filter Assembly
Air Filter Cartridges
6ft ⅜in Air Line (For Intake)
17 ft of 10ga & 18ga Gauge Power Wire
Electric Solenoid Valve
HornBlasters 200 PSI Air Gauge
Brass NPT Fittings Kit Including Safety Valve and Blowoff
Wiring & Plumbing Kit
Mounting Hardware
Detailed Instructions
Earplugs

Specifications

Tank: HornAir 8 Gallon Tank
Tank Length: 32.5″ (825.5 mm)
Tank Diameter: 10.5″ (241.3 mm)
Tank Height: 12.5″ (317.5 mm) (With Legs)
Tank Weight: 20 lb (9.07 Kg)
Compressor: Viair Dual 485c Stealth Black Air Compressors
Average Fill Time: 1 Min 30 Sec
Voltage: 12 volts DC
Air Flow: 2.24 CFM at Free Flow
Max Amperage: 23 amps
Maximum Duty Cycle: 100% @ 200 PSI
Maximum Working Pressure: 200 PSI
Compressor Length: 10.63″ (270 mm)
Compressor Width: 4.1″ (104.14 mm)
Compressor Height: 6.44″ (163.57 mm)
