Hear these horns now!

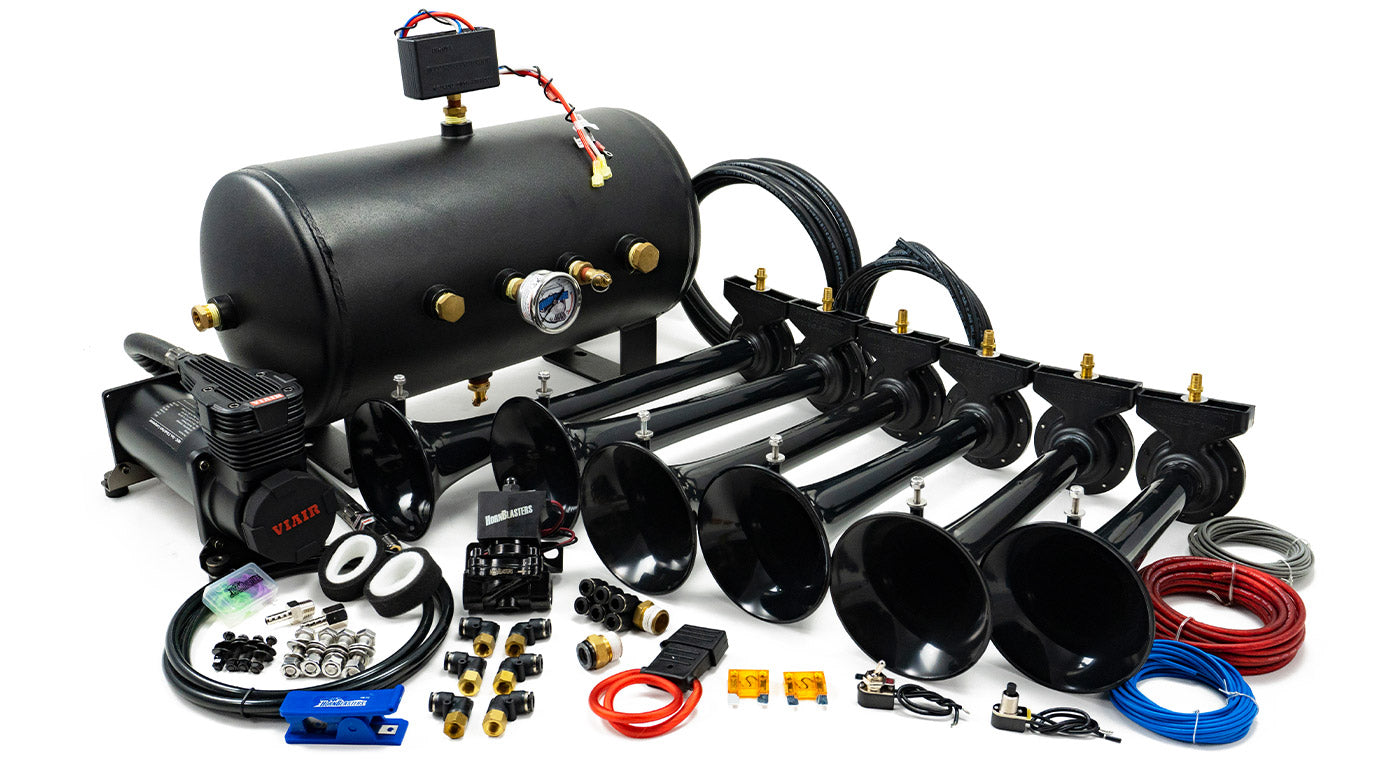

If you are going to do something, do it right. That’s why we have taken one of our loudest horns and paired it with the most powerful onboard air system we offer. Our Shocker S6 5485K train horn kit gives you both the insane volume of our Shocker S6 train horns, as well as the extreme performance of our 5485K onboard air system in a complete kit. Not just for horns, our Shocker S6 5485K train horn kit gives you the ability to run tire inflation, air tools, air suspension on top of powering your incredibly loud Shocker S6 train horns!

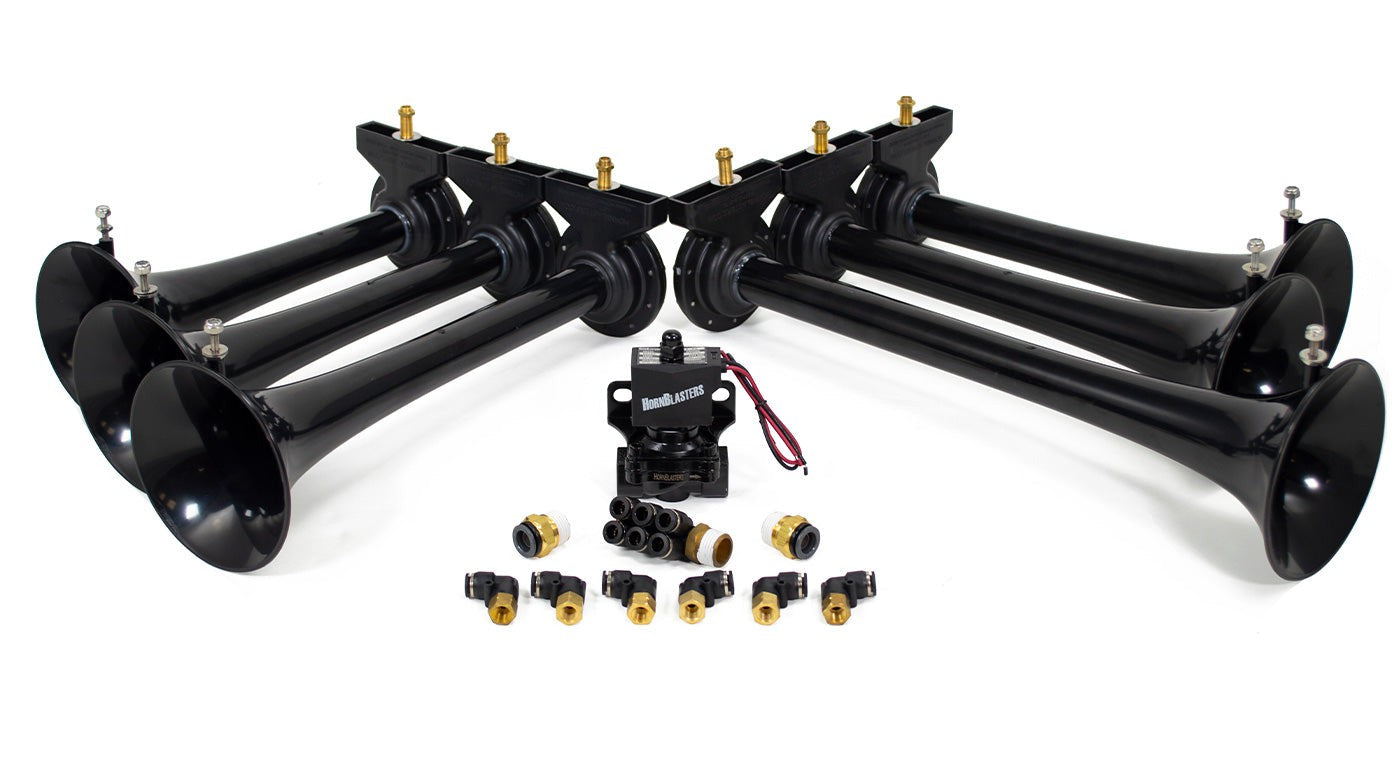

The Shocker S6 train horns that are featured in our Shocker S6 5485K train horn kit are the loudest horns that we make. The upgrade to our legendary Shocker XL train horns, our Shocker S6 horns are comprised of the four original Shocker XL train horns that are hand-tuned to the US Train Horn Chord, as well as an additional #2 and #3 bell to boost the bottom end and give you even more punch. These fiberglass-reinforced ABS bells are not only extremely loud but also extremely durable and easy to install. Our Shocker XL train horns are so durable, that we back them up with our Limited Lifetime Warranty against manufacturer defects.

Featuring the Viair 485K air compressor, the most powerful compressor Viair has to offer, our Shocker S6 5485K train horn kit sports a truly constant duty cycle of 100% and will recharge our 5-gallon tank from 110-145 PSI in just over 2 minutes. With our Shocker S6 5485K train horn kit, you have the ability to air up tires, run air suspension and even use air tools! Our 5-gallon 8-port air tank will give you enough air for any pneumatic task you need as well as provide your S6 Shocker train horns with an insane 5-7 seconds of continuous blast time.

Still not enough power for you? Select the Dual Compressor option in the drop-down menu to double your power with a second Viair 485K Stealth Black Air Compressor, cutting your recharge time down to just over 1 minute from 110-145PSI.

CUSTOMER VIDEO REVIEW OF THESE HORNS

This video shows our Shocker XL Train Horn in a third-party decibel test alongside your typical "air horn" honked side-by-side at the same pressure. As you can see, no one even comes close to the insane volume and tone of our Shocker XL Train Horns!
  • Extremely durable & loud!
  • Industrial grade stainless steel diaphragms
  • Extra-large 5-gallon air tank
  • Heavy-duty 485C air compressor
  • Capable of filling tires
  • Stainless steel liquid-filled air pressure gauge
  • All-inclusive train horn solution!
  • All standard mounting hardware
  • Max honk time: 8-10 seconds
  • It can be heard from miles away!
  • Part Number: HK-S6-5485K
  • Operating Pressure: 150 PSI
  • Restart Pressure: 110 PSI
  • Voltage: 12-Volt DC
  • Horn: Shocker S6 train horn
  • Horn Material: High-impact fiberglass reinforced ABS
  • Horn Measurements
  • № 1 19.50″ (495.30 mm) № 2 16.25″ (412.75 mm)
    № 3 16.25″ (412.75 mm) № 4 14.75″ (374.65 mm)
    № 5 14.75″ (374.65 mm) № 6 12.75″ (323.85 mm)
  • Horn Flare: 5″ (127 mm)
  • Air Tank: HornAir 5-gallon 8 port air tank
  • Tank Length: 20.5″ (520.7 mm)
  • Tank Diameter: 9.5″ (241.3 mm)
  • Tank Height: 11.5″ (292.1 mm) (With Legs)
  • Tank Weight: 20 lb (9.07 Kg)
  • Air Compressor: Viair 485C air compressor
  • Average Fill Time: 7 Min from zero PSI, 1 Min 15 Sec refill
  • Air Flow: 2.24 CFM
  • Max Amperage: 23 amps
  • Duty Cycle: 100% @ 150 PSI
  • Compressor Length: 11.5″ (292.1 mm)
  • Compressor Width: 4.30″ (109.22 mm)
  • Compressor Height: 6.5″ (165.4 mm)
  • Compressor Weight: 11 lb (4.99 Kg)

5-Gallon Air Tank Dimensional Drawing

PSI CFM A BAR LPM A
0 2.62 16 0 74.0 16
10 2.39 18 1.0 65.0 20
20 2.21 20 2.0 60.0 23
30 2.11 22 3.0 56.0 25
40 2.01 24 4.0 53.0 27
50 1.93 25 5.0 49.0 28
60 1.84 26 6.0 46.0 28
70 1.73 27 7.0 42.0 28
80 1.65 27 8.0 38.0 28
90 1.52 27 9.0 35.0 27
100 1.45 27 10.0 31.0 27
110 1.35 27
120 1.26 27
130 1.19 27
140 1.08 27
150 1.01 26

* Supply Voltage: 13.8 Volts

5.0 GALLON TANK FILL RATE
0 to 105 PSI 2 min. 55 sec. (± 10 sec.)
85 to 105 PSI 45 sec. (± 05 sec.)
0 to 150 PSI 4 min. 50 sec. (± 10 sec.)
110 to 150 PSI 1 min. 40 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts
