Katrina 540 Train Horn Kit

PREPARE TO BE BLOWN AWAY

Wanting a thunderous train horn with a lightning-fast air system and a ridiculously long blast time? Unleash a torrent of train horn volume on anyone in your path with our Katrina 540 train horn kit! Our Katrina 540 delivers our fastest 5-gallon onboard air system along with one of the loudest 5-Chime train horns on the market.

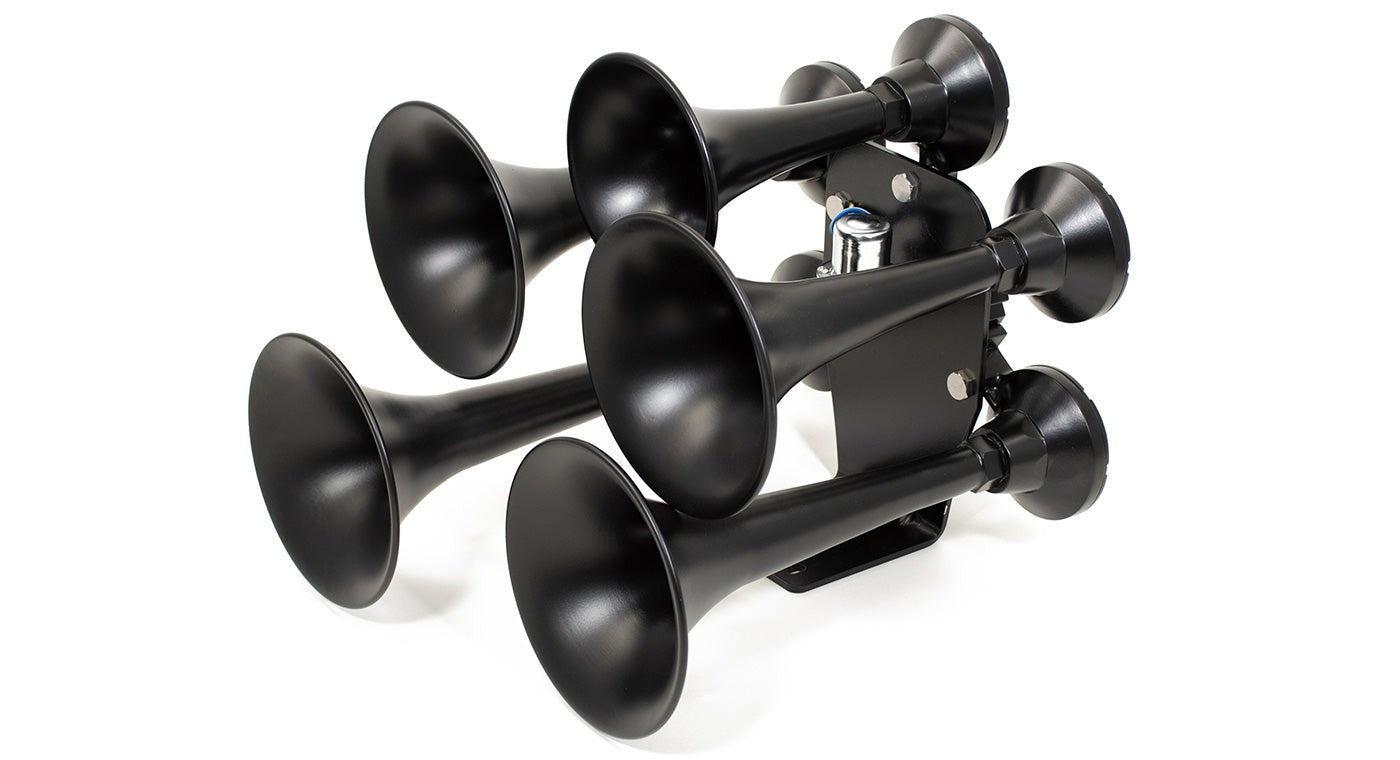

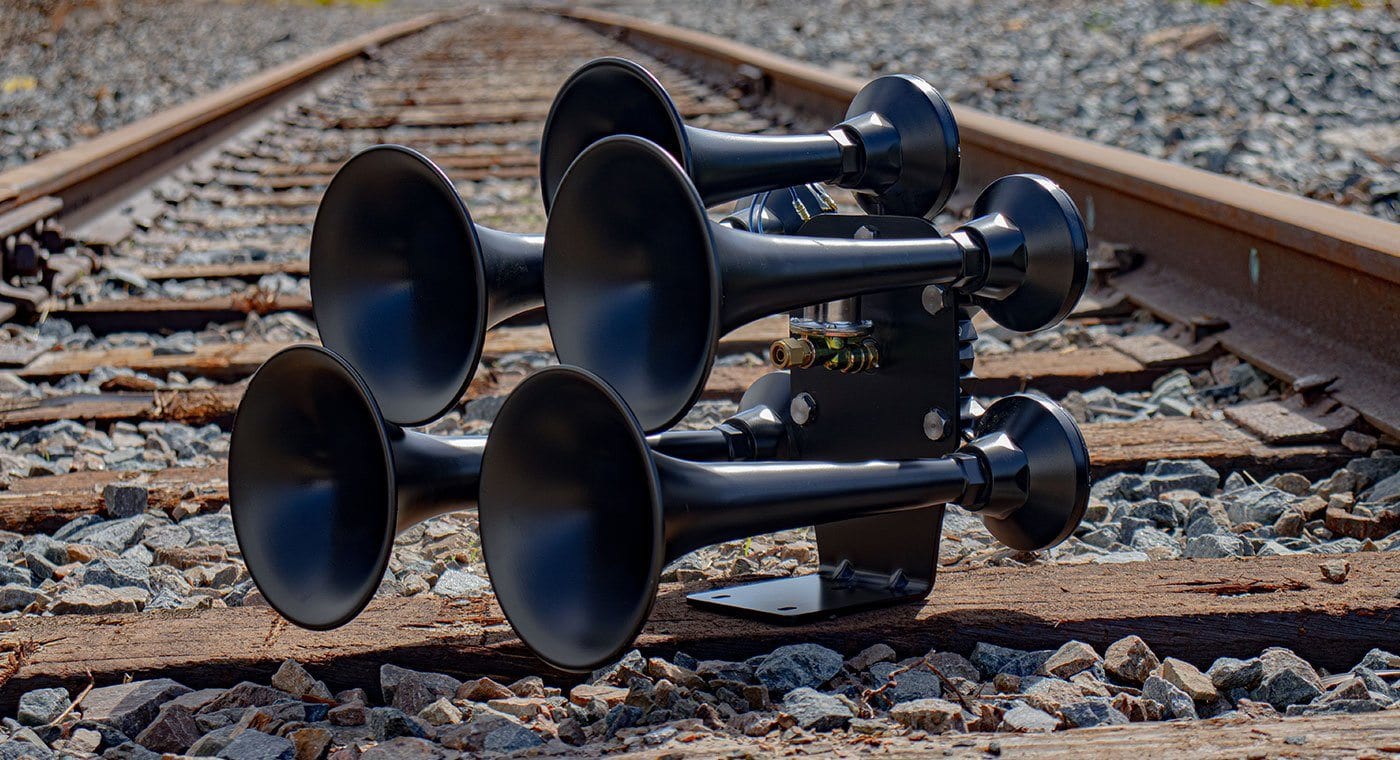

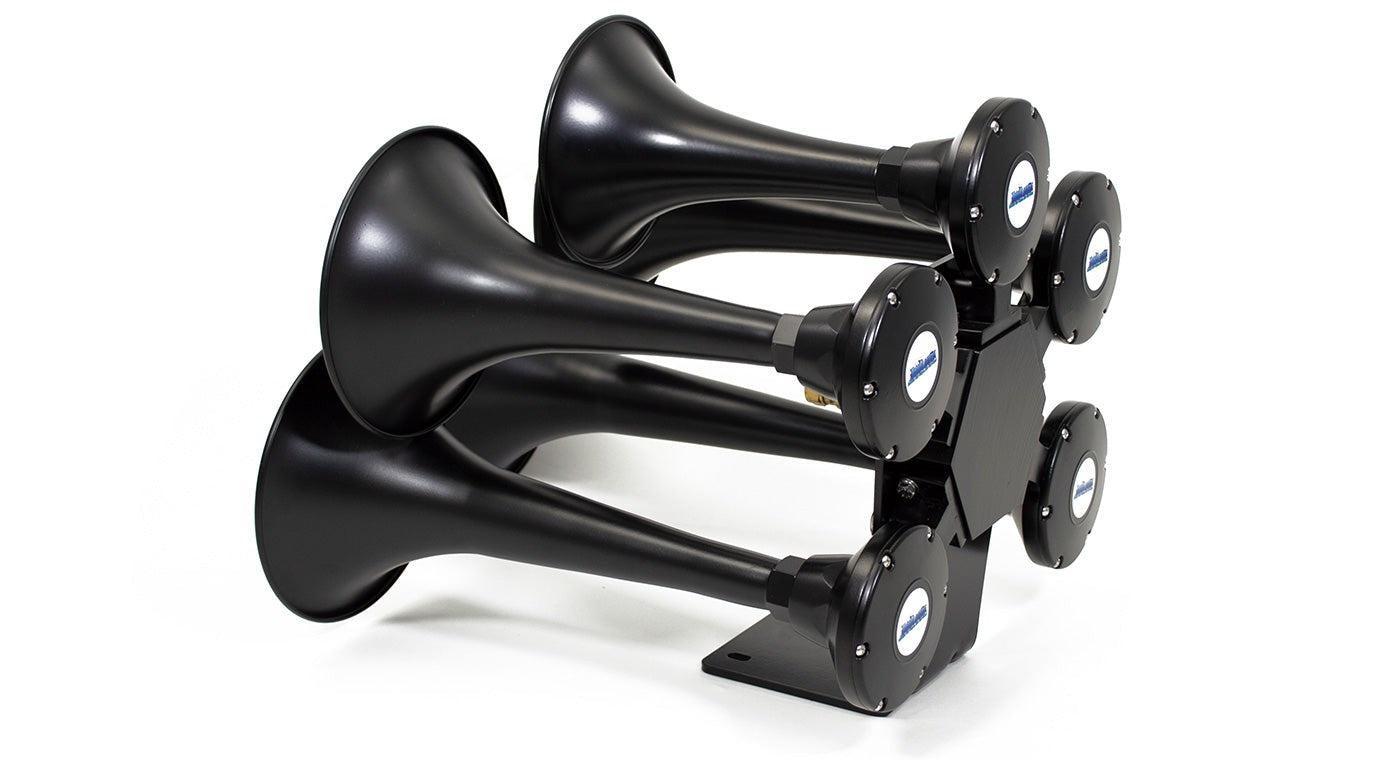

The Katrina 540 train horn Kit features our Katrina 5-chime train horn. Five distinct and low train horn tones come together to produce a blast that is sure to blow anyone away. Installation is a breeze as our Katrina comes with our 3/8" air valve pre-installed on the manifold!

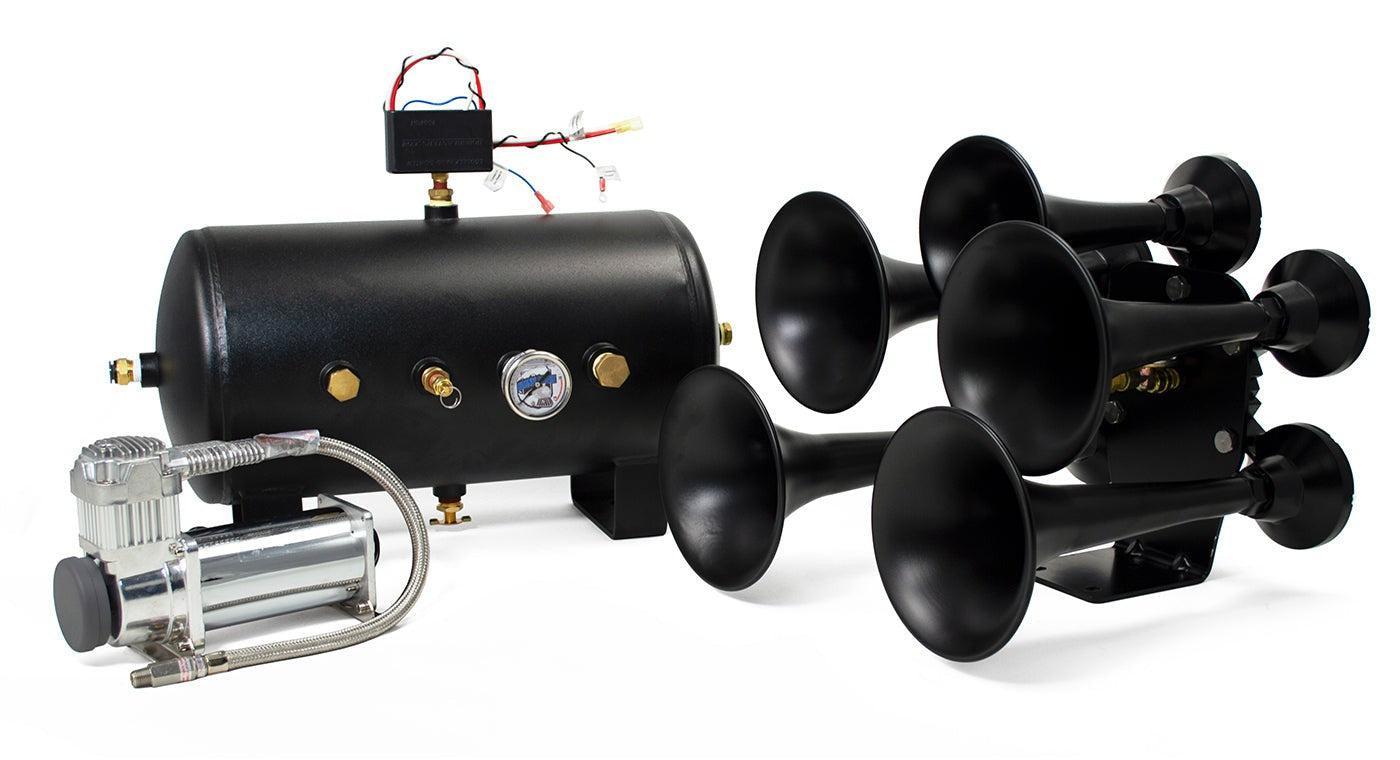

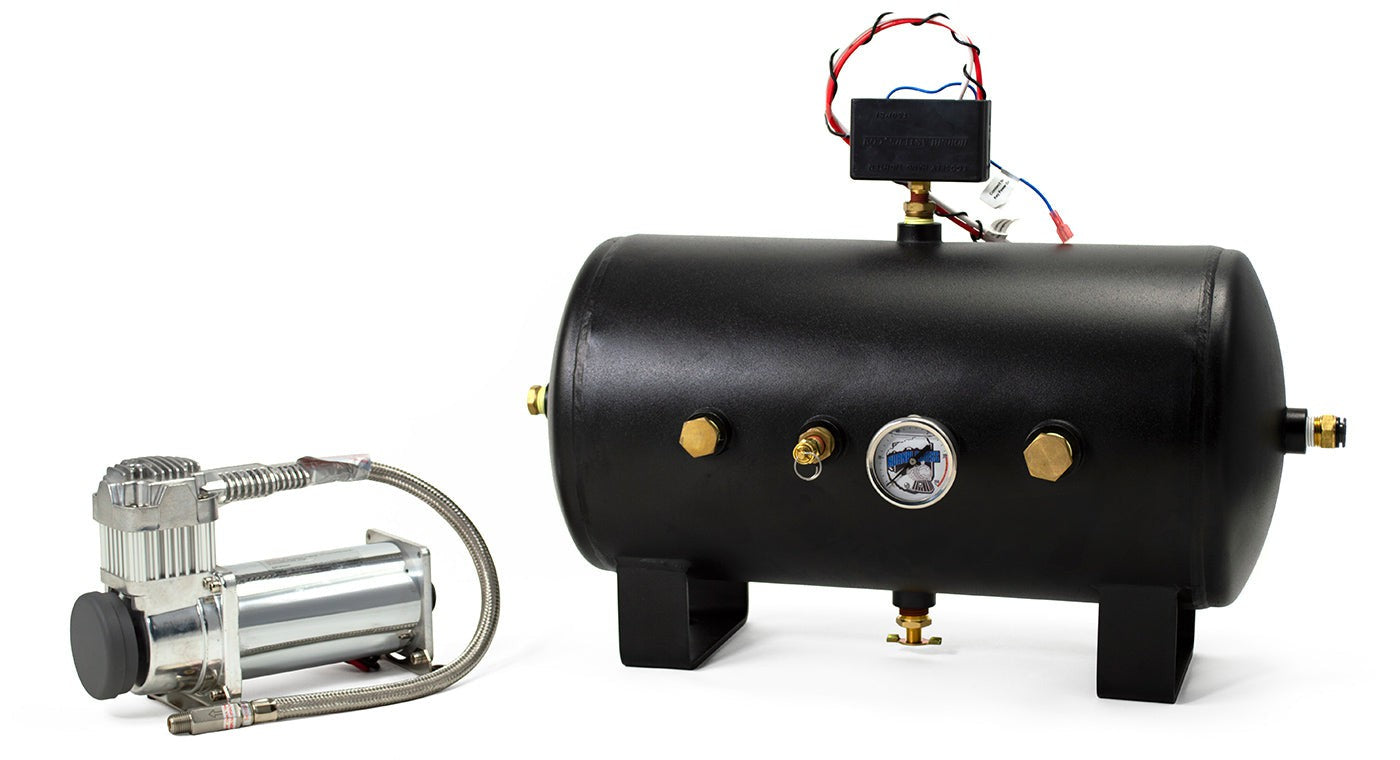

We paired our Katrina train horns with our fastest onboard air system to date. Our HornAir 540 onboard air system comes with our massive 5-gallon Black 8-Port Air Tank to provides enough air to give the Katrina up to 10 continuous seconds of blast time. The Katrina 540 features the lightning-fast Viair 400C air compressor, giving it a recharge time from 110-150 PSI of only 1 minute and 40 seconds! As with all Hornblasters horn kits, our Katrina 540 train horn kit comes complete with all the necessary hardware needed and detailed instructions.

• Quality construction
• Black finish
• 5-Chimes

• Pre-installed electric air valve
• Capable of filling tires in an emergency situation
• Stainless steel liquid-filled air pressure gauge
• Heavy-duty 400C air compressor
• Extra-large 5-gallon air tank

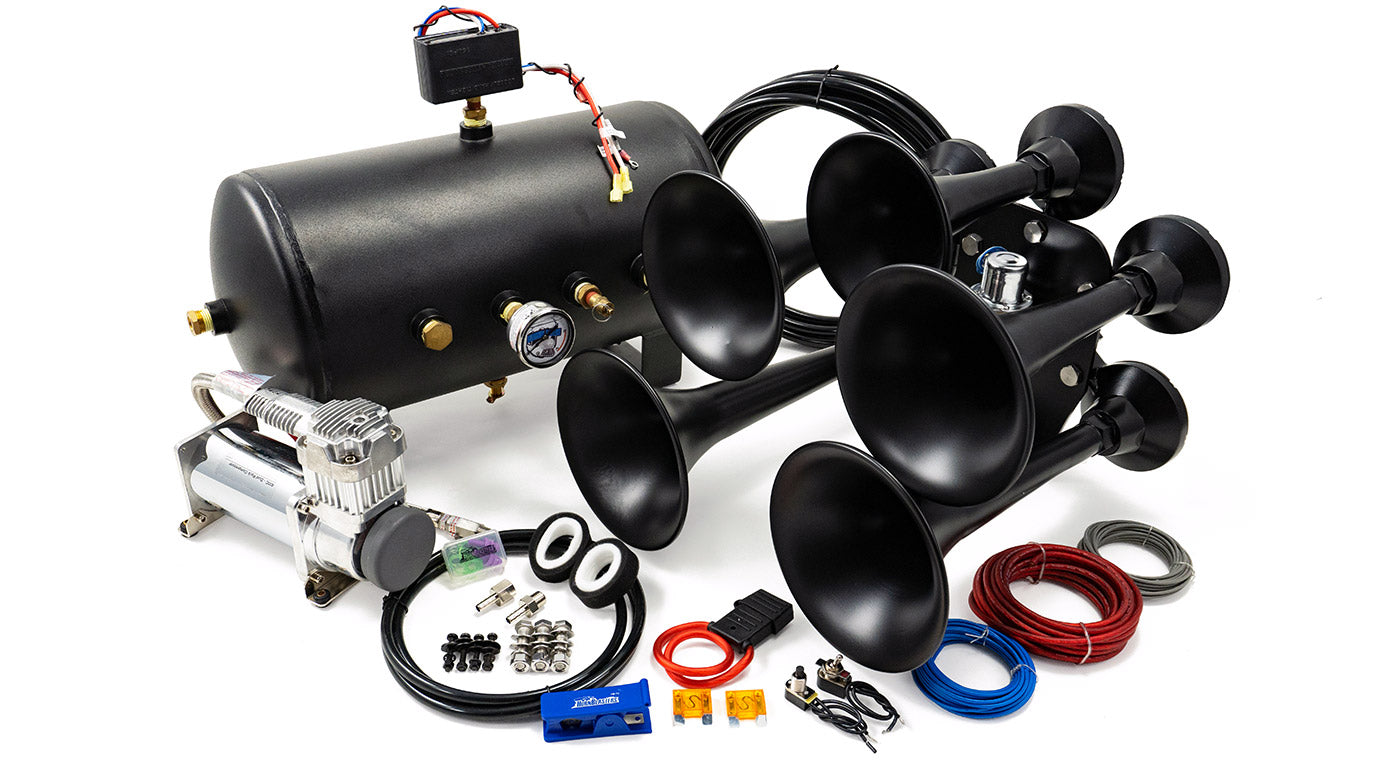

• HornBlasters Katrina 5 chime train horn
• 5-gallon 8 port air tank
• Viair 400C air compressor
• 110/150 PSI Pressure Switch w/ Built-in 40 Amp Relay
• 17ft of 1/2" air line
• Remote mountable air intake housing
• Spare air filter elements
• Brass fitting kit including a safety blow-off & drain cock
• HornBlasters 200 PSI stainless steel liquid-filled air gauge
• 22ft of 10-gauge red wire
• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire

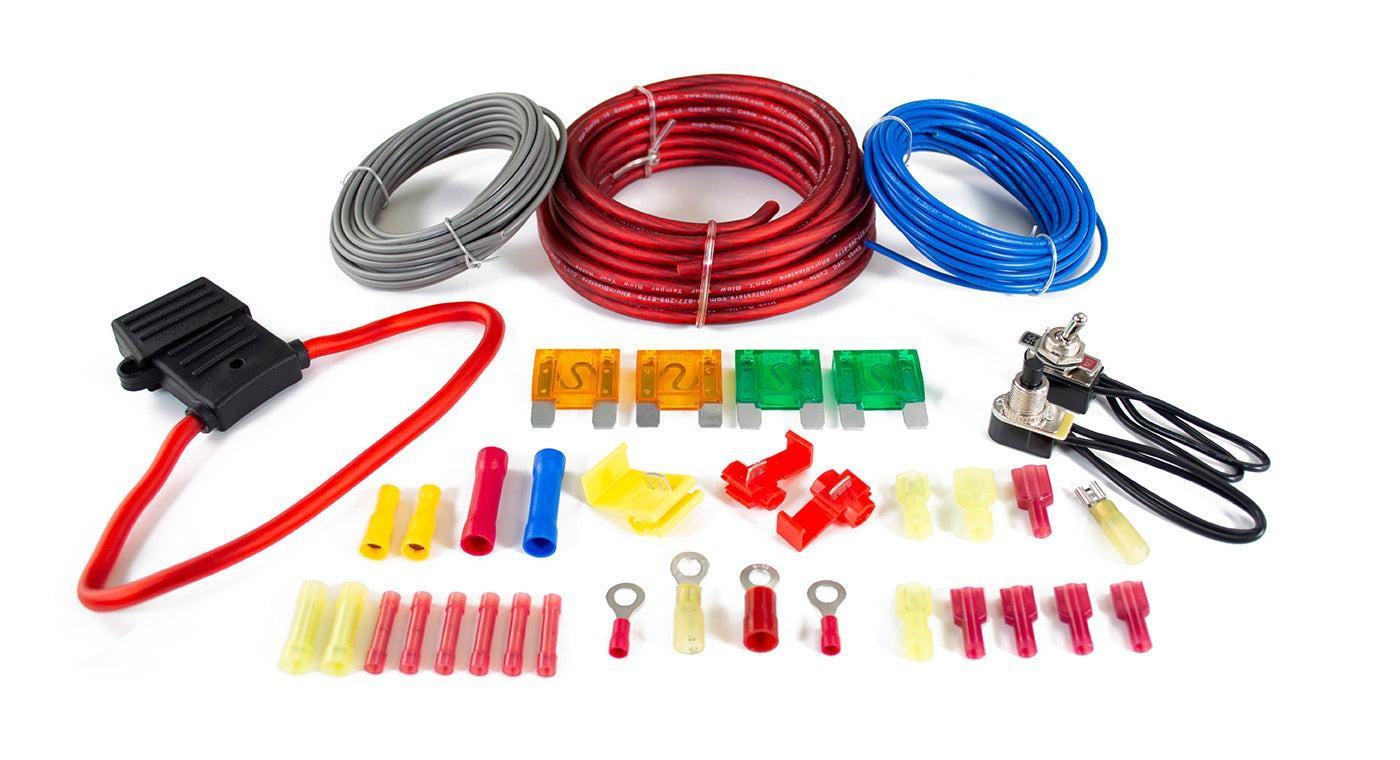

• Complete wiring kit with fuse holder & fuses

• Mounting hardware
• Air line cutter
• Earplugs
• Installation instructions

• Part Number: HK-C5B-540
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn: HornBlasters Katrina train horn
• Horn Air Inlet: 1/2" Air Line
• Horn Length: 19.5" (495.3 mm)
• Horn Width: 19.75" (501.65 mm)
• Horn Height: 13.5" (342.9 mm)
• Horn Weight: 19.8 lb (8.98 Kg)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2" NPT, x1 3/4" NPT
• Air Compressor: Viair 400C air compressor
• Average Fill Time: 1 min 30 sec
• Air Flow: 2.54 CFM at free flow
• Max Amperage: 26 amps

• Maximum Duty Cycle: 33% @ 100 PSI
• Compressor Length: 9.0″ (228.6 mm)
• Compressor Width: 4.0″ (101.6 mm)
• Compressor Height: 7.05″ (179.07 mm)
• Compressor Weight: 7.05″ (179.07 mm)

* Supply Voltage: 13.8 Volts

* Supply Voltage: 13.8 Volts

• Viair 400C air compressor manual
• Viair 400C air compressor dimensional drawing
• HornBlasters Katrina 540 instruction manual
• HornBlasters Katrina 540 air compressor wiring diagram
