Slam Specialties SS-5 Composite Air Bag

5.9" Stroke - 5.5" Diameter


Suggested Addons

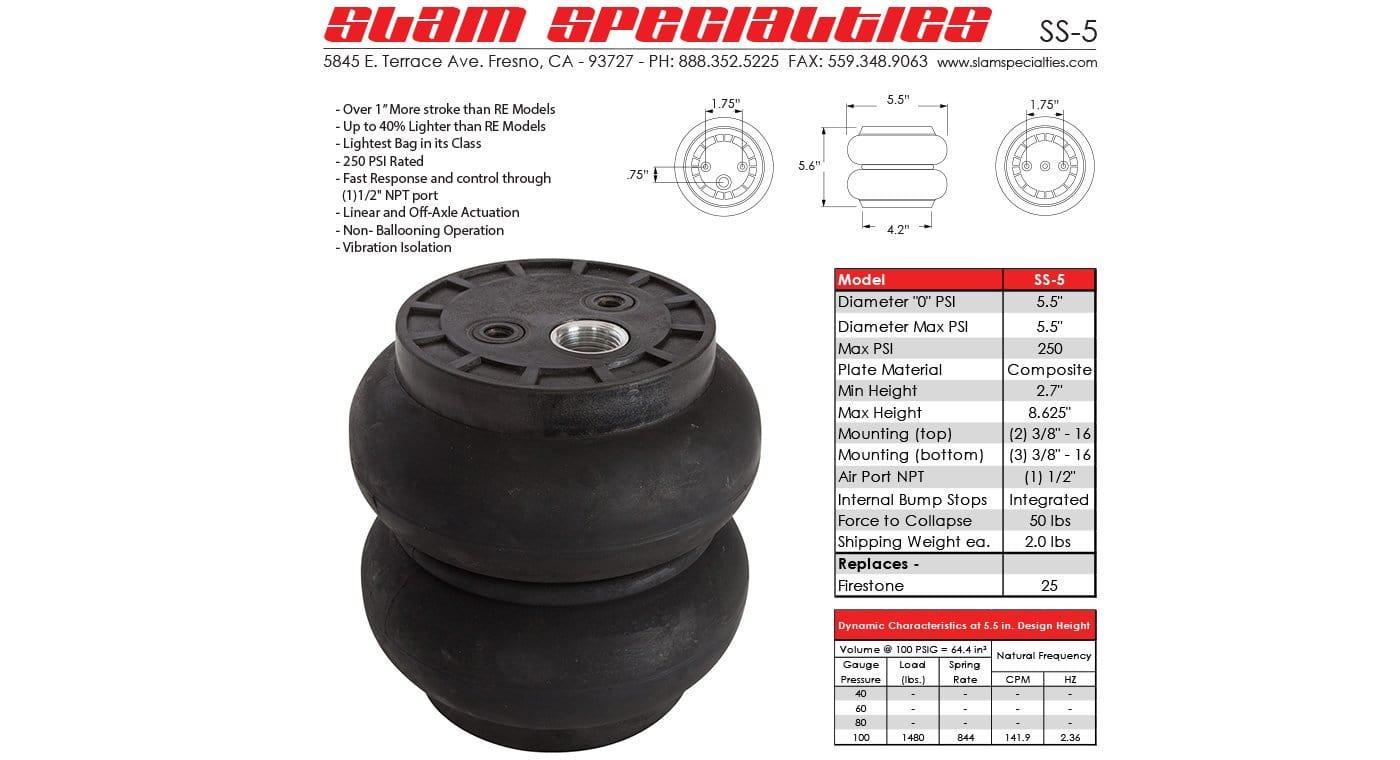

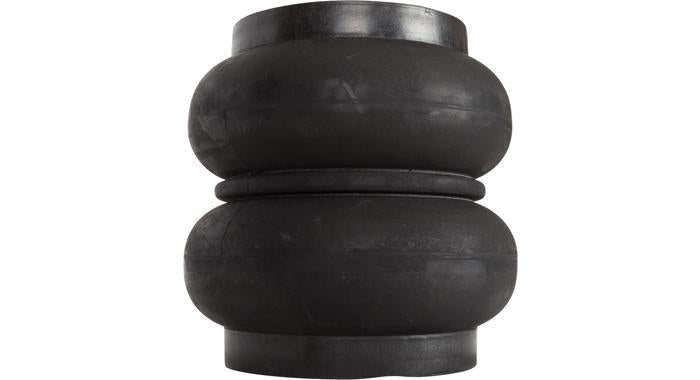

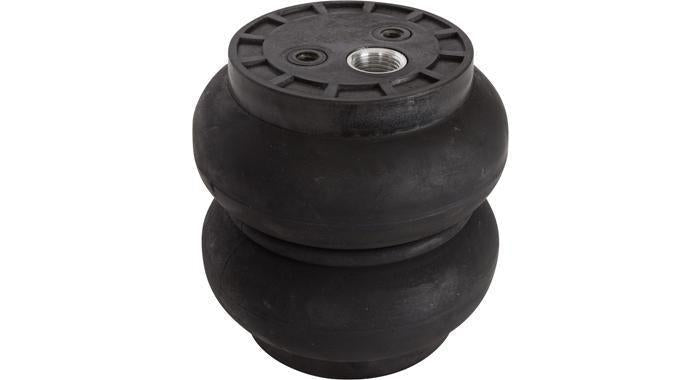

One of the most advanced airbags to hit the market, the Slam Specialties SS-5 Composite Air Bag features an innovative top plate design that helps to prevent rubbing and a non-ballooning design that allows the bag to expand upward, not sideways as it lifts your ride. The Slam Specialties SS-5 Composite Air Bag has a minimum height of 2.7” and a maximum height of 8.6", giving you a solid 5.9” of stroke to work with. The Slam Specialties SS-5 Composite Air Bag is perfect for tight installs, with its 5.5” diameter and non-ballooning design and features a single 1/2" port for maximum airflow.

  • "Up Not Out" Bag Design
  • Rated To 200 PSI
  • 1/2" Port
  • Integrated Bump Stops
  • One Slam Specialties SS-5 Air Bag
  • Part Number: AB-SS5
  • Ports: Single 1/2"
  • Max PSI: 250 PSI
  • Collapse Force: 50 Pounds (34.02 Kg)
  • Max Height: 8.6" (218.44 mm)
  • Min. Height: 2.7" (68.58 mm)
  • Stroke: 5.9" (149.86 mm)
  • Max Diameter: 5.5" (139.7 mm)
  • Top Mounting Holes: (2) 3/8"-16

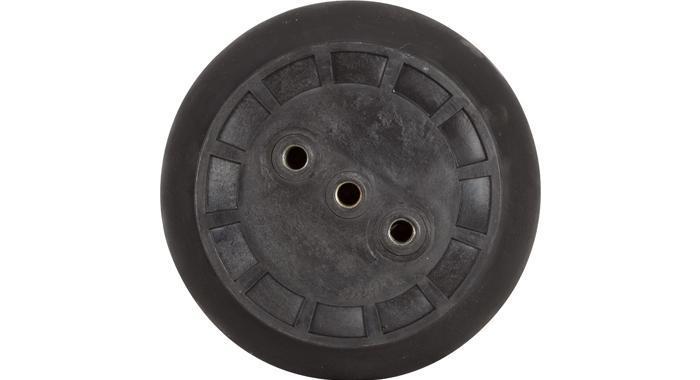

  • Bottom Mounting Holes: (3) 3/8"-16
