Bringing you that classic tugboat sound straight off the shipyard, our Tug-37 228H air horn kit is a simple, beginner-friendly air horn kit that is sure to rock the boat. Why settle for that boring car horn sound when you could sound like a boat? For anyone looking to upgrade their stock horn, but wants to turn heads with a unique tone, this is the kit for you!

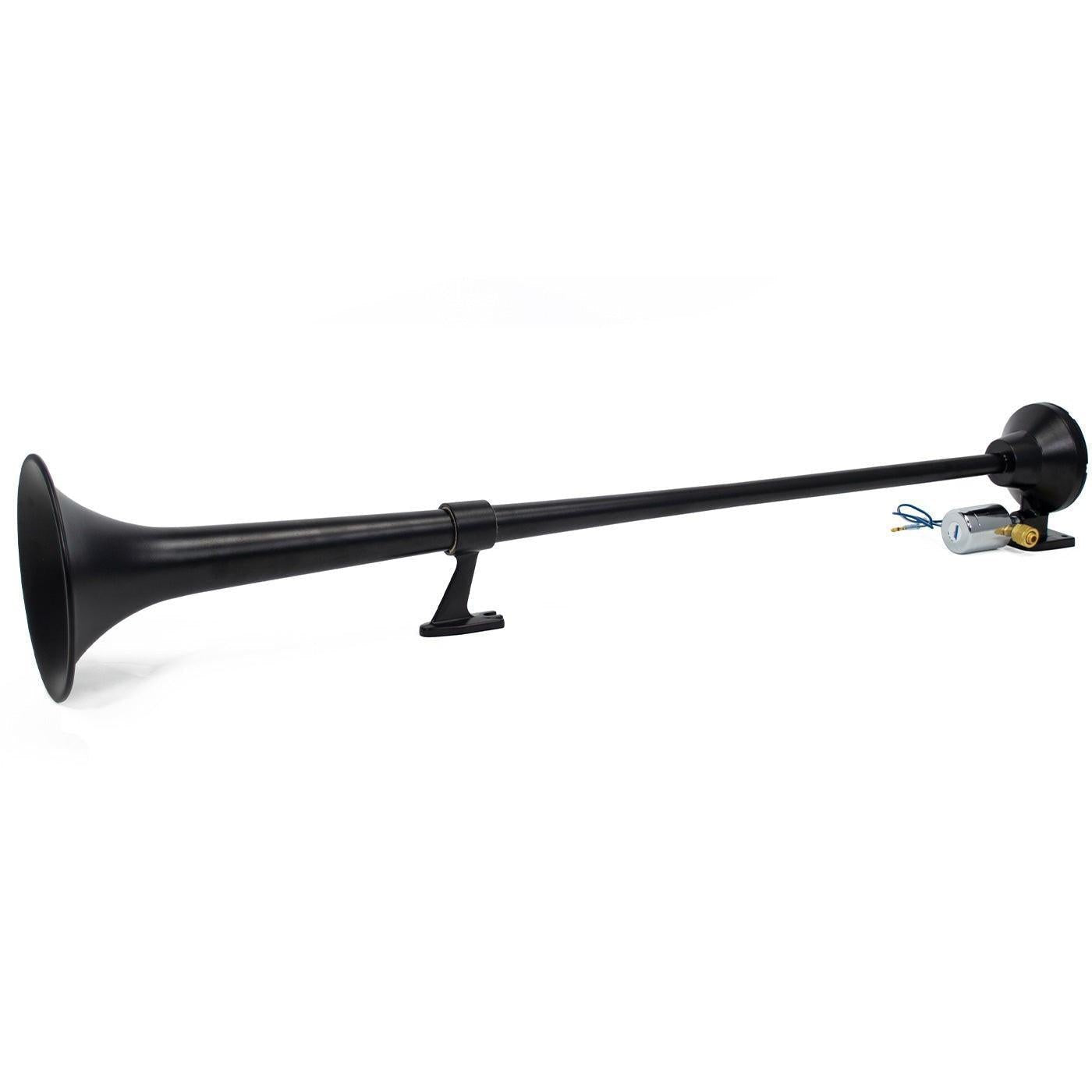

While not classified as a train horn due to the fact that it is a single bell set-up, our Tug-37 air horn’s singular bell is extremely long for an air horn giving it a much lower tone not usually seen on an air horn. Our Tug-37 is even lower and louder than other Tug horns, with a ridiculous 37-inch long black bell. We even pre-installed the required 1/4" air valve to make installation even easier!

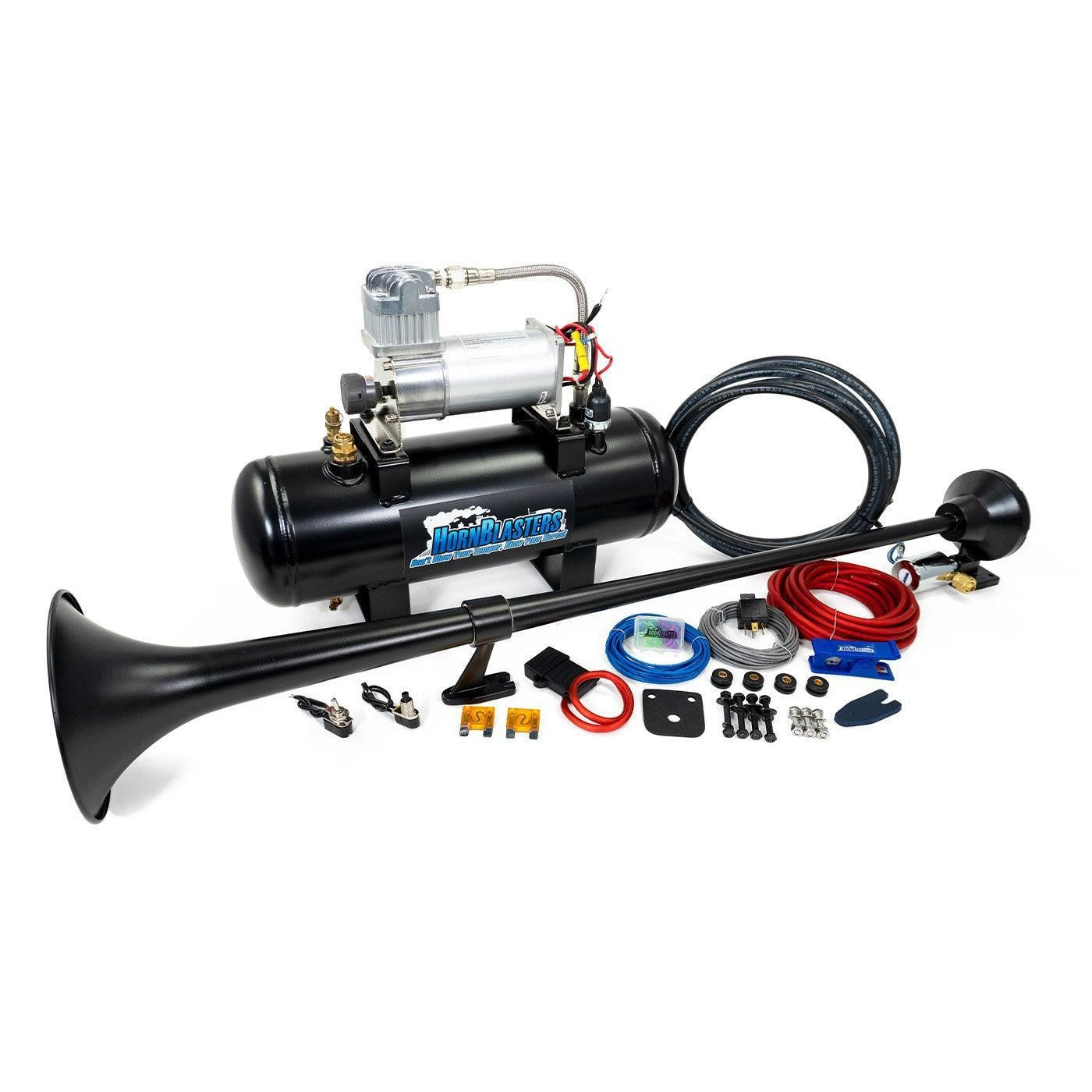

Pairing our Tug-37 air horn with our HornAir 228H air source unit is a no-brainer. When combined, they create an easy-to-install and easy on budget kit that is hard to beat. The Tug-37 228H sports a 2-gallon air tank that provides enough air to blast your Tug-37 Air Horn for up to a 7-second blast time and the 280C air compressor mounted to the top of the tank refills from 110-145 PSI in only 1 minute and 15 seconds!

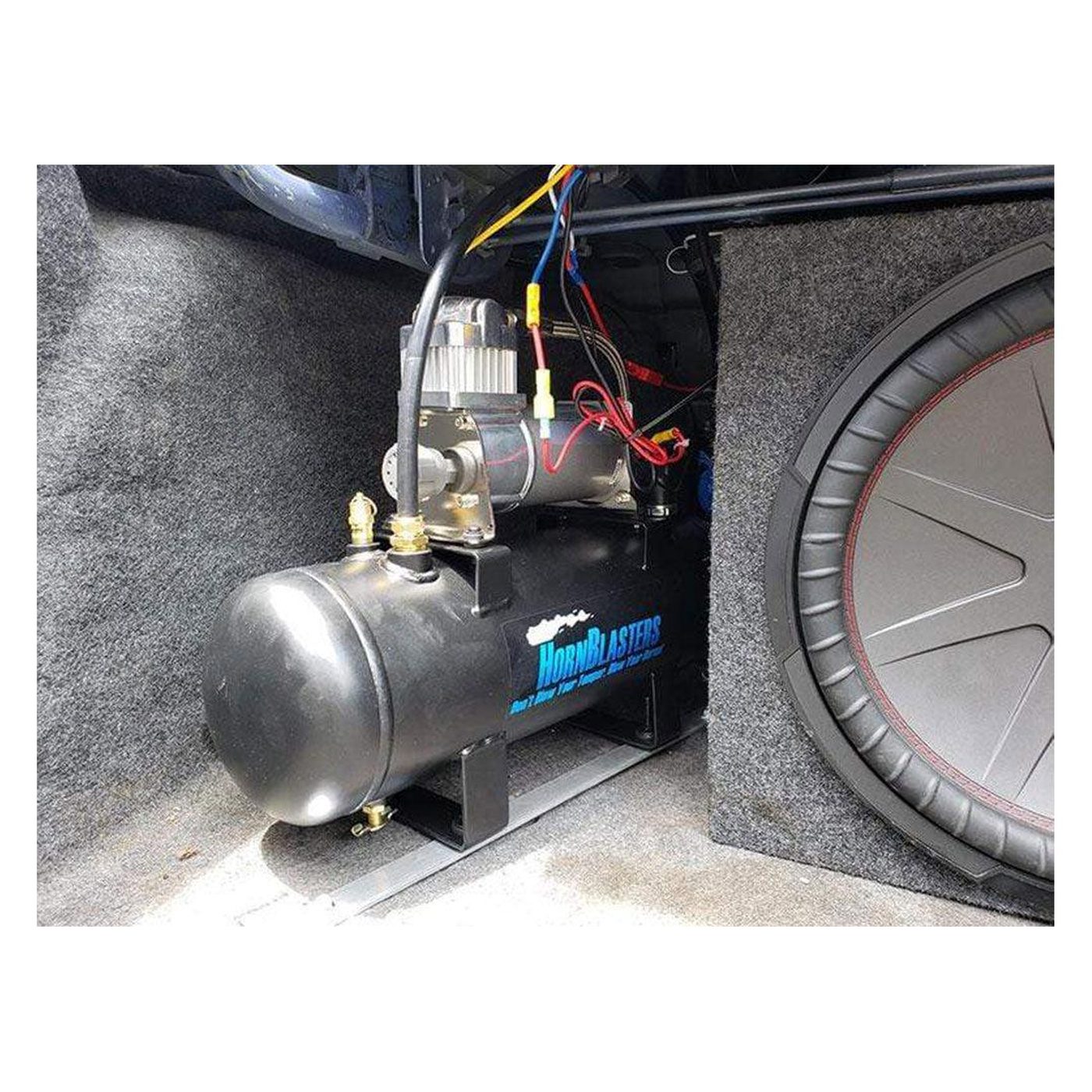

(Note: Tank mounted air compressors are not fully sealed. For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc... Failure to mount this product as directed will void the warranty)
**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher models. **
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 1.59 | 10 | 0 | 45.0 | 10 |
| 10 | 1.49 | 12 | 1.0 | 40.2 | 13 |
| 20 | 1.33 | 13 | 2.0 | 32.1 | 14 |
| 30 | 1.11 | 14 | 3.0 | 29.0 | 15 |
| 40 | 1.04 | 15 | 4.0 | 26.4 | 16 |
| 50 | 0.99 | 15 | 5.0 | 24.2 | 16 |
| 60 | 0.92 | 16 | 6.0 | 22.0 | 17 |
| 70 | 0.87 | 16 | 7.0 | 21.0 | 19 |
| 80 | 0.81 | 17 | 8.0 | 19.4 | 18 |
| 90 | 0.76 | 17 | 9.0 | 17.5 | 17 |
| 100 | 0.74 | 19 | 10.0 | 15.3 | 17 |
| 110 | 0.71 | 19 | |||
| 120 | 0.67 | 18 | |||
| 130 | 0.62 | 17 | |||
| 140 | 0.57 | 17 | |||
| 150 | 0.51 | 17 |
* Supply Voltage: 13.8 Volts
| 2.0 GALLON TANK | FILL RATE |
|---|---|
| 0 to 145 PSI | 3 min. 40 sec.(± 10 sec.) |
| 110 to 145 PSI | 1 min. 15 sec. (± 05 sec.) |
* Supply Voltage: 13.8 Volts
This product produces extreme loudness. Proper hearing protection must be worn at all times during its operation. Hearing loss or permanent damage may result from unsafe use. Use this product in a safe and responsible manner and at a distance of at least 100 meters from others. Never operate this product in a closed environment, in close proximity to living beings, or where prohibited by law.
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
