Viair Dual 450C Air Compressor Kit

(Constant Duty – 150 PSI / 3.28 CFM)

DC-450

Add 40 Amp Dual Compressor Wiring Kit Tooltip
This wiring kit includes everything you need to wire dual Viair air compressors.
addons
+$49.99
Add Gold Level Extended Warranty See price in cart
Add Platinum Level Extended Warranty See price in cart

Why choose between performance and speed when you could have both? With the Viair Dual 450C Air Compressor Kit, you don’t have to compromise with your onboard air. Delivering a combined 3.28 CFM or pressure while only pulling 44 amps and able to fill up an air tank up to 10 gallons in size, the Viair Dual 450C Air Compressor Kit gives you the durability of constant duty compressors while still giving you the power of fast-fill compressors.  With a 100% duty cycle at 100 PSI, the Viair Dual 450C Air Compressor Kit can easily power an onboard air system capable of airing up tires, run air tools, power air suspension and blast HornBlasters Train Horns! As one of the fastest constant duty compressor pairs you can get, the Viair Dual 450C Air Compressor Kit can recharge a 2-gallon tank from 110-145 PSI in a breath-taking 23 seconds and will recharge a 5-gallon tank from 110-145 PSI in just over a minute!

The Viair Dual 450C Air Compressor Kit will come complete with a remote mountable intake filter assembly, or “Air Snorkel Kit”, allowing the air intake to be moved to use clean air even if the compressors are mounted in the way of debris, moisture, and other air system contaminants. Includes two standard 1/4″ NPT stainless steel braided leader hose with check valve and insulated wiring for fast installation, as well as two heavy-duty 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off heavy-duty pressure switch.

This compressor does come with the option to add our 40 Amp Dual Air Compressor Wiring Kit to it as well!

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI CFM A BAR LPM A
0 3.28 28 0 93.0 28
10 3.04 29 1.0 83.0 30
20 2.79 32 2.0 75.4 34
30 2.65 34 3.0 71.0 37
40 2.54 36 4.0 66.6 40
50 2.44 38 5.0 61.0 41
60 2.33 40 6.0 56.0 42
70 2.19 41 7.0 52.0 44
80 2.05 42 8.0 47.0 43
90 1.94 43 9.0 42.3 42
100 1.85 44 10.0 37.5 41
110 1.72 44
120 1.62 43
130 1.50 42
140 1.38 41
150 1.27 41

 * Supply Voltage: 13.8 Volts

2.0 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 13 sec. (± 05 sec.)
110 to 145 PSI 23 sec. (± 03 sec.)
2.5 GALLON TANK FILL RATE
0 to 145 PSI 1 min. 30 sec. (± 05 sec.)
110 to 145 PSI 31 sec. (± 03 sec.)
5.0 GALLON TANK FILL RATE
0 to 145 PSI 3 min. 10 sec. (± 10 sec.)
110 to 145 PSI 1 min. 05 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

  • Permanent Magnetic Motor
  • Oil-less Design
  • High-Performance PTFE Piston Ring
  • Stainless Steel Valves
  • Moisture & Dirt Resistant
  • Gearless Direct Drive Motor
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • Stainless Steel 1/4" Braided Leader Hose
  • Remote Mountable Intake Filter Assembly
  • Insulated Wiring with Connectors

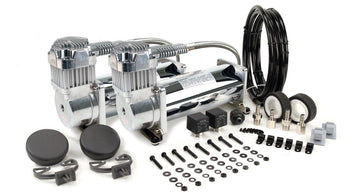

  • Dual Viair 450C Air Compressors
  • 1/4" NPT Braided Leader Hose & Check Valve
  • Dual Viair 40 Amp Relays
  • Viair 110/145 PSI Pressure Switch
  • Installation Instructions
  • Remote Mount Two-Stage Air Filter
  • Replacement Filter Elements
  • Mounting Hardware
  • Part Number: DC-450 / DC-450C
  • Manufacturer Part Number: 45012 / 45013
  • Voltage: 12 Volts DC
  • Combined Max Amperage: 40 amps
  • Maximum Duty Cycle: 100% @ 100 PSI
  • Maximum Pressure: 150 PSI
  • Max Tank Size: 10 Gallons
  • CFM @ 0 PSI: 3.28 CFM
  • Each Length: 11.25″ (285.75 mm)
  • Each Width: 4.0″ (101.6 mm)
  • Each Height: 6.75″ (171.5 mm)
  • Weight: 19.5 lb (8.85 Kg)
