HornBlasters 120 PSI 1.5 Gallon Air Source Kit

MC-127H


Our budget and beginner-friendly all-in-one air source solution! Our 120 PSI 1.5 Gallon Air Source Kit gives you everything you need to bring onboard air to your ride in a compact and easy to install an air source unit that is pre-wired and pre-plummed for your convenience. Our 120 PSI 1.5 Gallon Air Source Kit pairs amazingly with our train horns and air horns, giving you a quick and easy way to power your horns while taking it easy on your wallet.

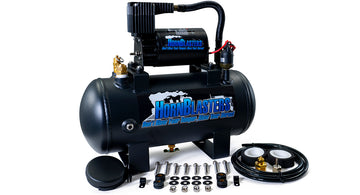

We outfitted our 120 PSI 1.5 Gallon Air Source Kit with a powerful Viair 275C Air Compressor mounted directly to the tank. Our 120 PSI 1.5 Gallon Air Source Kit is one of the fastest air-source units that we carry, recharging the 1.5-gallon tank from 90-120 PSI in only 35 seconds! Additionally, our 120 PSI 1.5 Gallon Air Source Kit has a 25% duty cycle, giving you extra reliability in case of emergencies.

That best feature about our 120 PSI 1.5 Gallon Air Source Kit is the ease of installation. With our 120 PSI 1.5 Gallon Air Source Kit already pre-wired and pre-plumbed, all you need to do is connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting and you are all ready to get out and honking! If you just want to get your horn an air supply without getting a complicated onboard air system, this is the perfect kit for you!

This Air Source Unit is featured in these Horn Kits:

- Conductor's Special 127H - Dolphin 127H
- Bullet 127H    - Jackass 127H
- Psychoblasters 127H - Bandit 127H
- Mother Trucker 127H - Tug-37 127H
- Safety 127H - Shart 127H
- Outlaw Chrome 127H - Outlaw Black 127H
- Mother Trucker Chrome 127H - Rocker 127H

**Tank mounted air compressors are not fully sealed.  For this reason, the manufacturer recommends the tank/compressor system be mounted in the upright position in an enclosed space away from moisture, dirt, debris, etc**

**Detaching the compressor from the tank will void your warranty on this kit. If you need a solution where the compressor is detached, please look at our 232 and higher model kits. **

PSI CFM A BAR LPM A
0 2.03 10 0 57.5 10
10 1.17 12 1.0 32.0 13
20 1.11 13 2.0 30.0 14
30 1.04 15 3.0 28.5 16
40 1.01 15 4.0 26.5 16
50 0.97 16 5.0 24.5 17
60 0.92 16 6.0 22.5 17
70 0.88 17 7.0 21.5 18
80 0.83 17 8.0 20.0 18
90 0.79 17 9.0 18.5 18
100 0.76 18 10 17.0 17
110 0.72 18
120 0.67 18

* Supply Voltage: 13.8 Volts

1.5 GALLON TANK FILL RATE
0 to 120 PSI 2 min. 10 sec. (±10 Sec.)
90 to 120 PSI 35 sec. (± 5 Sec.)

 * Supply Voltage: 13.8 Volts

  • Pre-Installed Pressure Switch
  • 1/4" NPT 175 PSI Safety Blow-Off
  • 1/4" Drain Cock
  • 1/2" NPT Compression Fitting
  • Insulated Wiring with Connectors
  • Installation Instructions
  • HornBlasters 275c Air Compressor
  • 1.5 Gallon HornBlasters Air Tank
  • 90/120 PSI Pressure Switch
  • 145 PSI Safety Valve & Drain Cock
  • 1/2" Compression Fitting
  • Part Number: MC-127H
  • Air Source Kit
  • Operating Pressure: 120 PSI
  • Length: 15.0″ (381 mm)
  • Width: 6.0″ (152.4 mm)
  • Height: 13.0″ (330.2 mm)
  • Air Source Tank
  • Volume: 1.5 gals (5.6 L)
  • 1/4" NPT Ports: 5
  • Length: 15″ (381 mm)
  • Width: 6″ (152.4 mm)
  • Height: 8.5″ (215.9 mm)
  • Weight: 8.65 lb (3.92 Kg)
  • Air Source Compressor
  • Compressor Model: 275C
  • Voltage: 12 Volts
  • Max Amperage: 18 Amps
  • Max Output: 2.03 CFM
  • Maximum Duty Cycle: 25% @ 100 PSI
  • Maximum Working Pressure: 150 PSI
  • Length: 6.5″ (165.1 mm)
  • Width: 3.5″ (88.9 mm)
  • Height: 4.5″ (114.3 mm)
  • Weight: 5.1 lb (2.31 Kg)
