HornBlasters 120 PSI 1.5 Gallon Air Source Kit

MC-127H

  • This HornBlasters Air Source Kit provides a hefty 1.5 gallons (approx. 5.7 liters) of air at 120 PSI. This self contained unit has everything it needs to provide a safe, reliable, and worry-free 12-volt on-board air solution. It comes complete with a safety blowoff valve, drain cock, pressure switch, and a compression fitting making this unit the perfect air source solution for lightweight and compact applications. The HornBlasters 127H unit comes completely pre-plumbed and pre-wired saving you time and energy!

    The unit comes with a pressure switch, safety blow-off valve, drain cock, and a 14in compression fitting. All you need to do is supply power and the unit automatically builds up to 120 PSI and turns off. When you drop below 90 PSI the compressor will kit back on and recharge your air supply.

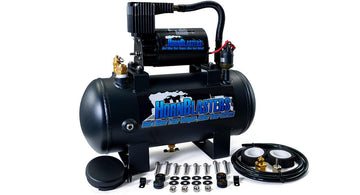

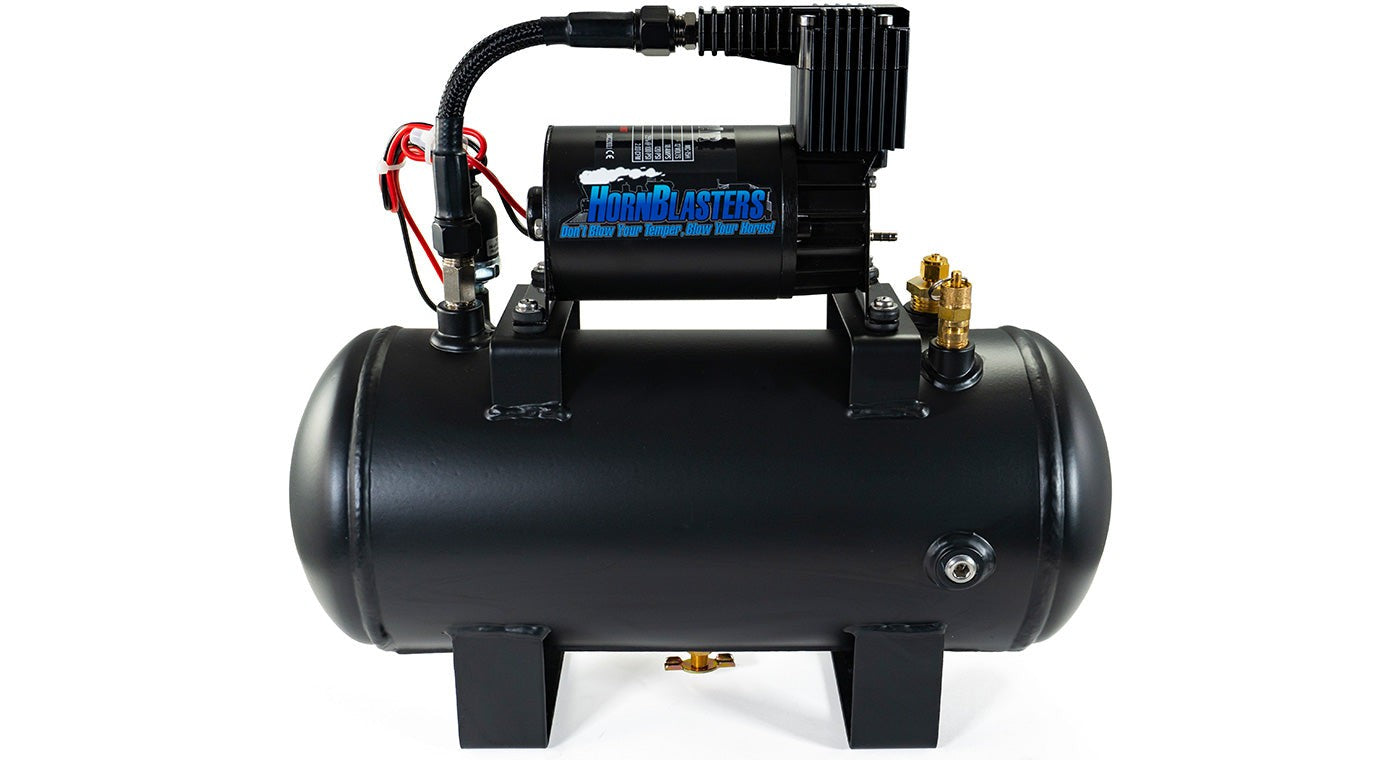

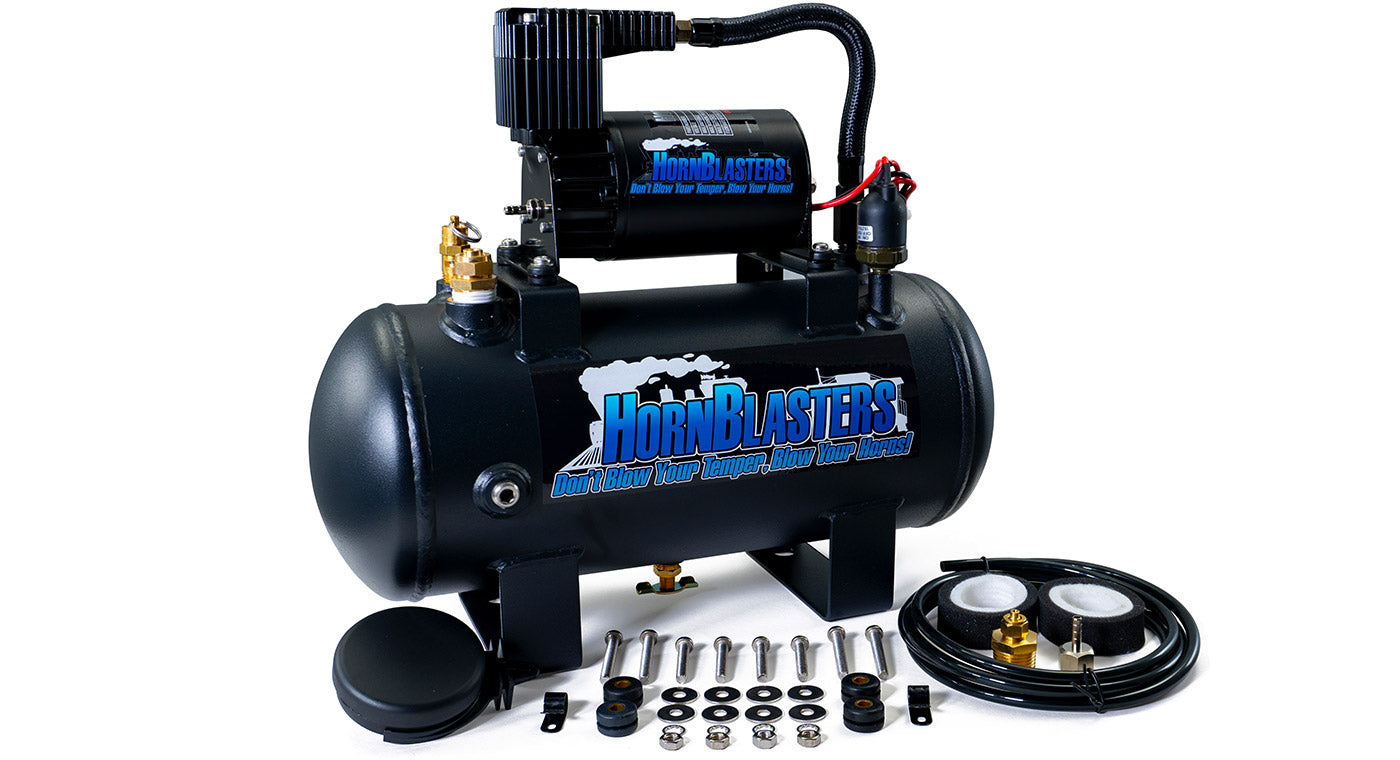

    This air source comes preassembled as seen in the photo above. All tank fittings are installed, and the compressor is ready to be fired up!

    1. 1.5 Gallon HornBlasters Air Tank
    2. HornBlasters 275c Air Compressor
    3. Pressure Switch (90 PSI on, 120 PSI off)
    4. 1/4" NPT 175 PSI Safety Blow Off
    5. 1/4" Drain Cock
    6. 1/2" NPT Compression Fitting
    7. Insulated Wiring with Connectors
    8. Installation Instructions
    1. HornBlasters 275c Air Compressor
    2. 1.5 Gallon HornBlasters Air Tank
    3. 90/120 PSI Pressure Switch
    4. 145 PSI Safety Valve & Drain Cock
    5. 1/2" Compression Fitting
    1. Part Number: MC-127
    2. Manufacture: Viair
    3. Model: 20003
    4. Air Source Kit
    5. Operating Pressure: 120 PSI
    6. Length: 15.0″ (381 mm)
    7. Width: 6.0″ (152.4 mm)
    8. Height: 13.0″ (330.2 mm)
    9. Air Source Tank
    10. Volume: 1.5 gal (5.6 L)
    11. 1/4" NPT Ports: 5
    12. Length: 15″ (381 mm)
    13. Width: 6″ (152.4 mm)
    14. Height: 8.5″ (215.9 mm)
    15. Weight: 8.65 lb (3.92 Kg)

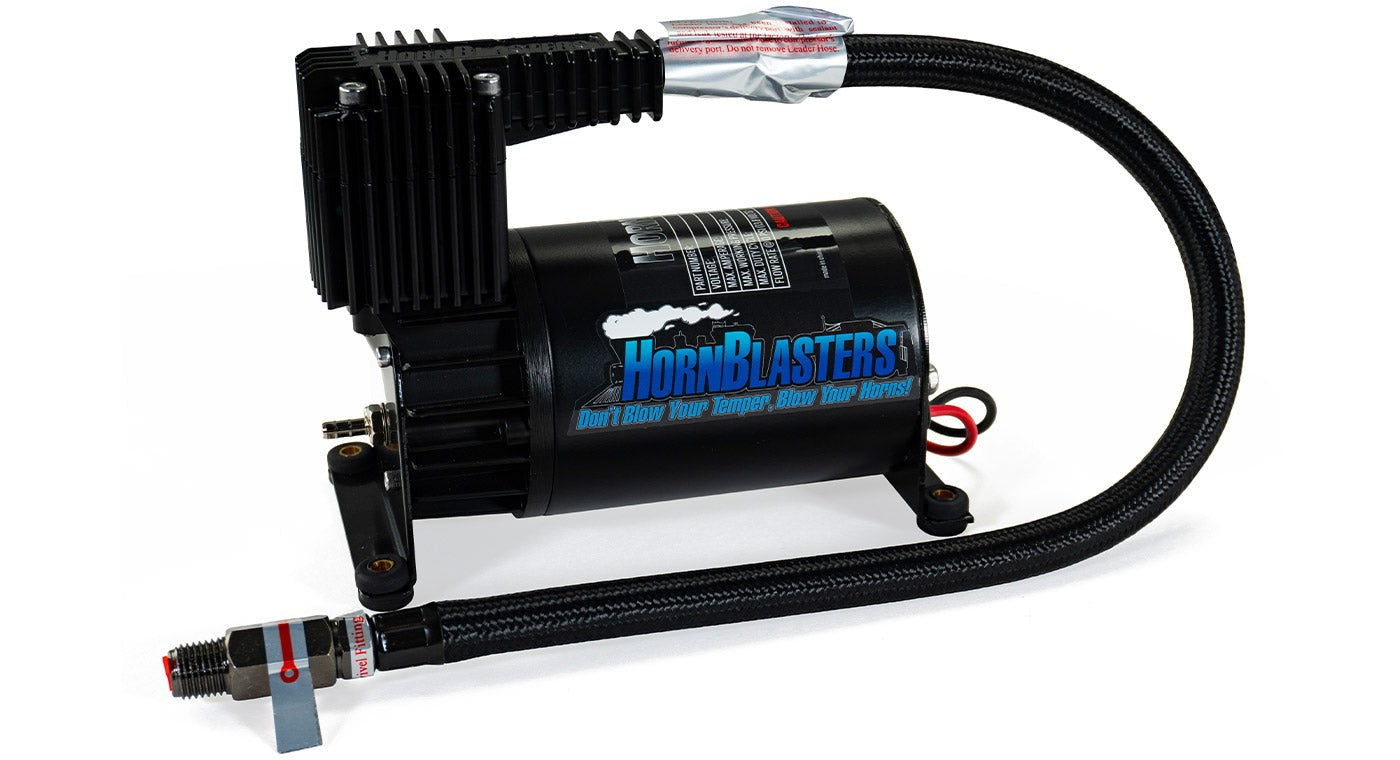

    16. Air Source Compressor
    17. Voltage: 12 Volts
    18. Max Amperage: 18 Amps
    19. Max Output: 2.03 CFM
    20. Maximum Duty Cycle: 25% @ 100 PSI
    21. Maximum Working Pressure: 150 PSI
    22. Length: 6.5″ (165.1 mm)
    23. Width: 3.5″ (88.9 mm)
    24. Height: 4.5″ (114.3 mm)
    25. Weight: 5.1 lb (2.31 Kg)
