These check valves have been specifically designed to work with Viair air compressors. They provide maximum resistance to prevent any air leaks without dampening the power of your Viair air compressor.

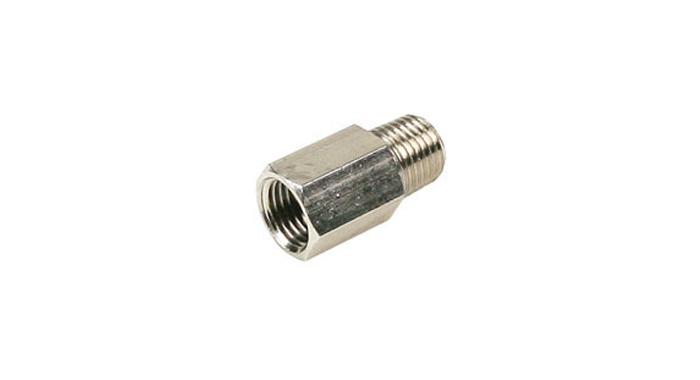

The check valve is threaded 3⁄8in M NPT on one side and 3⁄8″ F NPT on the other. It threads flawlessly into any NPT ported fitting or tank. Recommended torque spec for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.
A check valve is a critical part of any air compressor system. A check valve ensures that air can only flow one-way through it. In an air system, it normally sits between an air tank and an air compressor and prevents tank pressure from leaking back through the air compressor. Without this, it would take much longer to fill your air tank, leave the potential for leaks to occur, and even damage your air compressor.
Please Note: - During installation, only use appropriate size wrench and turn 15° past hand tight using thread sealant or Teflon tape.
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.
I used to to stop backflow between my compressors, pneumatic air dryer and my air tank. It basically prevents over pressurization from the heat of the day and prevents my air dryer from cracking as a result. Works great.
