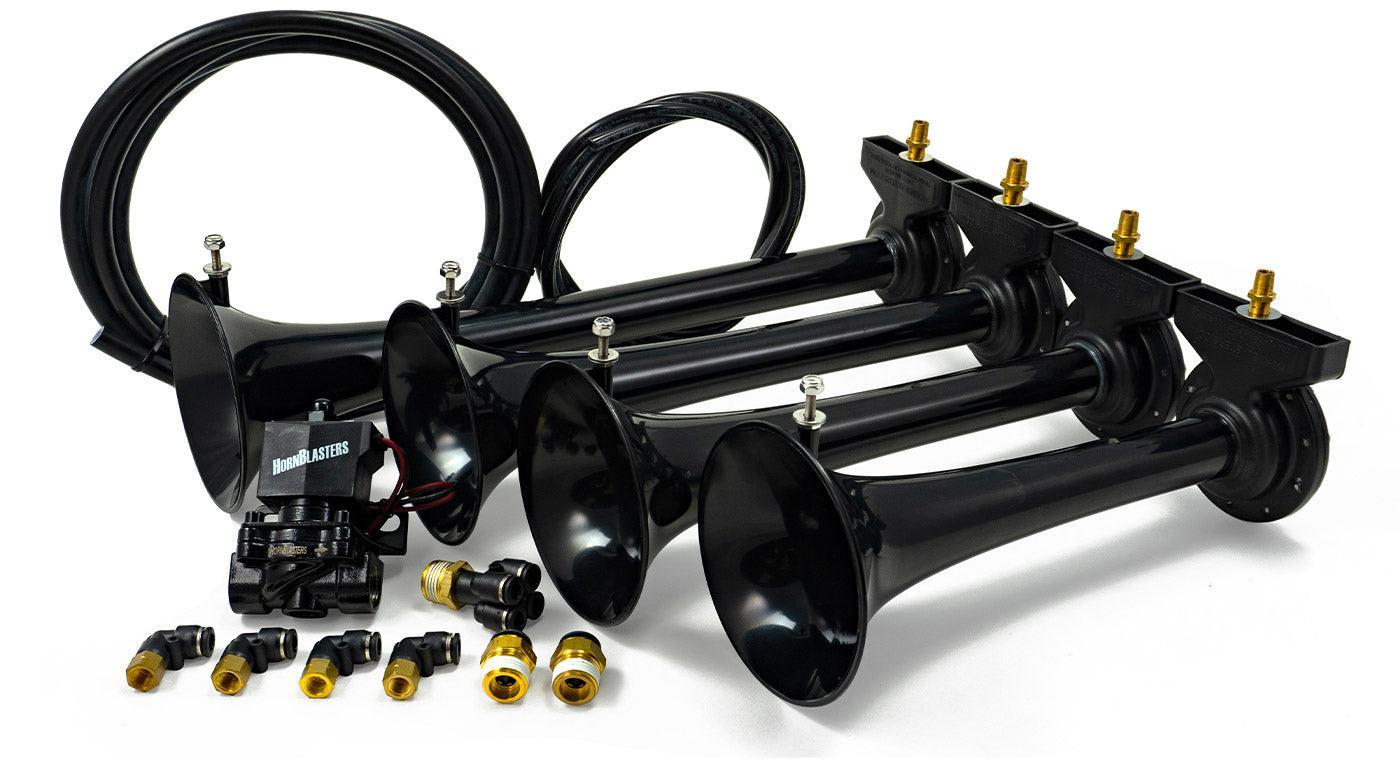

Conductor's Special 544 Nightmare Edition Train Horn Kit

Need a train horn kit that can do more than just blow horns? With our HornBlasters Conductor’s Special 544 Nightmare Edition train horn kit you get a complete kit that not only has some of the loudest horns you can buy, but also an onboard air system that can handle anything from tire inflation to air suspension. If you need a workhorse out of your onboard air system and still want to be as loud as possible, this is your kit!

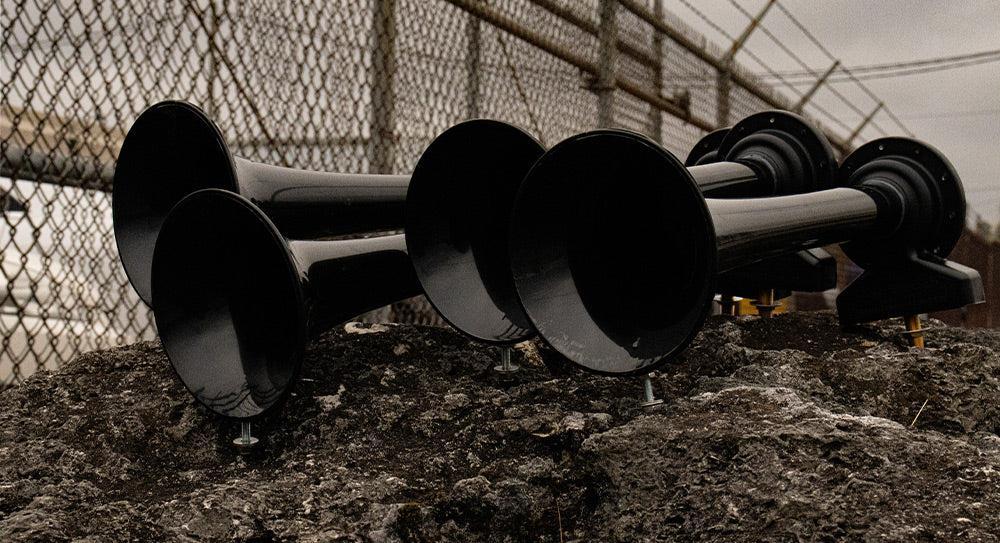

No Conductor’s Special kit would be complete without our legendary Shocker XL train horns. Our Shocker XL train horns are hand-tuned to the US Train Horn Chord and are designed to sound like and pack as much of a punch as an authentic locomotive horn! Constructed from an ultra-durable fiberglass-reinforced ABS composite with stainless-steel diaphragms and backed by a lifetime warranty against manufacturer defects, you get a train horn that is not only insanely loud but ridiculously durable as well.

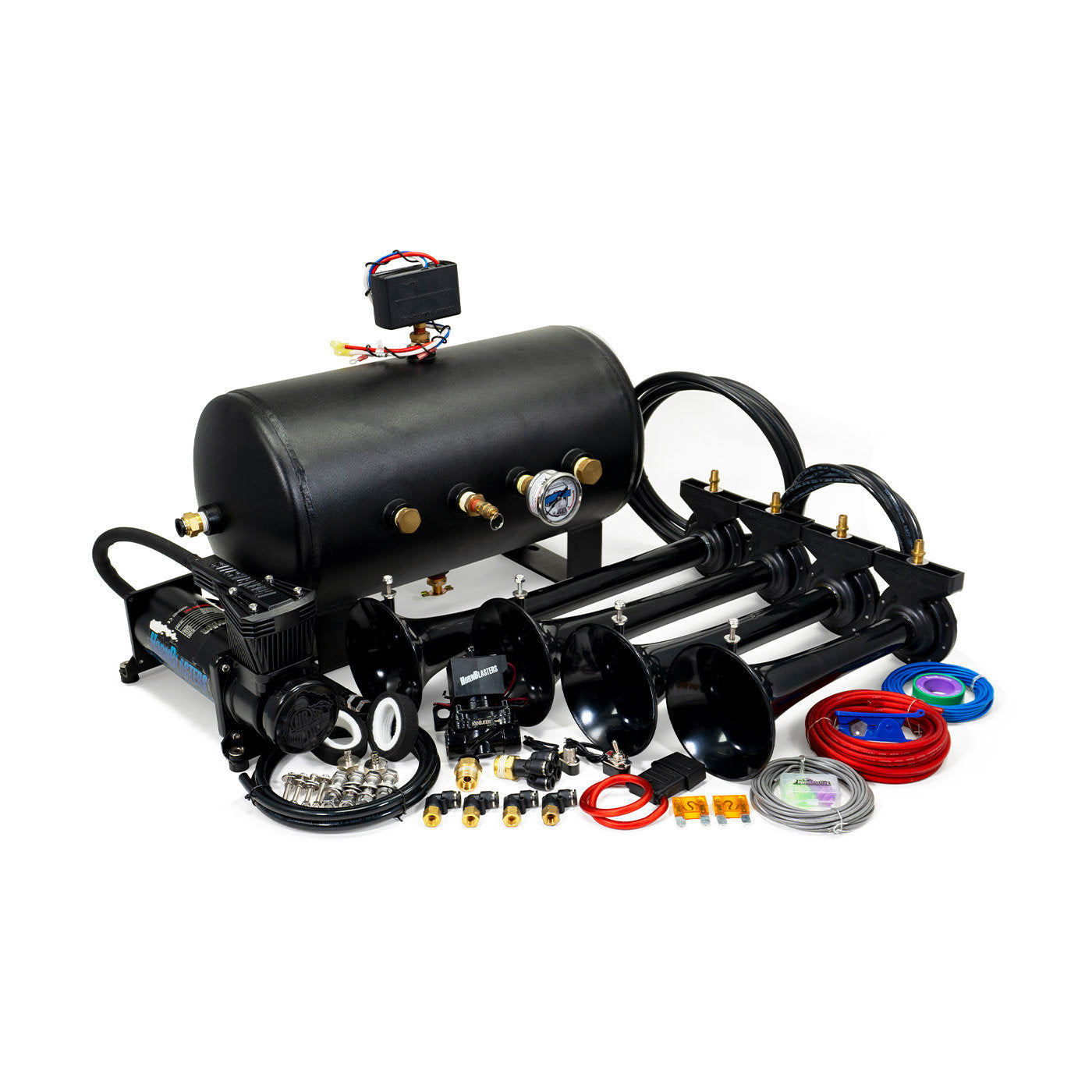

The backbone of our Conductor’s Special 544K train horn kit is our 544K onboard air system. Our 5-gallon black 8-port air tank supplies you with enough air to honk the Shocker XL train horns for up to 8-10 seconds as well as handle just about any pneumatic job you can throw at it. Our Nightmare Edition includes a beautiful Stealth Black Viair 444C air compressor that is known for its performance and dependability, able to recover the 5-gallon air tank from 110 to 150 PSI in just 2 minutes and 50 seconds!

• The loudest horns we manufacture, be heard for miles!
• Stainless steel internals combined with the fiberglass-reinforced ABS construction ensures these horns are extremely durable through all conditions!
• Individually mounted horns for flexible installation
• All-inclusive train horn kit with everything needed for installation
• 150 PSI 5-gallon air system provides 8-10 seconds of honk time
• Capable of filling tires and using small air tools

Please note: The 6 horn upgrade kit does NOT include the extension brackets to connect to our STDK bracket or Shocker XL horn mount.

CUSTOMER VIDEO REVIEW OF THESE HORNS

• Shocker S4 train horns
• 1/2" NPT Black Widow stainless steel electric air valve
• 5-gallon 8 port air tank
• Viair 444C air compressor
• 110/150 PSI pressure switch w/ 40 amp relay
• Remote mountable intake filter
• Spare air filter elements
• 10ft of 5/16" D.O.T. approved air line
• 17ft of 1/2" D.O.T. approved air line
• 6ft of 3/8" airline (for air compressors air intake)
• 22ft of 10-gauge red wire

• 22ft of 18-gauge blue wire
• 22ft of 18-gauge grey wire
• Complete wiring kit with fuse holder & fuses

• Brass NPT fitting kit including a safety blow-off & drain cock
• Mounting hardware
• Detailed instructions
• Earplugs
• Air line cutter

• Horn: Shocker XL train horn
• Horn Kit Part Number: HK-S4-544K
• Operating Pressure: 150 PSI
• Restart Pressure: 110 PSI
• Voltage: 12-Volt DC
• Horn Material: High-impact fiberglass reinforced ABS
• Horn Measurements

• № 1 19.50″ (495.30 mm)	№ 2 16.25″ (412.75 mm)
  № 3 14.75″ (374.65 mm)	№ 4 12.75″ (323.85 mm)

• Horn Flare: 5″ (127 mm)
• Air Tank: HornAir 5-gallon 8 port air tank
• Tank Length: 20.5″ (520.7 mm)
• Tank Diameter: 9.5″ (241.3 mm)
• Tank Height: 11.5″ (292.1 mm) (With Legs)
• Tank Weight: 20 lb (9.07 Kg)
• Tank Ports: x7 1/2" NPT, x1 3/4" NPT

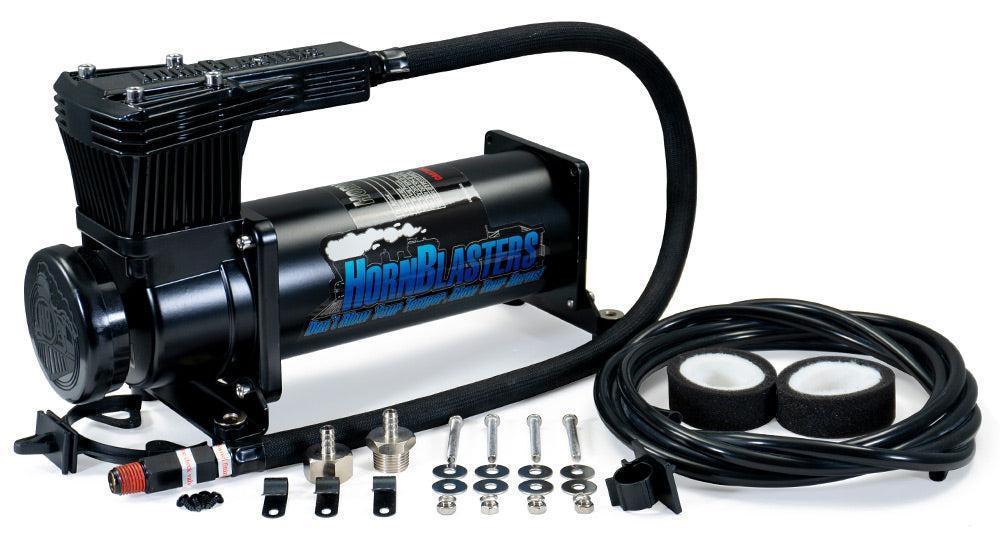

• Air Compressor: Viair 444C air compressor
• Average Fill Time: 8 Min 10 Sec from zero PSI, 3 Min refill
• Air Flow: 1.67 CFM
• Max Amperage: 19 amps
• Maximum Duty Cycle: 100% @ 100 PSI
• Compressor Length: 10.87″ (276.09 mm)
• Compressor Width: 4″ (101.6 mm)
• Compressor Height: 6.75″ (171.5 mm)
• Compressor Weight: 11 lb (4.99 Kg)

* Supply Voltage: 13.8 Volts

* Supply Voltage: 13.8 Volts

• Viair 444C air compressor manual
• Viair 444C air compressor dimensional drawing
• HornBlasters Conductor's Special 544 instruction manual
• HornBlasters Conductor's Special 544 air compressor wiring diagram
