HornAir 8OB2 Onboard Air System

Honking & Heavy Duty Pneumatic Use

HA-8OB2

Add 1/2″ Electric Drain Valve Kit
This kit has everything you need to drain your tank from the push of a button from inside the cab!
+$84.99
Add Tire Inflation Kit
Our Tire Inflation Kit includes a 30' Coil Hose, Tire Inflation Gun, & Air Relocation Kit!
+$79.99
Add 220 PSI Digital Air Pressure Gauge
Using a tank mounted sensor wired directly to your gauge, our 220-PSI rated Digital Air Pressure Gauge delivers unparalleled accuracy with microprocessor stabilized readings.
+$149.99

YOU LOOK LIKE YOU COULD USE SOME FRESH AIR.

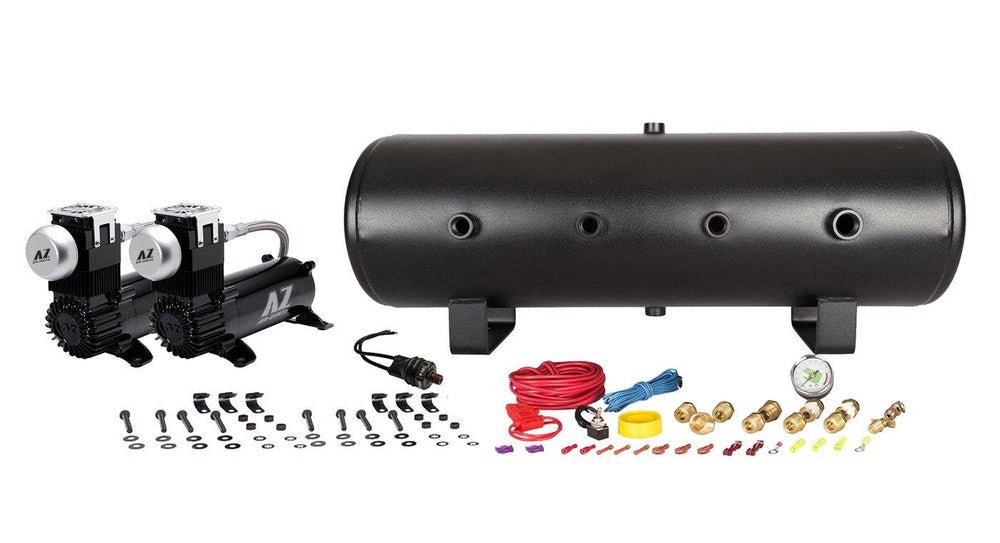

The HornAir 8OB2 fast-fill onboard air kit is not to be underestimated. With an 8 gallon HornAir air tank, you never need to worry about not having enough air to get the job done again. This air system is more than enough to run air tools or for any heavy-duty pneumatic use as well as using horns.

The powerhouse that fills the massive 8-gallon, 8-port tank is a set of dual Air Zenith OB2 air compressors. This comes together to give you a system that's capable of recovering your 8 gallon tank in a blazing 40 seconds

This package is perfect for load-leveling air springs or air suspension. Also perfect for airing up tires or any other pneumatic use. Please note that if you use horns, you will still need an air valve kit to connect the system properly.

Unlike some other air systems, HornAir onboard air systems come with a complete wiring kit including a fuse holder. This takes out the guesswork on your end and helps ensure your system is installed correctly. Another great feature of HornAir systems is that they come with a standard 1/2in OD push-to-pull fitting. This means the horns you hook up will get all the air they need.

An increasing number of people are using this for more than just blasting horns! With a system like the 8OB2, you can also use the air supply to:

  • Adjust tire pressure
  • Heavy duty pneumatic tool use
  • Inflate water toys and safety gear
  • Supply air to load leveling bags
  • Supply air for differential lockers
  • Blow up kids toys
  • Supply air to air suspension
  • And lots more!

RECOMMENDED FOR USE WITH THE FOLLOWING:

Shocker S4 train horns (part number: AH-S4)
- Outlaw train horns (part number AH-C3B)
Nathan Airchime series train horns (part number: AH-P3, AH-P5, AH-K3, AH-K5)


PSI CFM A
0 4.25
0
10 4.25
25.5
20 4.25
28
30 4.25
29.2
40 3.22
30.5
50 3.13
31.8
60 3.13
32.9
70 2.95
33.2
80 2.87
34
90 2.66
34.4
100 2.47
34.9
110 2.36
35
120 2.21
35
130 2.08
35
140 1.97
34.9
150 1.83
34.9

* Supply voltage: 13.8 Volts

  • Designed for extreme train horns
  • All-inclusive train horn air solution!
  • Top-end 150 PSI compressor perfect for train horns
  • Comes with standard 1/2" push-to-pull fitting
  • Complete fitting kit with safety valve & drain cock
  • All standard mounting hardware
  • Tank: HornAir 8 gallon tank
  • Tank Length: 32.5″ (825.5 mm)
  • Tank Diameter: 10.5″ (241.3 mm)
  • Tank Height: 12.5″ (317.5 mm) (With Legs)
  • Tank Weight: 20 lb (9.07 Kg)
  • Compressor: Air Zenith OB2 air compressors
  • Voltage: 12 volts DC
  • Air Flow: 8.5 CFM at free flow
  • Max Amperage: 35 amps
  • Maximum Duty Cycle: 100% @ 200 PSI
  • Maximum Working Pressure: 200 PSI
  • Compressor Length: 13.0″ (330.2 mm)
  • Compressor Width: 6.0″ (152.4 mm)
  • Compressor Height: 7.50″ (190.5 mm)
