Viair 485C Air Compressor

(Constant Duty – 200 PSI / 2.24 CFM)

AC-485L

Rated 5.0 out of 5
1 Review

Add 40 Amp Compressor Wiring Kit Tooltip
This wiring kit comes with everything you would need to hook-up a Viair air compressor.
addons
+$29.99
Add Viair Air Compressor Bracket Tooltip
The Viair Air Compressor Bracket will allow you to mount your compressor upright and is compatible with Viair Compressor models 275C-485C.
addons
+$21.95
Add 110-150 PSI Pressure Switch with 40A Relay Tooltip
This Pressure Switch will automatically turn your compressor on when the pressure in your air tank falls below 110 PSI and turn it off when the pressure reaches 150 PSI.
addons
+$27.25
Add Cooling Fan Isolator Kit Tooltip
Isolate your Compressor, drastically cutting down on vibration, allowing your compressor to run quieter & cooler, & extending the duty cycle up you 25%!
addons
+$70.75
Add Gold Level Extended Warranty See price in cart
Add Platinum Level Extended Warranty See price in cart

One of the highest performing compressors that we carry, the Viair 485C Air Compressor is the compressor of choice for all of our top-of-the-line train horn kits and onboard air systems. That’s because the Viair 485C is the perfect marriage of performance and speed. The first compressor in its class to boast a duty cycle of 100% all the way up to 200 PSI, the Viair 485C can handle most pneumatic tasks you can throw at it, such as tire inflation, running air tools, powering suspension systems and powering the biggest and loudest horns we carry! Due to the Viair 485C sleek new head design, it doesn't need to sacrifice performance for speed, rocking recharge times of a fast-fill, while still giving you the constant duty dependability you need. The Viair 485C will recharge a 2.5-gallon tank from 165-200 PSI in just 1 minute and 15 seconds and recharge a 5-gallon tank from 165-200 PSI in just under two and a half minutes.

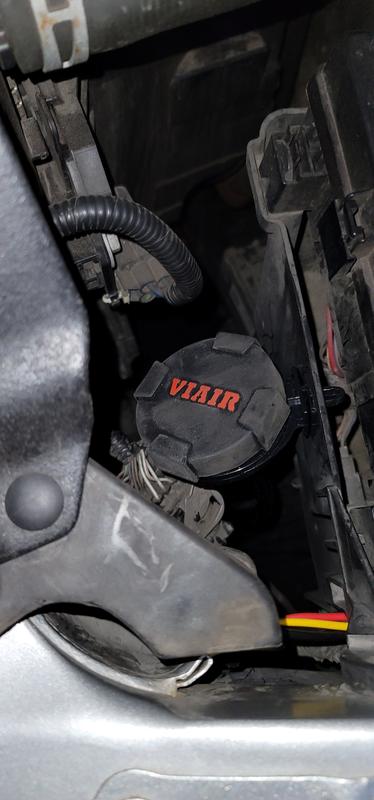

The Viair 485C Air Compressor will come complete with a remote mountable intake filter assembly, or “Air Snorkel Kit”, allowing the air intake to be moved to use clean air even if the compressors are mounted in the way of debris, moisture, and other air system contaminants. Includes a standard 3/8″ NPT stainless steel braided leader hose with check valve and insulated wiring for fast installation.

The Viair 485C is featured in the Kits listed below:

- Conductor's Special 2485K - Conductor's Special 5485K
Nathan Airchime K5LA 5485K - HornAir 2485K Onboard Air System
- HornAir 5485K Onboard Air System - HornAir 8485K Onboard Air System
- Conductor's Special 2485 - Conductor's Special 5485
- HornAir 2485 Onboard Air System - HornAir 5485 Onboard Air system

This compressor does come with the option to add our 40 Amp Air Compressor Wiring Kit to it as well!

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI CFM A BAR LPM A
0 2.24 12 0 70.0 12
10 1.84 14 1.0 51.0 15
20 1.75 16 2.0 47.0 16
30 1.67 17 3.0 44.0 18
40 1.61 18 4.0 41.0 20
50 1.54 19 5.0 38.0 21
60 1.47 20 6.0 35.0 21
70 1.42 21 7.0 32.0 22
80 1.36 21 8.0 29.0 22
90 1.30 22 9.0 27.0 22
100 1.23 22 10.0 25.0 23
110 1.17 22 11.0 22.0 22
120 1.11 22 12.0 21.0 21
130 1.06 22 13.0 21.0 21
140 1.01 23 13.8 21.0 21
150 0.97 22
160 0.92 22
170 0.88 22
180 0.84 21
190 0.77 21
200 0.73 21

 * Supply Voltage: 13.8 Volts

2.5 GALLON TANK FILL RATE
0 to 200 PSI 4 min. 50 sec. (± 10 sec.)
165 to 200 PSI 1 min. 15 sec. (± 05 sec.)
5.0 GALLON TANK FILL RATE
0 to 200 PSI 9 min. 45 sec. (± 15 sec.)
165 to 200 PSI 2 min. 25 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

  • Permanent Magnetic Motor
  • Oil-less Design
  • High-Performance PTFE Piston Ring
  • Stainless Steel Valves
  • Moisture & Dirt Resistant
  • Gearless Direct Drive Motor
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • Stainless Steel 3/8" Braided Leader Hose
  • Remote Mount Intake Filter Assembly
  • Insulated Wiring with Connectors
  • Viair 485C Air Compressor
  • 3/8" NPT Braided Leader Hose & Check Valve
  • Remote Mount Two-Stage Air Filter
  • Replacement Filter Elements
  • 1 Year Manufactures Defect Warranty
  • Mounting Hardware
  • Part Number: AC-485K / AC-485L
  • Manufacturers Part Number: 48502 / 48500
  • Voltage: 12 Volts DC
  • Max Amperage: 20 amps
  • Maximum Duty Cycle: 100% @ 200 PSI
  • Maximum Pressure: 200 PSI
  • Max Tank Size: 5 Gallons
  • CFM @ 0 PSI: 2.24 CFM
  • Compressor Length: 10.63″ (270 mm)
  • Compressor Width: 4.1″ (104.14 mm)
  • Compressor Height: 6.44″ (163.57 mm)
  • Weight: 11.10 lb (5.01 Kg)
  • Money-Back Guarantee/Refund Policy
    All merchandise unless otherwise indicated may be returned within 30 days from the shipment arrival date for a refund. A Returned Merchandise Authorization (RMA) number is required for all returns. A 15% restocking fee may apply. Additional deductions may be made to reflect the products current market value. These terms apply to all refunds. Most products are shipped with a refund/replacement guarantee period unless otherwise noted in the product listing. Customers must inform HornBlasters.com of any order discrepancy within 7 days from the invoice date so that we may investigate and resolve the situation accordingly.
  • Warranty
    This product is backed by Viair's One-Year Manufacturer's Defect Warranty!
  • HornBlasters.com Satisfaction Guarantee
    HornBlasters.com offers our customers a 30-day satisfaction replacement or refund guarantee on all purchases, except when otherwise noted in the product listing.
  • Cross-Shipments
    HornBlasters.com will not cross-ship returned merchandise.
  • Physical Damage Policy
    Physical damage to any product purchased at HornBlasters.com will effectively void warranty coverage. Physical damage includes but is not limited to improper handling and/or any other type of damage sustained by irregular usage.

Warnings & Notices

Safety warning icon
Warning

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review

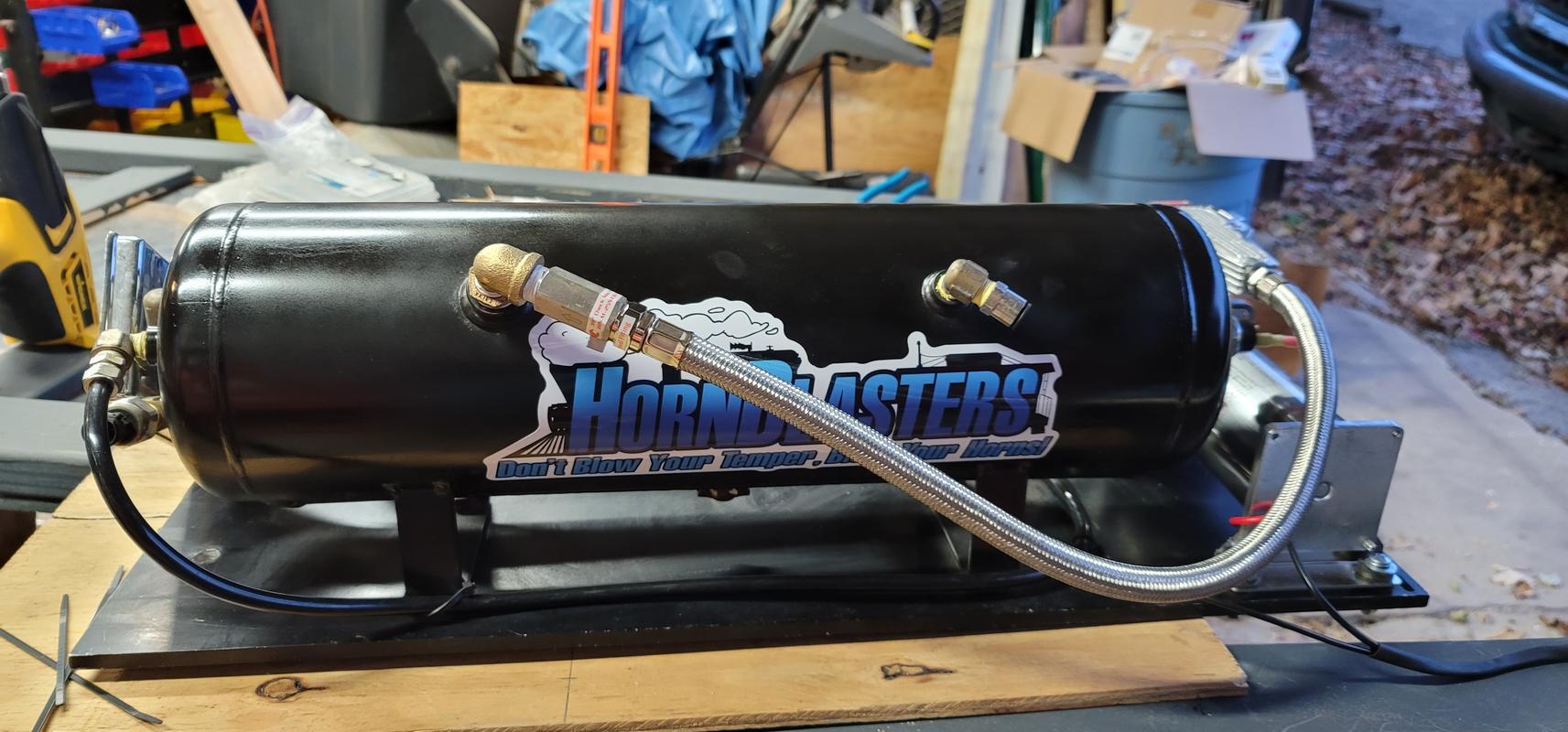

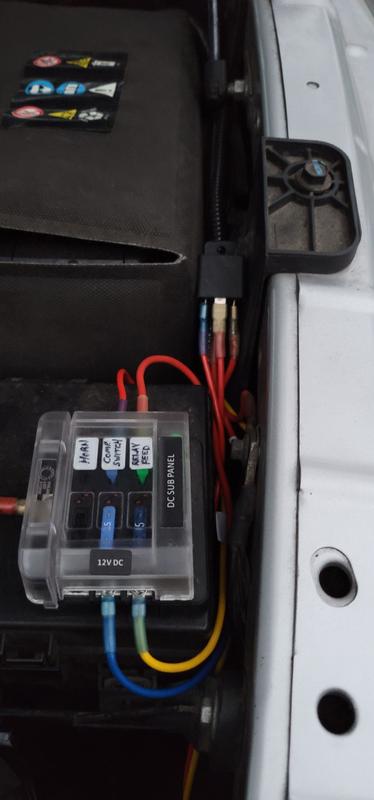

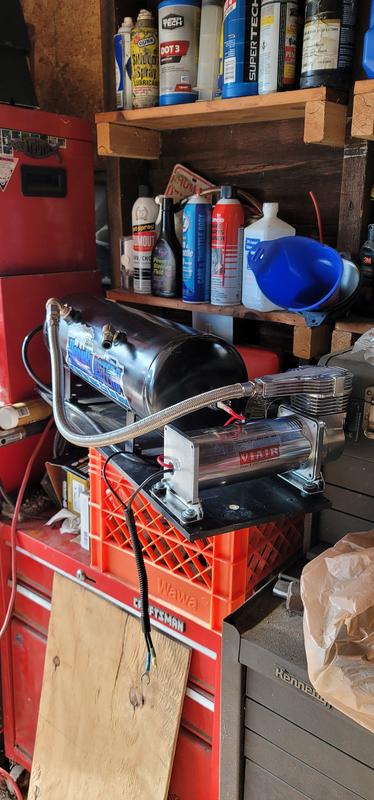

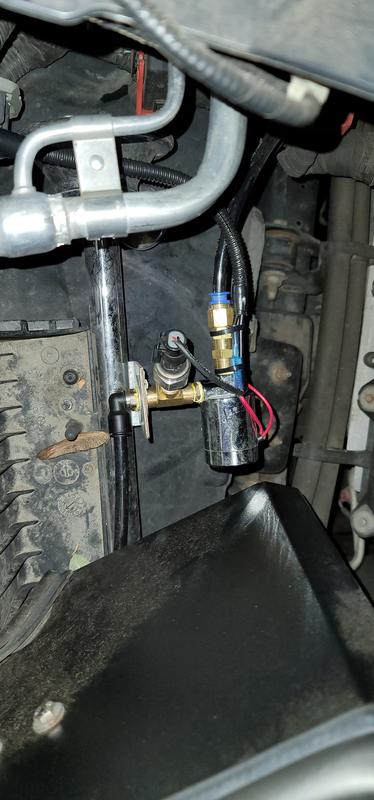

Reviewed by Peter D.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Great compressor.

Had a different viair. This compressors charged the tank fast and seems rather quiet. Work the purchase.
