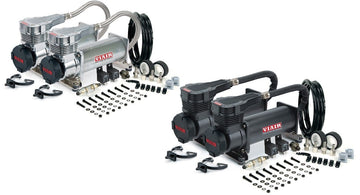

Viair Dual 485C Air Compressor Kit

(Constant Duty – 200 PSI / 3.82 CFM)

DC-485L

1 review

Add 40 Amp Dual Compressor Wiring Kit Tooltip
This wiring kit includes everything you need to wire dual Viair air compressors.
addons
+$49.99
Add Gold Level Extended Warranty See price in cart
Add Platinum Level Extended Warranty See price in cart

You won't find a more iconic duo than the Viair 485C Dual Pack. If you want the best for your onboard air kit, it doesn’t get much better than two of the most powerful compressors to come from Viair. Running two of Viair’s newest compressors gives you all the speed and performance you could hope for with a 100% duty cycle all the way up to 200 PSI and rapid refill times.  Able to power a tank up to 10 gallons in size, these two beasts have absolutely no problem powering an onboard air system to blast the biggest and loudest train horns, air up tires, run air suspension, or even air tools. Supplying 3.82 CFM while only pulling a combined 23 amps from your battery, the Viair 485C dual pack will recharge a 2.5-gallon tank from 165-200 PSI in just over a minute and recharge a 5-gallon tank from 165-200 PSI in only 2 minutes and 30 seconds. With their slick new head design, the Viair 485C dual pack run even quieter than before!

The Viair Dual 485C dual pack comes complete with a remote mountable intake filter assembly, or “Air Filter Snorkel Kit”, allowing you to relocate the air filter up to 6 feet away to keep it away from moisture and debris. It also includes a standard 3/8″ NPT stainless steel braided leader hose with check valve and insulated wiring for fast installation, as well as two heavy-duty 40-amp relays and a 165 PSI cut-on, 200 PSI cut-off heavy-duty pressure switch.

This compressor does come with the option to add our 40 Amp Dual Air Compressor Wiring Kit to it as well!

Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ is 10 ~ 11 ft. lbs. Recommended torque for 1/4″ and 3/8″ is 12 ~ 15 ft. lbs.

PSI CFM A BAR LPM A
0 3.82 23 0 110.0 23
10 3.51 26 1.0 93.0 27
20 3.27 30 2.0 84.0 31
30 3.05 32 3.0 75.0 35
40 2.90 35 4.0 71.0 37
50 2.73 37 5.0 65.0 39
60 2.61 38 6.0 61.0 41
70 2.45 40 7.0 55.0 41
80 2.34 41 8.0 50.0 42
90 2.24 41 9.0 45.0 42
100 2.09 41 10.0 41.0 42
110 1.94 42 11.0 39.0 41
120 1.87 42 12.0 34.0 40
130 1.72 42 13.0 32.0 40
140 1.64 42 14.0 29.0 39
150 1.55 42
160 1.48 41
170 1.37 41
180 1.29 41
190 1.22 40
200 1.13 39

 * Supply Voltage: 13.8 Volts

2.5 GALLON TANK FILL RATE
0 to 200 PSI 2 min. 20 sec. (± 05 sec.)
165 to 200 PSI 35 sec. (± 03 sec.)
5.0 GALLON TANK FILL RATE
0 to 200 PSI 4 min. 50 sec. (± 15 sec.)
165 to 200 PSI 1 min. 15 sec. (± 05 sec.)

* Supply Voltage: 13.8 Volts

  • Permanent Magnetic Motor
  • Oil-less Design
  • High-Performance PTFE Piston Ring
  • Stainless Steel Valves
  • Moisture & Dirt Resistant
  • Gearless Direct Drive Motor
  • Anodized Aluminum Alloy Cylinder
  • Automatic Reset Thermal Overload Protector
  • Mounting Plates with Vibration Isolators
  • Stainless Steel 3/8" Braided Leader Hose
  • Remote Mountable Intake Filter Assembly
  • Insulated Wiring with Connectors
  • Dual Viair 485C Air Compressors
  • 3/8" NPT Braided Leader Hose & Check Valve
  • Dual Viair 40 Amp Relays
  • Viair 165/200 PSI Pressure Switch
  • Installation Instructions
  • Remote Mount Two-Stage Air Filter
  • Replacement Filter Elements
  • Mounting Hardware
  • Part Number: DC-485L / DC-485K
  • Manufacturers Part Number: 48532 / 48542
  • Voltage: 12 Volts DC
  • Combined Max Amperage: 44 amps
  • Maximum Duty Cycle: 100% @ 200 PSI
  • Maximum Pressure: 200 PSI
  • Max Tank Size: 10 Gallons
  • CFM @ 0 PSI: 3.82 CFM
  • Each Length: 10.63″ (270 mm)
  • Each Width: 4.1″ (104.14 mm)
  • Each Height: 6.44″ (163.57 mm)
  • Weight: 22.10 lb (10.02 Kg)
